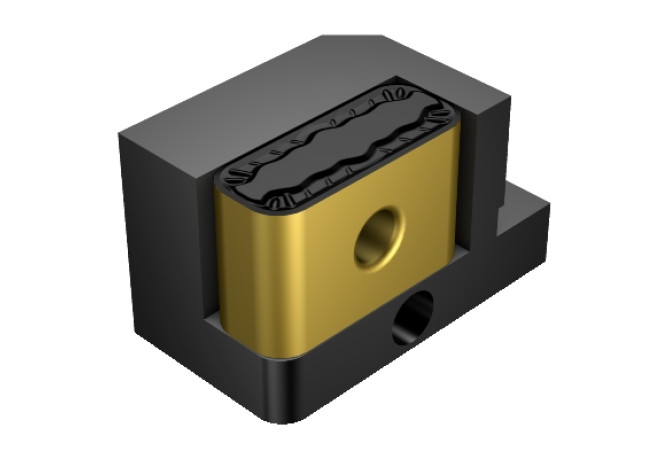

Главная Инструменты 314-01 - ISO-cartridge, type A R175.32-3223-30

R175.32-3223-30

R175.32-3223-30 R175.32-3223-30 R175.32-3223-30 R175.32-3223-30

R175.32-3223-30

SV - Sandvik-Coromant
Артикул: 5742466
В наличии
0 ₽
В корзину
Описание
Характеристики
A2A (Clearance angle major Pos. A)
0 Degree
B2A (Insert width Pos. A)
12 mm
BLDA (Tool style code Position A)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
19.05 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
D1A (Corner radius Pos. A)
3.969 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
KKC023R0185
DIN CSW1
LN3019992L
EPSR (Insert included angle)
90 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
KKC01C023R$$$$
ISO CSW1
ISO$LN3019002L*****
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
35 mm
LOC-01 ISO
ISO$LN3019002L*****
LOC-01-Connection-codes
J41 / J441 (Unknown 01)
LOC-01-DIN
LN3019992L
LOC-02 ISO
ISO$LN3019003L*****
LOC-02-Connection-codes
J41 / J441 (Unknown 02)
LOC-02-DIN
LN3019993L
LOC-03 ISO
KKC01C023R$$$$
LOC-03 (B Shank width)
22.6 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
KKC
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
023R
LOC-03 (H Shank height)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KKC023R0185
MIID (Master insert identification)
LNMX301940

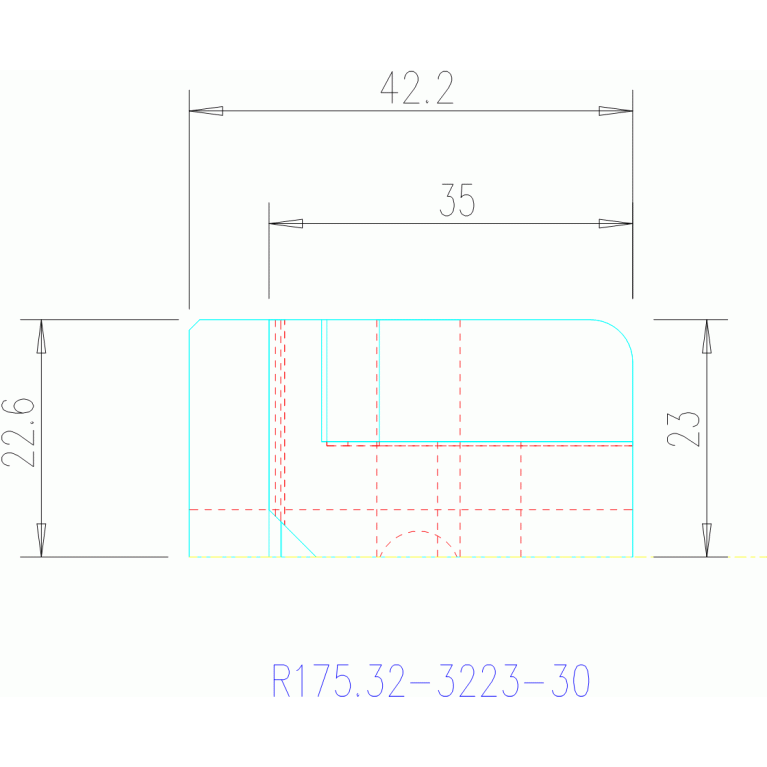

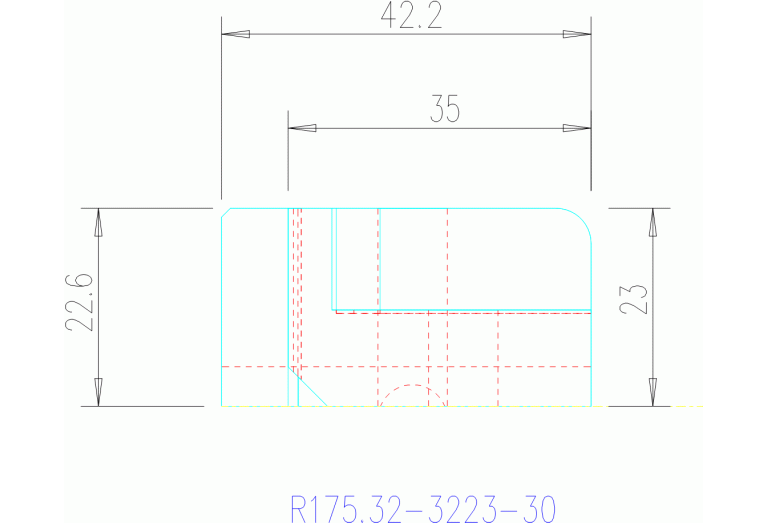

OAL (Overall length)
42.2 mm
WF (Functional width)
23 mm
Working process
No working processes available
WT (Weight of item)
0.162 kg
