L190.1-K080J031-T33
L190.1-K080J031-T33
Артикул:
5735023
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
0 Degree
B3A (Inscribed circle diameter Pos. A)
19.05 mm
BLDA (Tool style code Position A)
1
C1A (Insert thickness Pos. A)
9.525 mm
CEATC (Tool cutting edge angle type code)
S - Side lead angle
D1A (Corner radius Pos. A)
0 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
KKH03400185
DIN CSW1
TN3309993N
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
3 Degree
HAND (Cutting direction)
L - Left
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
KKH01C0340$$$$
ISO CSW1
ISO$TN3309003******
KAPR (Tool cutting edge angle)
15 Degree
LAMS (Inclination angle)
0 Degree

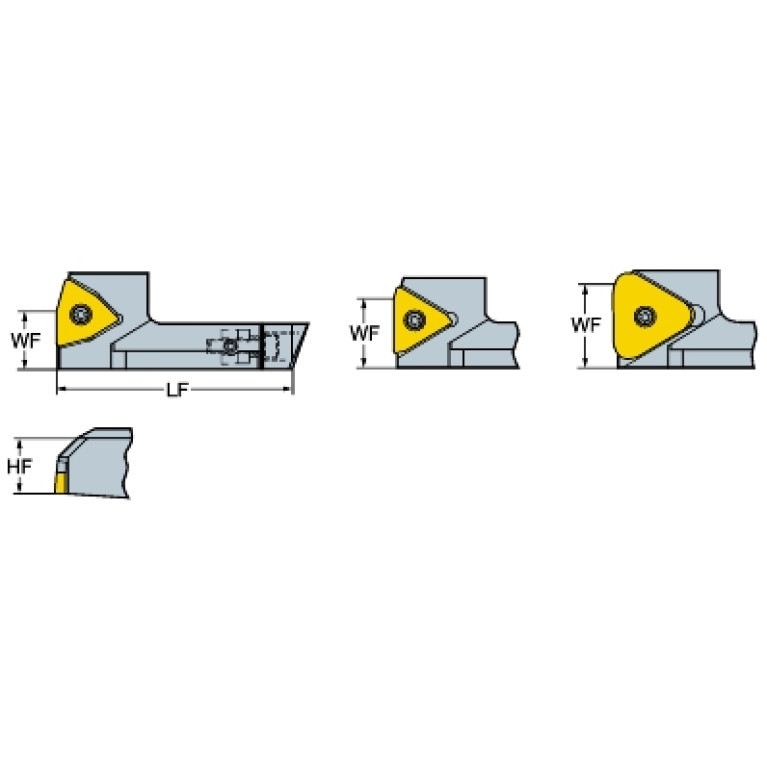

LF (Functional length)
92.6 mm
LOC-01 ISO
ISO$TN3309003******
LOC-01-Connection-codes
J41 / J441 (Unknown 01)
LOC-01-DIN
TN3309993N
LOC-03 ISO
KKH01C0340$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
KKH Cartridge connection
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0340
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KKH03400185
MIID (Master insert identification)
TNMX330931
OAL (Overall length)
92.6 mm
WF (Functional width)
39 mm
Working process
No working processes available
WT (Weight of item)
0.776 kg
