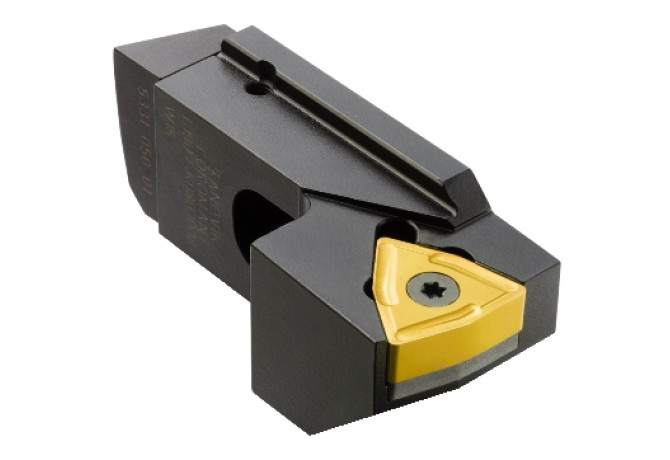

Главная Инструменты 314-01 - ISO-cartridge, type A L190.1-K075J055-T33

L190.1-K075J055-T33

Артикул: 5735086

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

B3A (Inscribed circle diameter Pos. A)

19.05 mm

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

9.525 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

D1A (Corner radius Pos. A)

0 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

KKH02450185

DIN CSW1

TN3309993N

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

3 Degree

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

KKH01C0245$$$$

ISO CSW1

ISO$TN3309003******

KAPR (Tool cutting edge angle)

15 Degree

LAMS (Inclination angle)

0 Degree

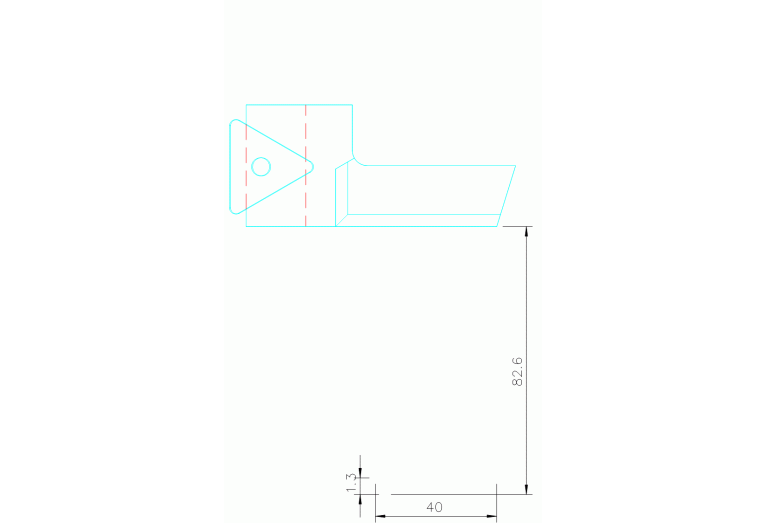

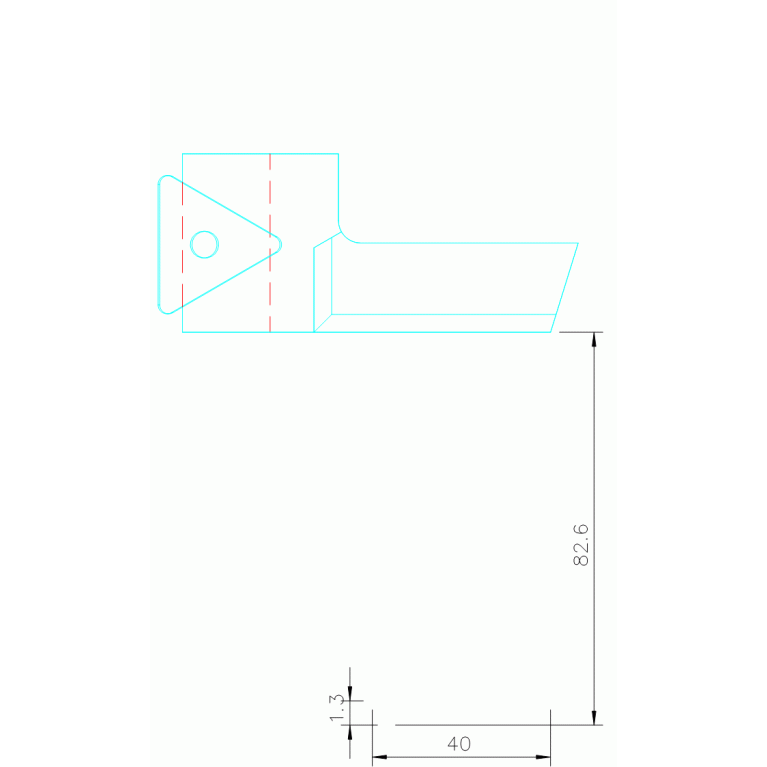

LF (Functional length)

92.6 mm

LOC-01 ISO

ISO$TN3309003******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

TN3309993N

LOC-03 ISO

KKH01C0245$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0245

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH02450185

MIID (Master insert identification)

TNMX330931

OAL (Overall length)

92.6 mm

WF (Functional width)

35.3 mm

Working process

No working processes available

WT (Weight of item)

0.064 kg
