Главная Инструменты 314-01 - ISO-cartridge, type A L175.32-3223-1911

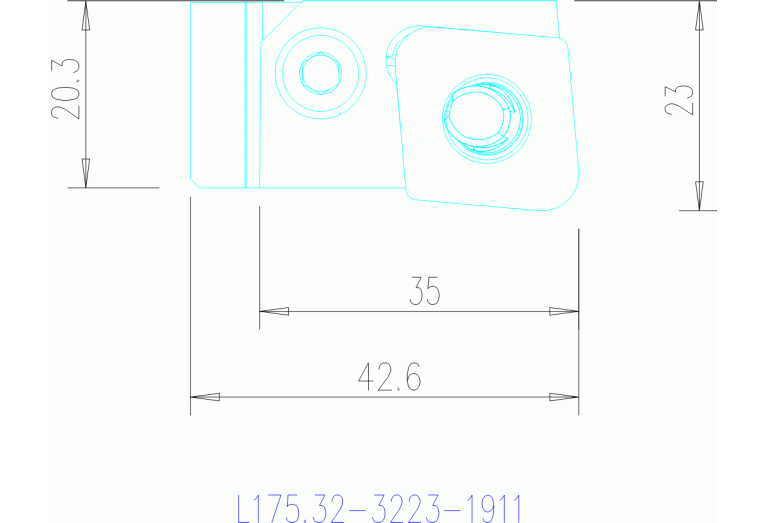

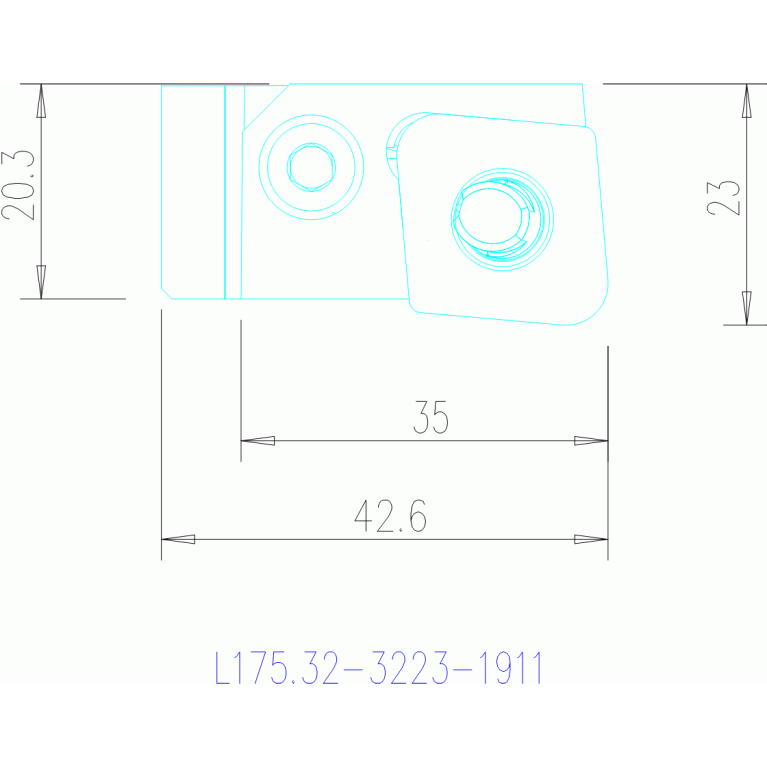

L175.32-3223-1911

Артикул: 5735106

В наличии

0 ₽

В корзину

Описание

Характеристики

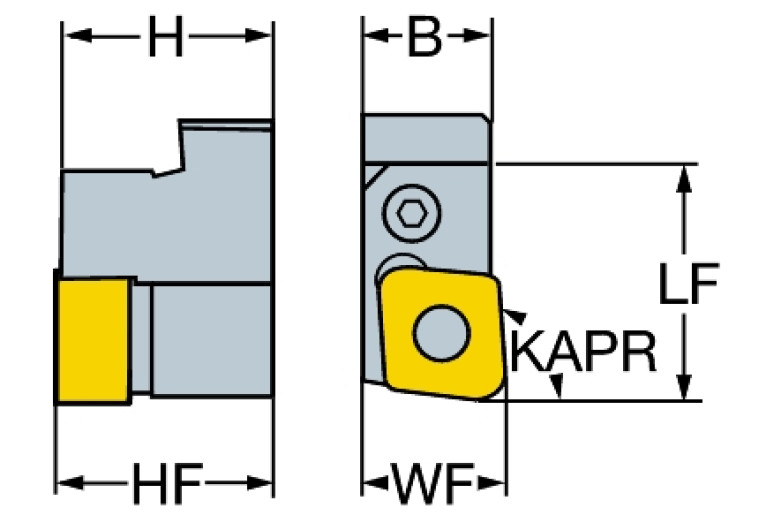

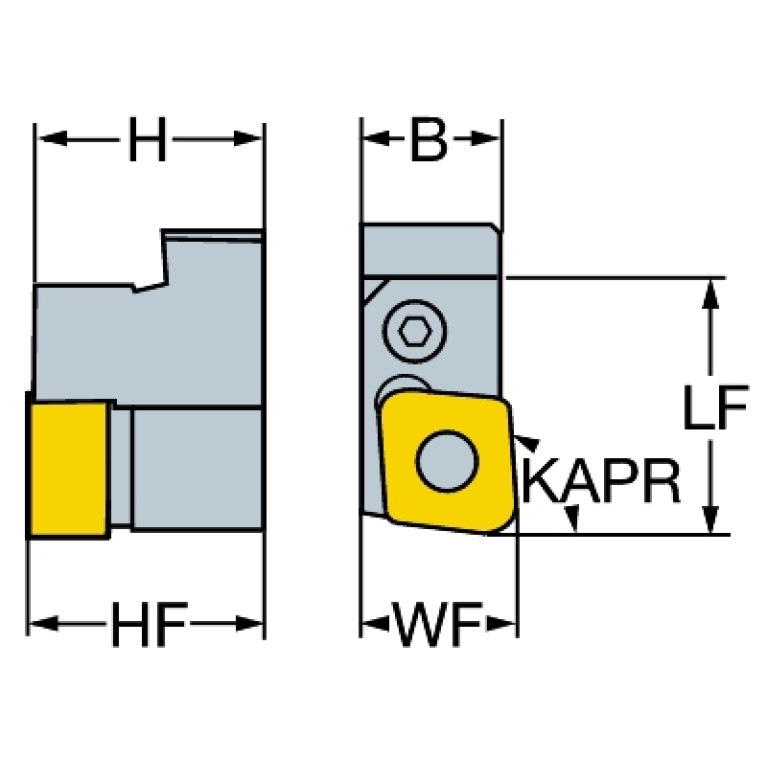

A2A (Clearance angle major Pos. A)

0 Degree

B3A (Inscribed circle diameter Pos. A)

19.05 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

11 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

D1A (Corner radius Pos. A)

3.969 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

KKC023L0185

DIN CSW1

CN1911992N

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKC01C023L$$$$

ISO CSW1

ISO$CN1911002******

KAPR (Tool cutting edge angle)

95 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

35.9 mm

LOC-01 ISO

ISO$CN1911002******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

CN1911992N

LOC-02 ISO

ISO$CN1911003******

LOC-02-Connection-codes

J41 / J441 (Unknown 02)

LOC-02-DIN

CN1911993N

LOC-03 ISO

KKC01C023L$$$$

LOC-03 (B Shank width)

22.6 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKC

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

023L

LOC-03 (H Shank height)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKC023L0185

MIID (Master insert identification)

CNMX191140

OAL (Overall length)

43.5 mm

WF (Functional width)

19.1 mm

Working process

No working processes available

WT (Weight of item)

0.17 kg
