Главная Инструменты 314-01 - ISO-cartridge, type A DWLNR 20CA-08

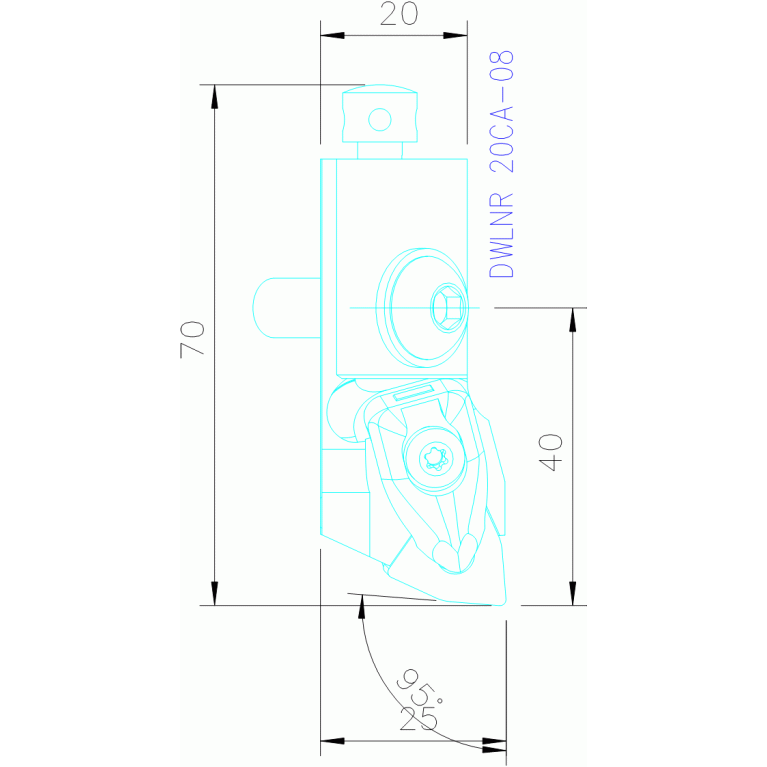

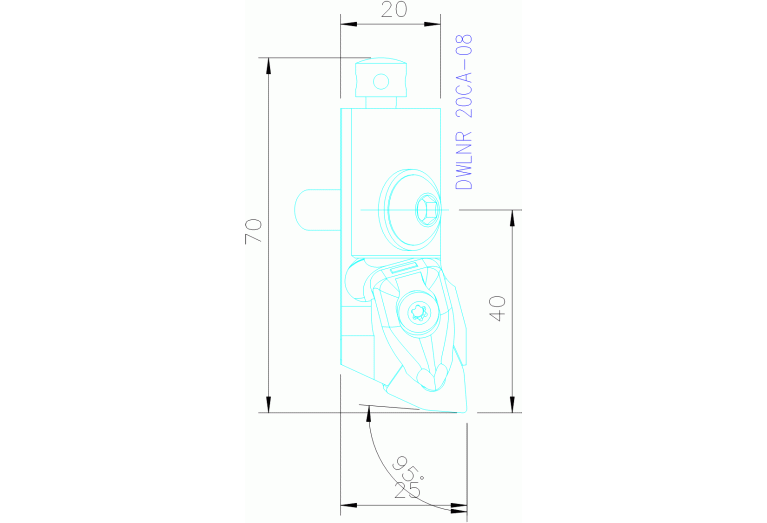

DWLNR 20CA-08

Артикул: 5734774

В наличии

0 ₽

В корзину

Описание

Характеристики

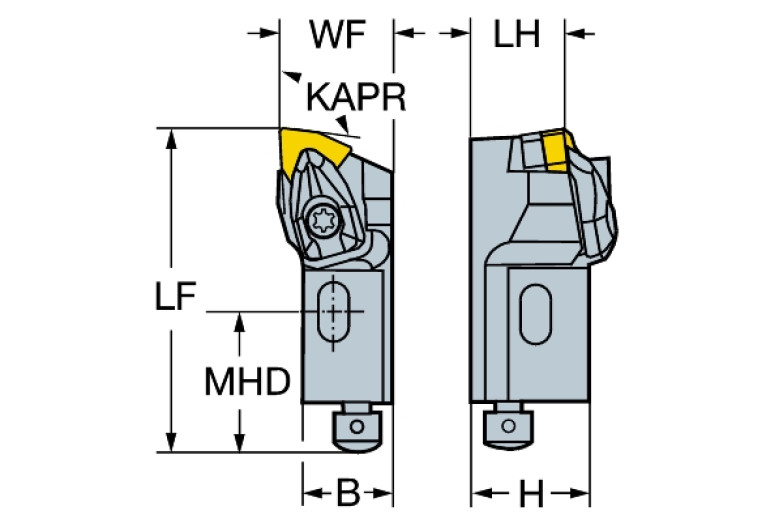

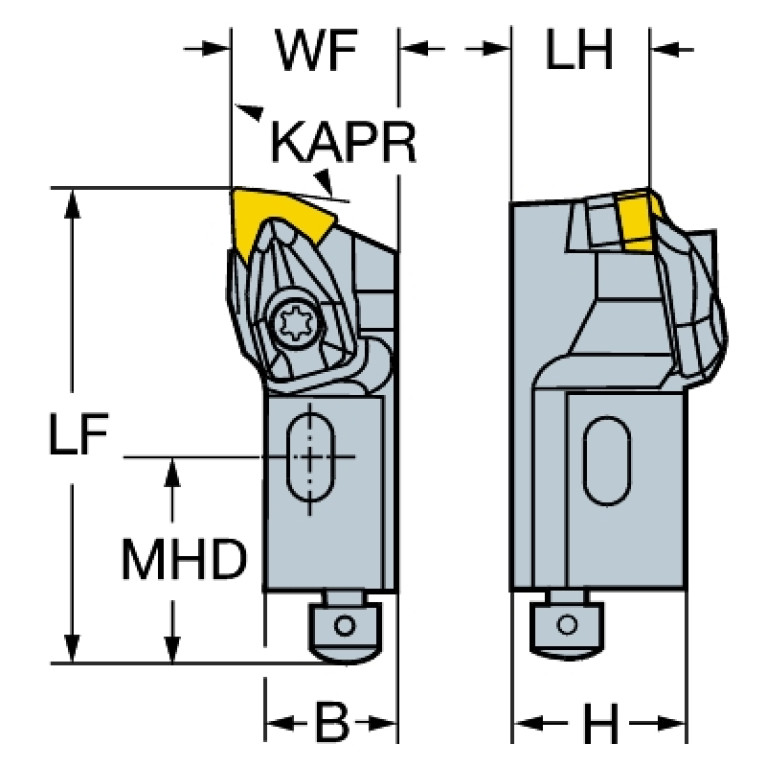

A2A (Clearance angle major Pos. A)

0 Degree

ASP (Adjusting screw protrusion)

10 mm

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

D1A (Corner radius Pos. A)

0.794 mm

DAH (Diameter access hole)

9 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

KKH020R0185

DIN CSW1

WN0804992N

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

-8 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

KKH01C020R$$$$

ISO CSW1

ISO$WN0804002******

KAPR (Tool cutting edge angle)

95 Degree

LAMS (Inclination angle)

-10 Degree

LF (Functional length)

70 mm

LOC-01 ISO

ISO$WN0804002******

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

WN0804992N

LOC-03 ISO

KKH01C020R$$$$

LOC-03 (B Shank width)

20 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

020R

LOC-03 (H Shank height)

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH020R0185

MHA (Mounting hole angle)

45 Degree

MHD (Mounting hole distance)

30 mm

MHH (Mounting hole height)

0 mm

MIID (Master insert identification)

WNMG080408

OAL (Overall length)

70 mm

WF (Functional width)

25 mm

Working process

No working processes available

WT (Weight of item)

0.15 kg
