Главная Инструменты 314-01 - ISO-cartridge, type A 266RKF-20CA-22

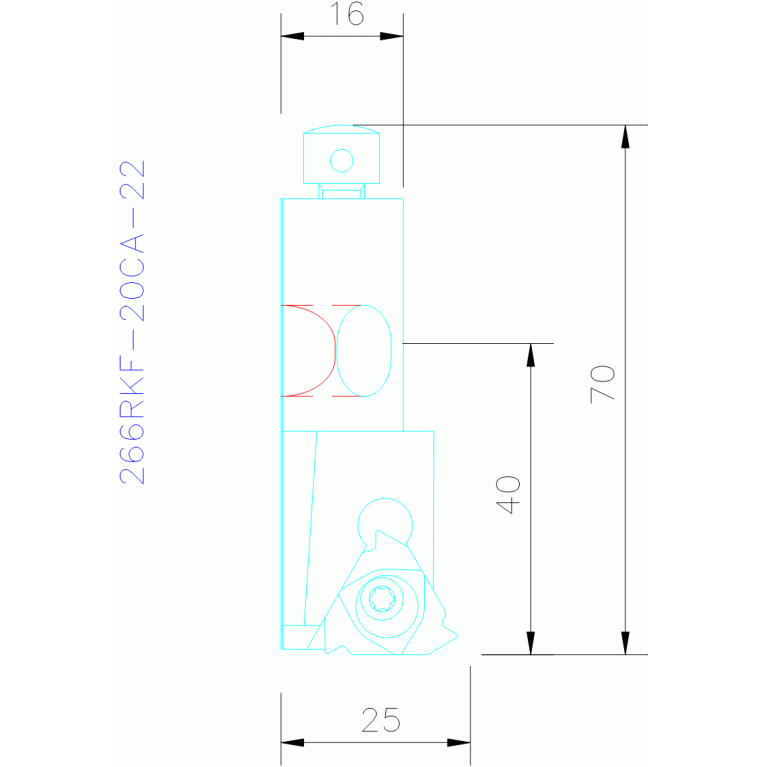

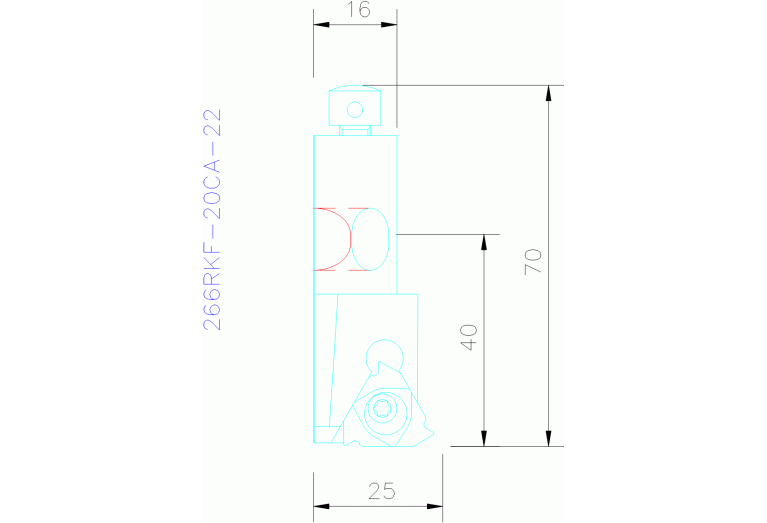

266RKF-20CA-22

Артикул: 5758037

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

ASP (Adjusting screw protrusion)

10 mm

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.563 mm

DAH (Diameter access hole)

9 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

KKH020R0185

DIN CSW1

SV-TC2205B0

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

-15 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

KKH01C020R$$$$

ISO CSW1

SV$$TC2205$$8$*B$$$

LAMS (Inclination angle)

-1 Degree

LF (Functional length)

70 mm

LOC-01 ISO

SV$$TC2205$$8$*B$$$

LOC-01-Connection-codes

J41 / J441 (Unknown 01)

LOC-01-DIN

SV-TC2205B0

LOC-02 ISO

SV$$TC2205$$8$*BI$$

LOC-02-Connection-codes

J41 / J441 (Unknown 02)

LOC-02-DIN

SV-TC2205BI

LOC-03 ISO

KKH01C020R$$$$

LOC-03 (B Shank width)

16 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKH Cartridge connection

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

020R

LOC-03 (H Shank height)

21 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKH020R0185

MHA (Mounting hole angle)

45 Degree

MHD (Mounting hole distance)

30 mm

MHH (Mounting hole height)

0 mm

MIID (Master insert identification)

266.RL-22..

OAL (Overall length)

70 mm

WF (Functional width)

25 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing

WT (Weight of item)

0.121 kg
