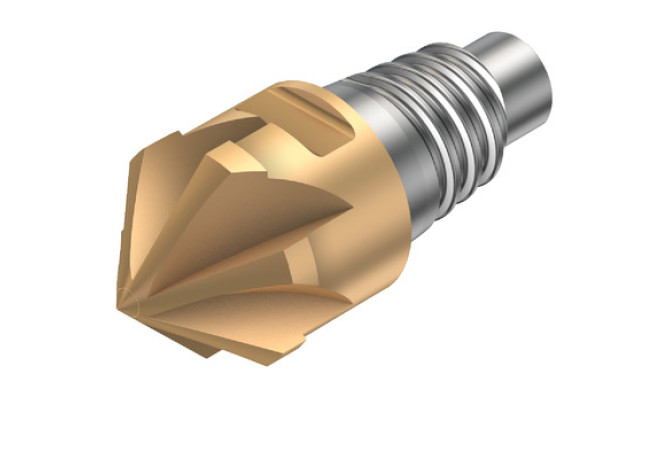

Главная Инструменты 303-03 - Angular end mill (V-groove) A316-10CM400-03760G 1030

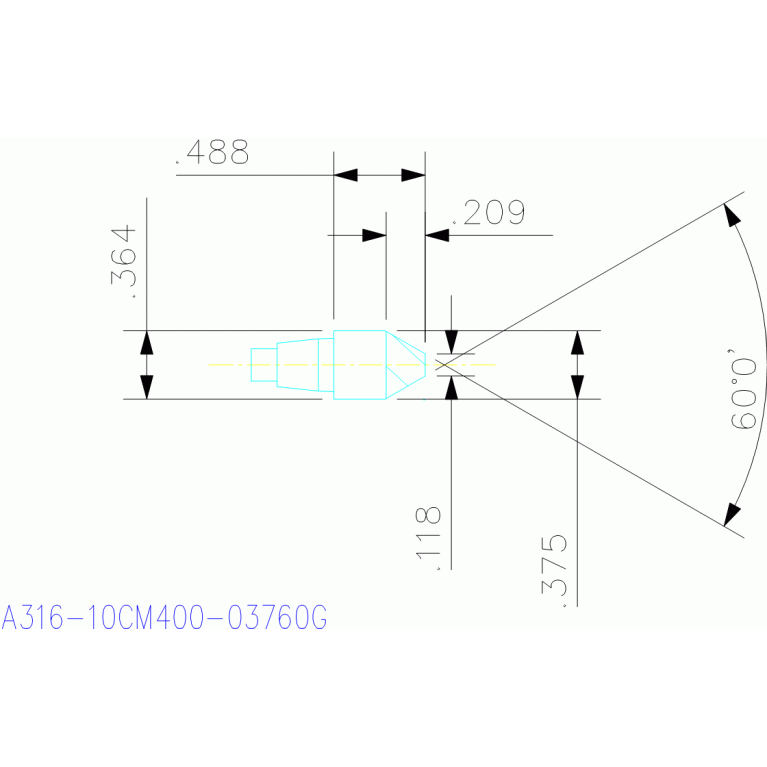

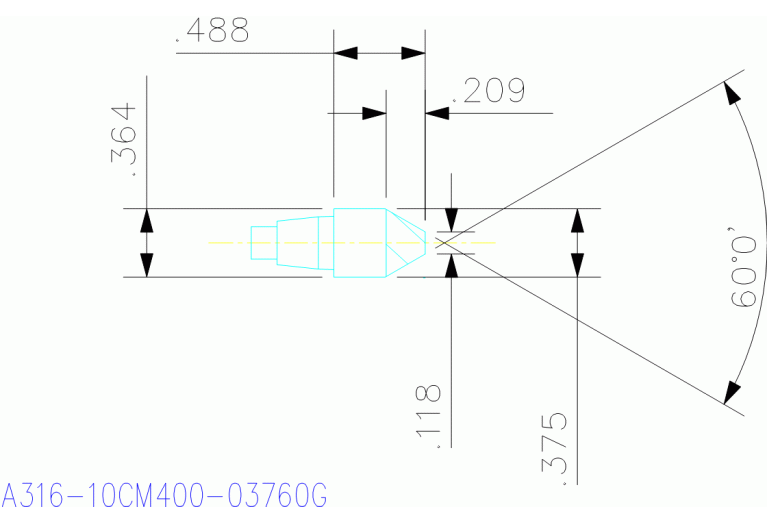

A316-10CM400-03760G 1030

A316-10CM400-03760G 1030 A316-10CM400-03760G 1030 A316-10CM400-03760G 1030 A316-10CM400-03760G 1030

A316-10CM400-03760G 1030

SV - Sandvik-Coromant
Артикул: 5722302
В наличии
0 ₽
В корзину
Описание
Характеристики
APMX (Depth of cut maximum)
5.65 mm
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
3 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
9.525 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SAC01000405
DN (Neck diameter)
9.25 mm
F71 (Number of corner designs)
1
GAMF (Rake angle radial)
1.5 Degree
GAMP (Rake angle axial)
1.5 Degree
GRDMFG (Grade manufacturers designation)
1030
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04B0100$$$$
KAPR (Tool cutting edge angle)
60 Degree
LF (Functional length)
12.4 mm
LOC-03 ISO
SAC04B0100$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0100
LOC-03 (DCONMS Diameter)
9.25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC01000405
LPR (Protruding length)
12.4 mm
Materials
P,M,K,S
OAL (Overall length)
23.6 mm
RPMX (Rotational speed maximum)
80000 1/min
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.023 kg
ZEFF (Face effective cutting edge count)
4
ZEFP (Peripheral effective cutting edge count)
4
