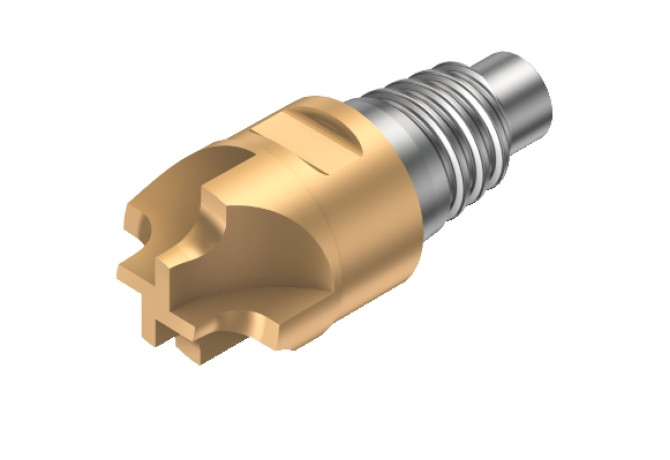

Главная Инструменты 303-08 - Rounded profile end mill, concave A316-12UM400-05040G 1030

A316-12UM400-05040G 1030

Артикул: 5782686

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TIALN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

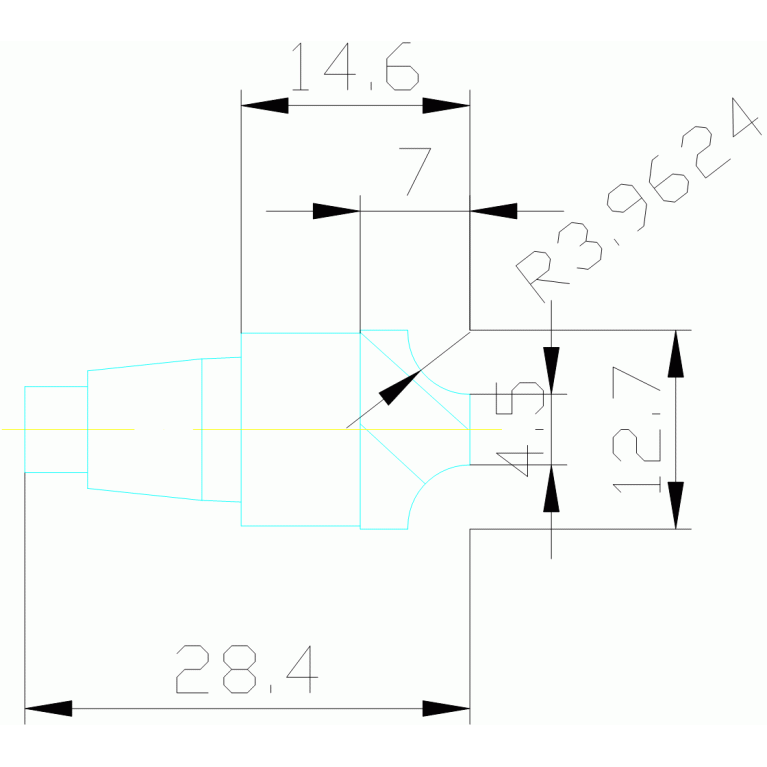

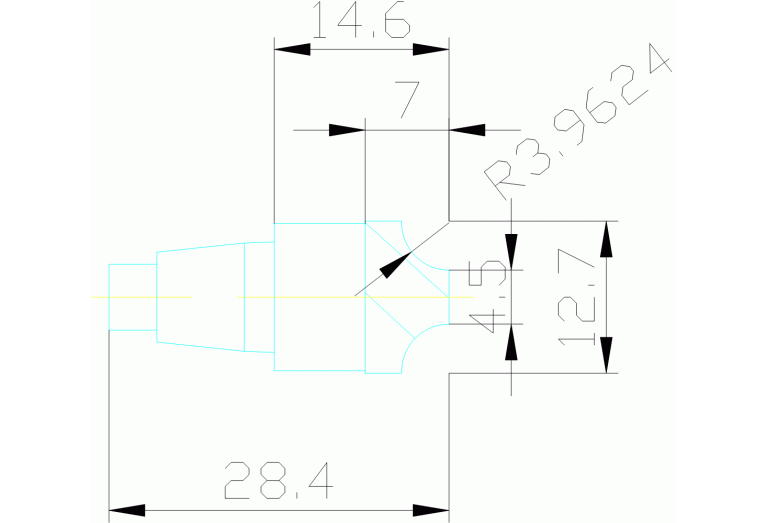

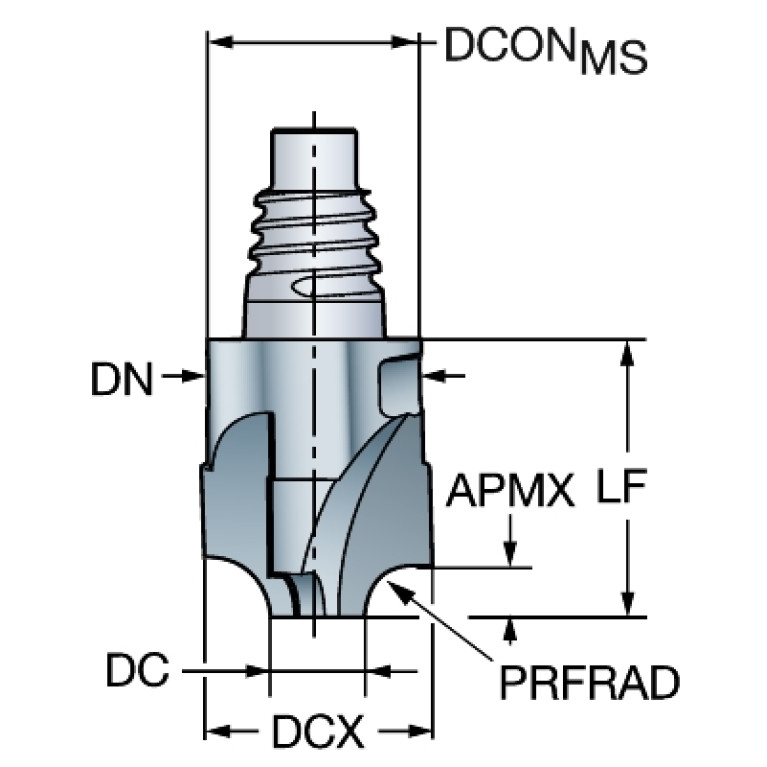

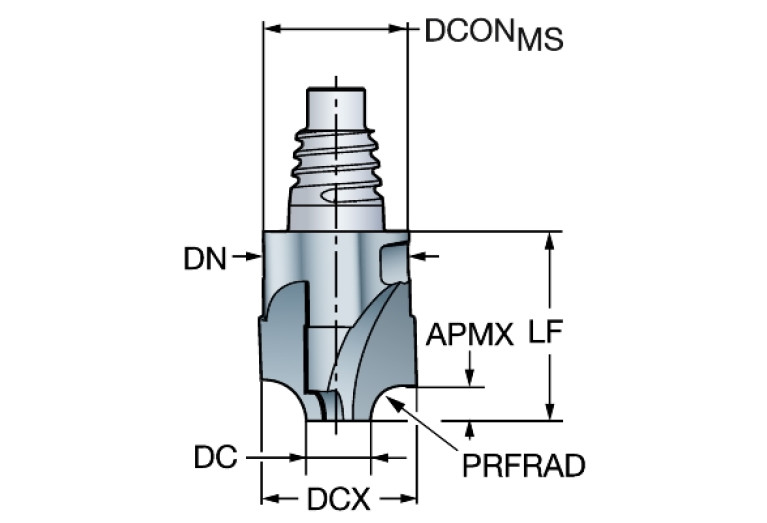

DC (Cutting diameter)

4.5 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

12.7 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SAC01200485

DN (Neck diameter)

12.3 mm

GAMF (Rake angle radial)

1.5 Degree

GAMP (Rake angle axial)

1.5 Degree

GRDMFG (Grade manufacturers designation)

1030

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04B0120$$$$

LF (Functional length)

14.6 mm

LOC-03 ISO

SAC04B0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12.3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01200485

LPR (Protruding length)

14.6 mm

MILTTY (Mill tool type ISO)

G - Side end mill (one or more indexable insert pro cutting edge) 90°

OAL (Overall length)

28.4 mm

PRFRAD (Profile radius 1)

3.96 mm

RPMX (Rotational speed maximum)

80000 1/min

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.036 kg

ZEFP (Peripheral effective cutting edge count)
