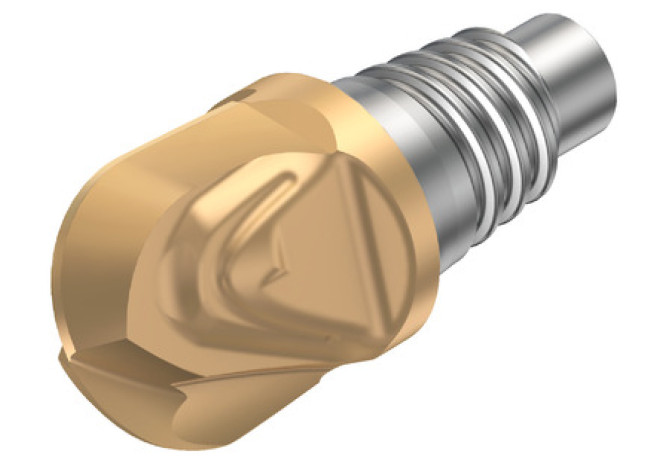

Главная Инструменты 303-06 - Ball-nosed end mill A316-10BM210-03750G 1030

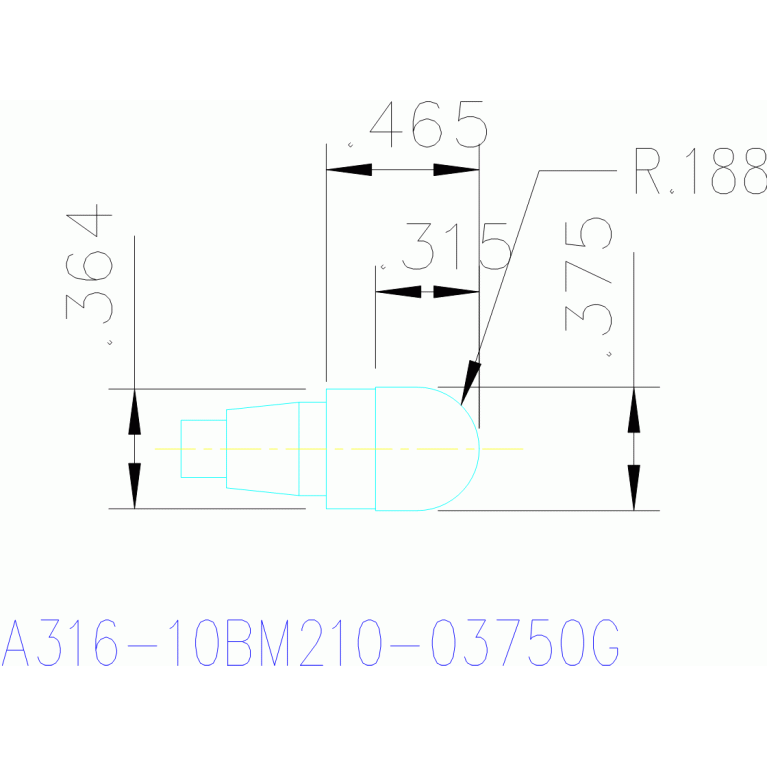

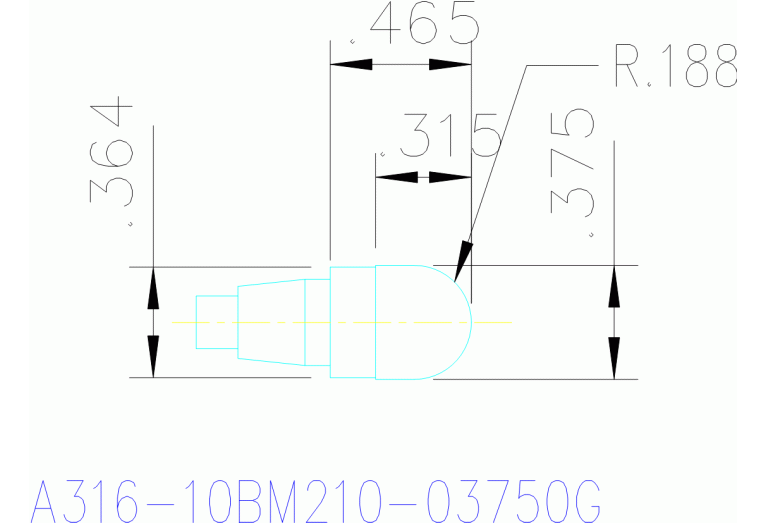

A316-10BM210-03750G 1030

Артикул: 5781744

В наличии

0 ₽

В корзину

Описание

Характеристики

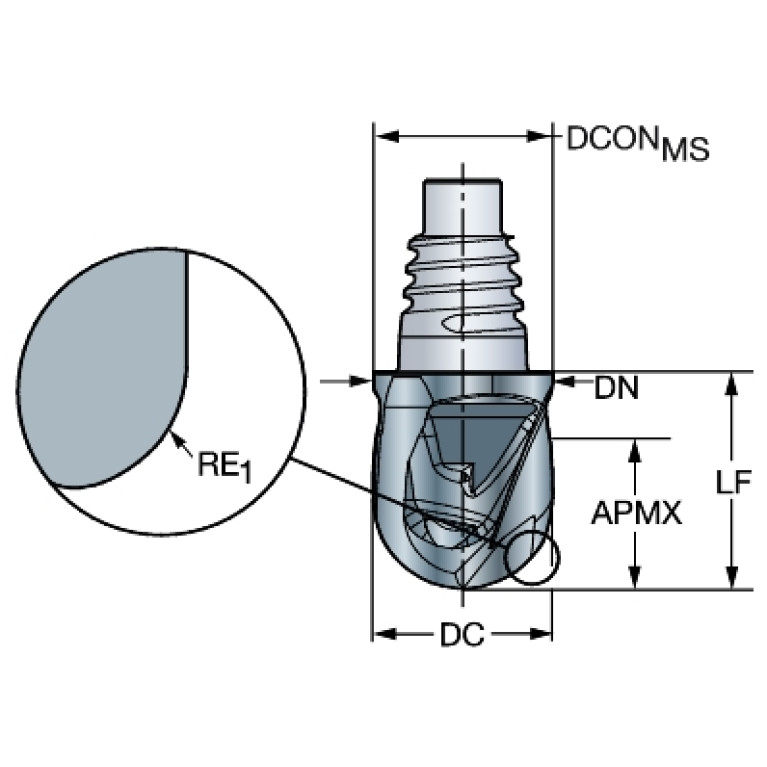

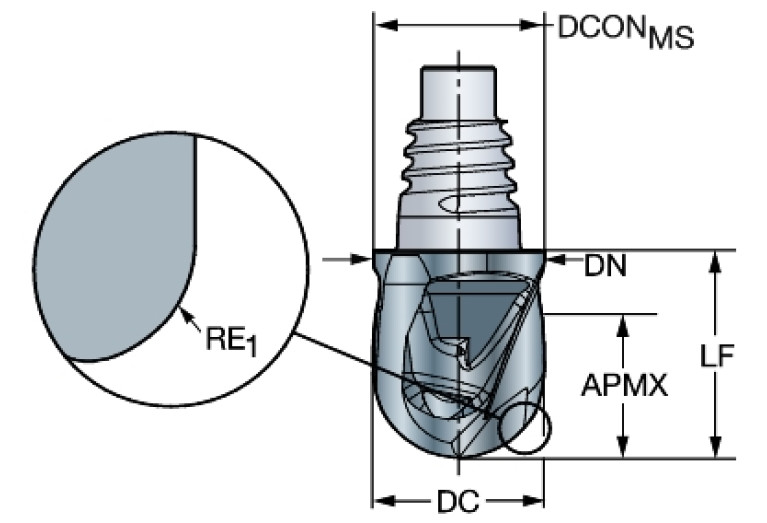

APMX (Depth of cut maximum)

8 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

9.526 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SAC01000405

DN (Neck diameter)

9.7 mm

FHA (Flute helix angle)

10 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

1.5 Degree

GRDMFG (Grade manufacturers designation)

1030

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04B0100$$$$

LF (Functional length)

11.8 mm

LH (Head length)

11.8 mm

LOC-03 ISO

SAC04B0100$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0100

LOC-03 (DCONMS Diameter)

9.25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01000405

LPR (Protruding length)

11.8 mm

Materials

P,M,K,S

OAL (Overall length)

23 mm

PRFRAD (Profile radius 1)

4.763 mm

RMPX (Ramping angle maximum)

2 Degree

RPMX (Rotational speed maximum)

80000 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.021 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
