Главная Инструменты 303-06 - Ball-nosed end mill 316-16BM210-16080G H10F

316-16BM210-16080G H10F

Артикул: 6056187

В наличии

0 ₽

В корзину

Описание

Характеристики

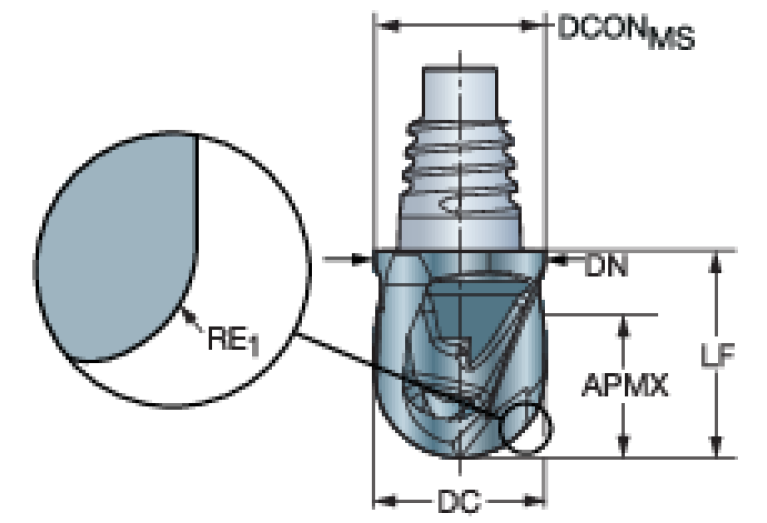

APMX (Depth of cut maximum)

13 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SAC01600485

DN (Neck diameter)

15.5 mm

FHA (Flute helix angle)

10 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

1 Degree

GRDMFG (Grade manufacturers designation)

H10F

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04A0160$$$$

LF (Functional length)

18.1 mm

LH (Head length)

18.1 mm

LOC-03 ISO

SAC04A0160$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

15.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01600485

LPR (Protruding length)

18.1 mm

OAL (Overall length)

35.1 mm

PRFRAD (Profile radius 1)

8 mm

RMPX (Ramping angle maximum)

15 Degree

RPMX (Rotational speed maximum)

80000 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.055 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
