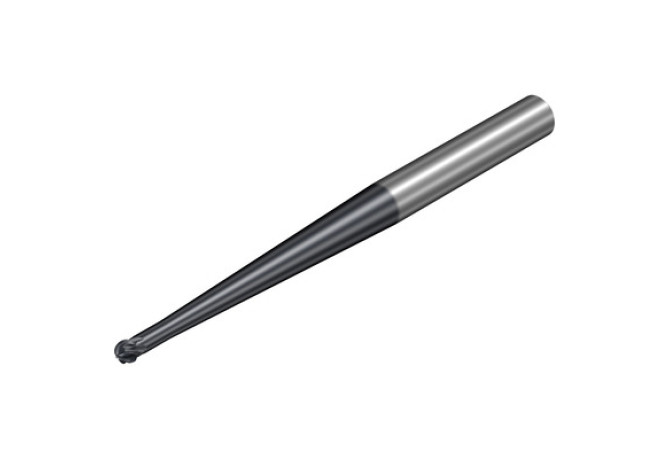

Главная Инструменты 303-06 - Ball-nosed end mill 2L486-0794-TI1270 T2CH

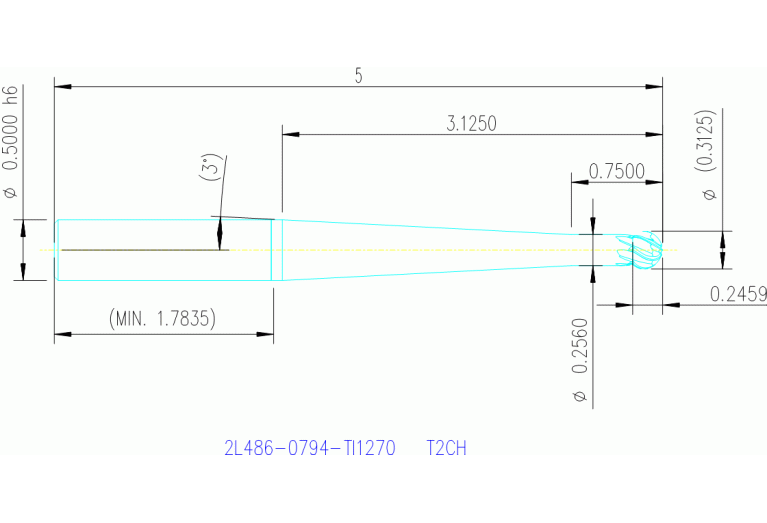

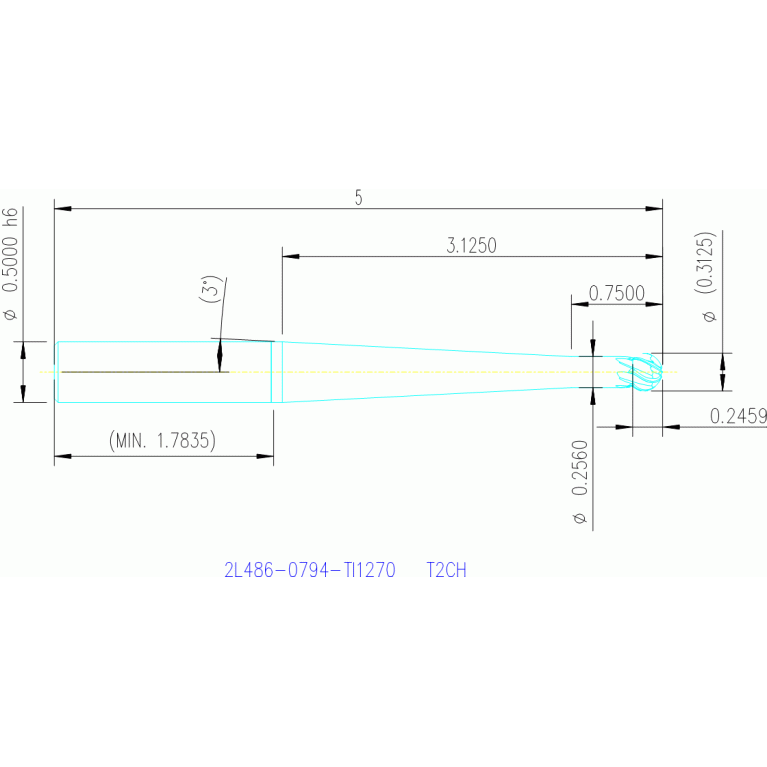

2L486-0794-TI1270 T2CH

Артикул: 8627113

В наличии

0 ₽

В корзину

Описание

Характеристики

APMX (Depth of cut maximum)

6.25 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

AlTiCrN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

7.938 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL05000125

DN (Neck diameter)

6.5 mm

FHA (Flute helix angle)

30 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

1.5 Degree

GAMP (Rake angle axial)

7 Degree

GRDMFG (Grade manufacturers designation)

T2CH

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01R5000h$06

LF (Functional length)

127 mm

LN (Neck length)

17.805 mm

LOC-03 ISO

ZYL01R5000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

12.7 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000125

LPR (Protruding length)

81.7 mm

LS (Shank length)

45.3 mm

LU (Usable length)

19.05 mm

Materials

P,M,S

OAL (Overall length)

127 mm

PRFRAD (Profile radius 1)

3.969 mm

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.161 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
