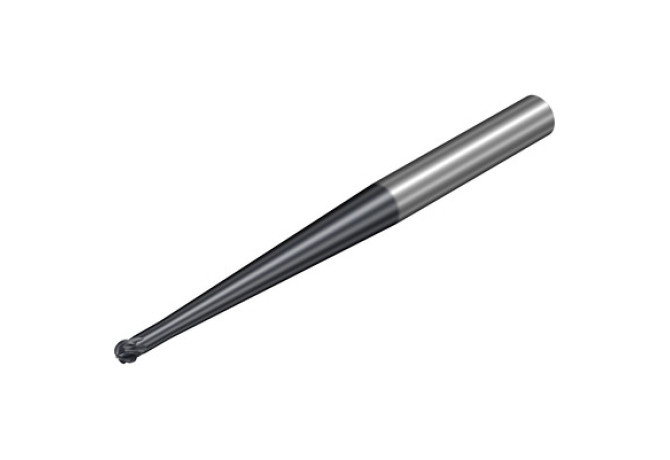

Главная Инструменты 303-06 - Ball-nosed end mill 2L486-0400-TI0800 T2CH

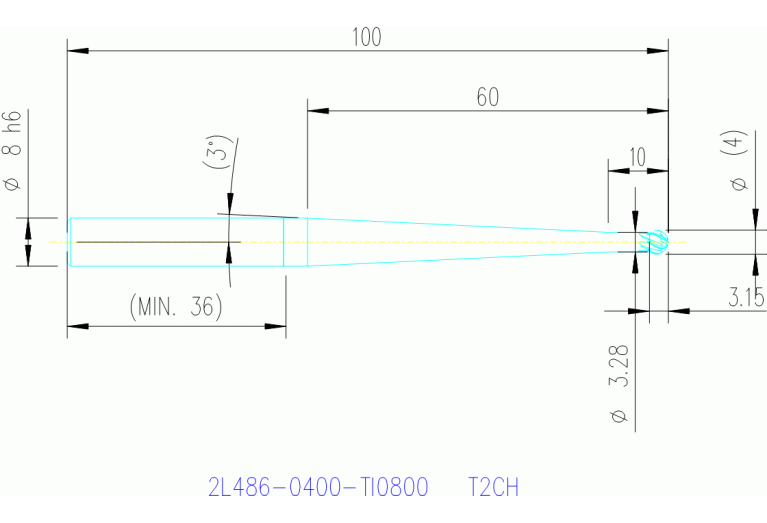

2L486-0400-TI0800 T2CH

Артикул: 8627074

В наличии

0 ₽

В корзину

Описание

Характеристики

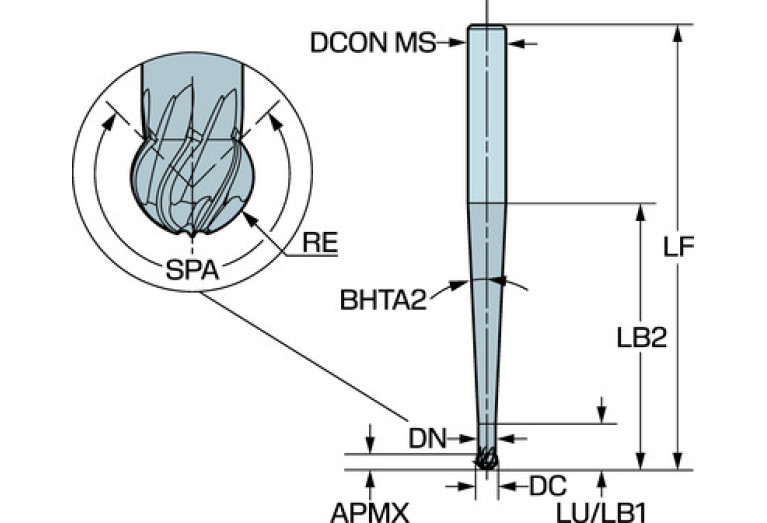

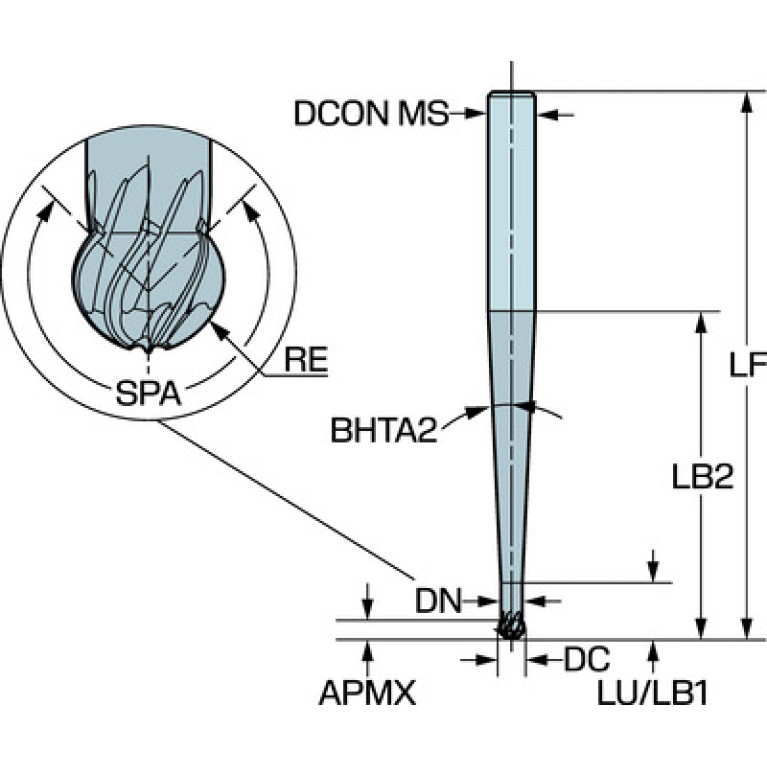

APMX (Depth of cut maximum)

3.15 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

AlTiCrN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL00800105

DN (Neck diameter)

3.28 mm

FHA (Flute helix angle)

30 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

1.5 Degree

GAMP (Rake angle axial)

7 Degree

GRDMFG (Grade manufacturers designation)

T2CH

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

LF (Functional length)

100 mm

LN (Neck length)

9.376 mm

LOC-03 ISO

ZYL01F8000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0080

LOC-03 (DCONMS Diameter)

8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR (Protruding length)

64 mm

LS (Shank length)

36 mm

LU (Usable length)

10 mm

Materials

P,M,S

OAL (Overall length)

100 mm

PRFRAD (Profile radius 1)

2 mm

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.049 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
