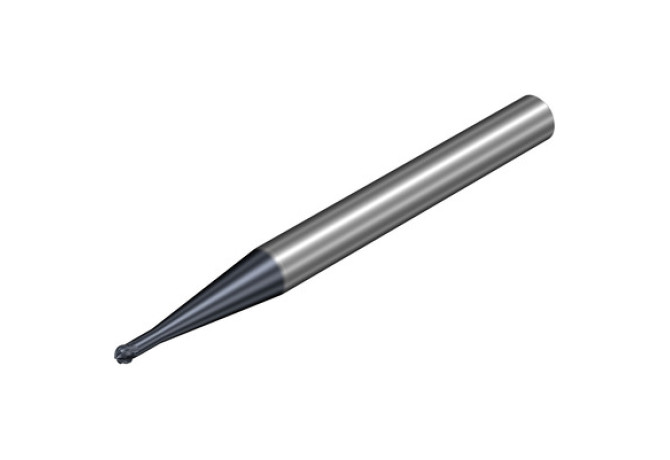

Главная Инструменты 303-06 - Ball-nosed end mill 2L465-0300-RA0800 R2AH

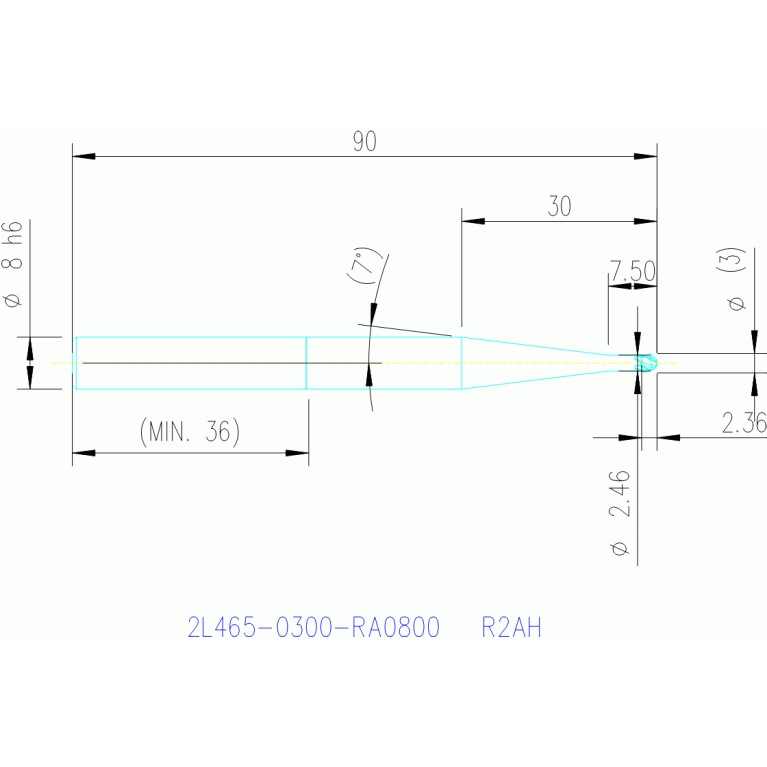

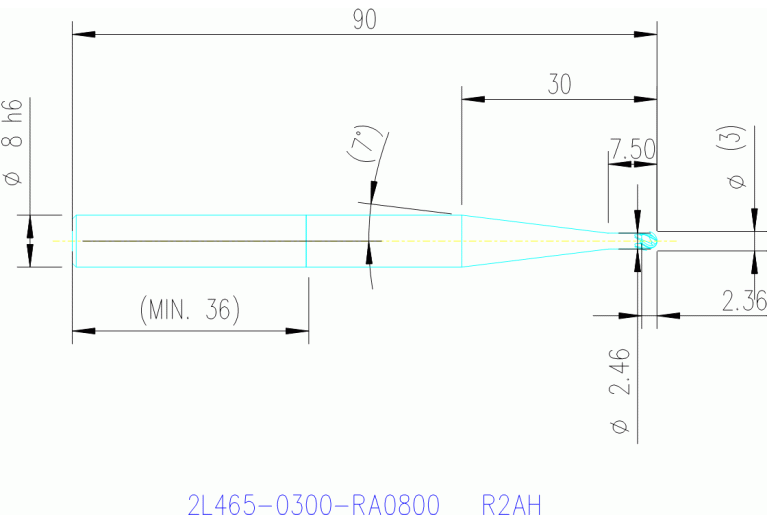

2L465-0300-RA0800 R2AH

Артикул: 8627087

В наличии

0 ₽

В корзину

Описание

Характеристики

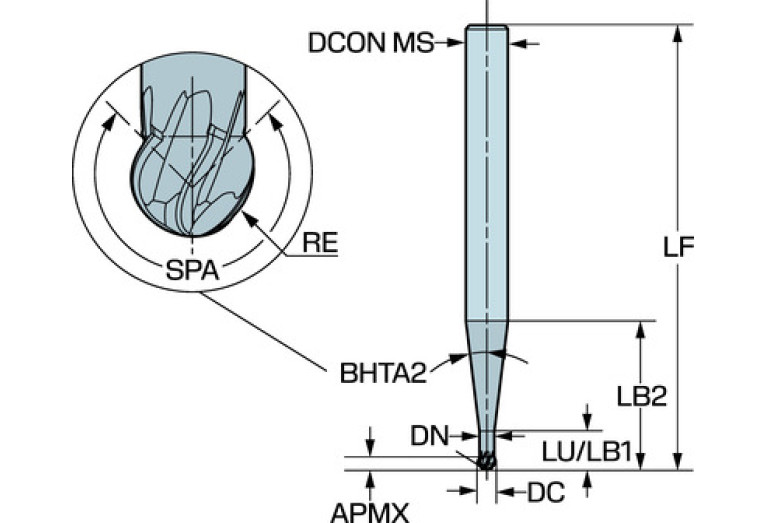

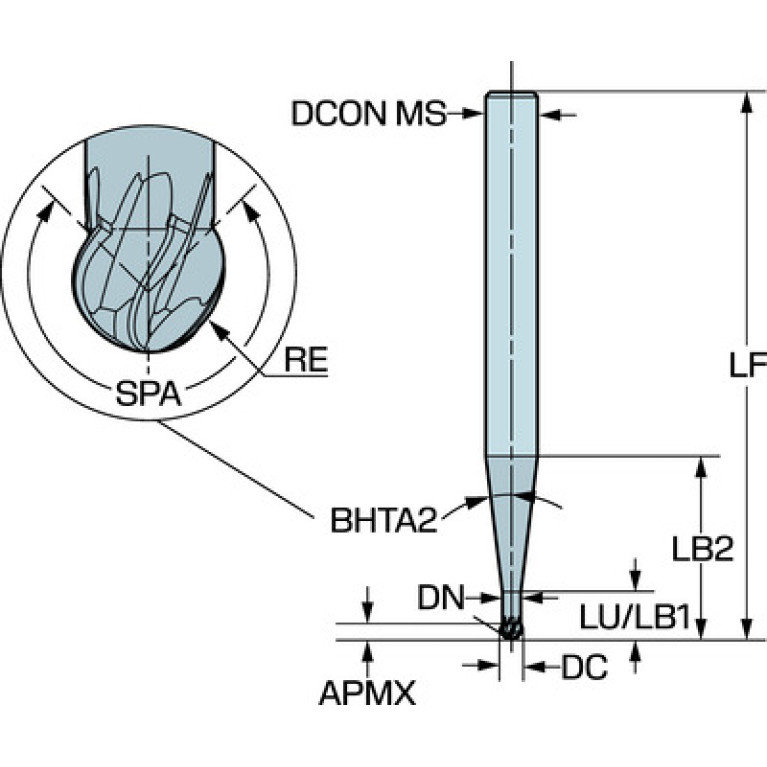

APMX (Depth of cut maximum)

2.36 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

TiAlSiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

3 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL00800105

DN (Neck diameter)

2.46 mm

FHA (Flute helix angle)

30 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

1.5 Degree

GAMP (Rake angle axial)

-2 Degree

GRDMFG (Grade manufacturers designation)

R2AH

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

LF (Functional length)

90 mm

LN (Neck length)

7.032 mm

LOC-03 ISO

ZYL01F8000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0080

LOC-03 (DCONMS Diameter)

8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR (Protruding length)

54 mm

LS (Shank length)

36 mm

LU (Usable length)

7.5 mm

Materials

K,S,H

OAL (Overall length)

90 mm

PRFRAD (Profile radius 1)

1.5 mm

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.052 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
