Главная Инструменты 307-02 - Non-centre cutting single row V-groove end mill MH20-AR032O32-06H

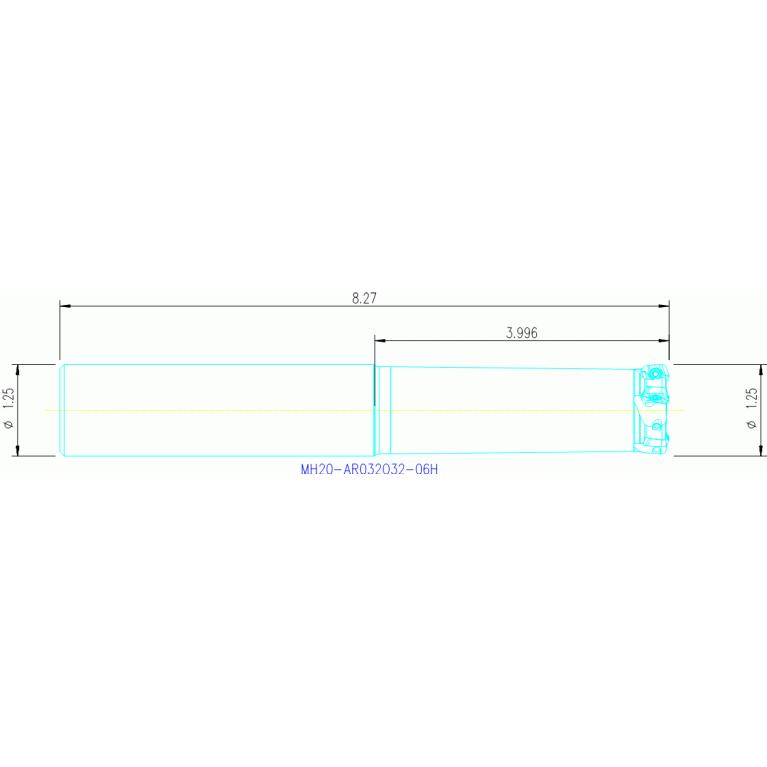

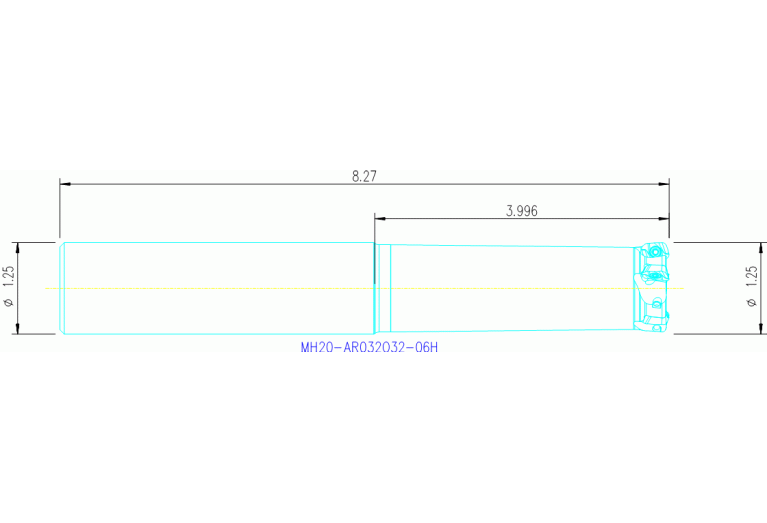

MH20-AR032O32-06H

Артикул: 8352783

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

12.3 Degree

APMX (Depth of cut maximum)

0.8 mm

AZ (Plunge depth maximum)

0.7 mm

B1A (Cutting edge length Pos. A)

5 mm

B2A (Insert width Pos. A)

6.4 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.42 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

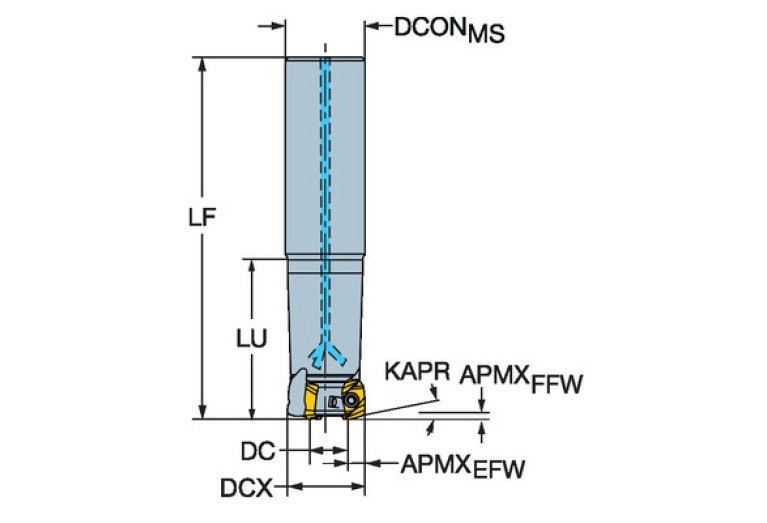

DC (Cutting diameter)

23.32 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

31.75 mm

Delivery state valid from

12/1/2023

DIN

ZYL12500135

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01S1250$$$$

KAPR (Tool cutting edge angle)

15 Degree

LF (Functional length)

210 mm

LOC-03 ISO

ZYL01S1250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12500135

LPR (Protruding length)

130.6 mm

MIID (Master insert identification)

MH20-060320..

OAL (Overall length)

210 mm

RMPX (Ramping angle maximum)

2.4 Degree

RPMX (Rotational speed maximum)

18500 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

1.145 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
