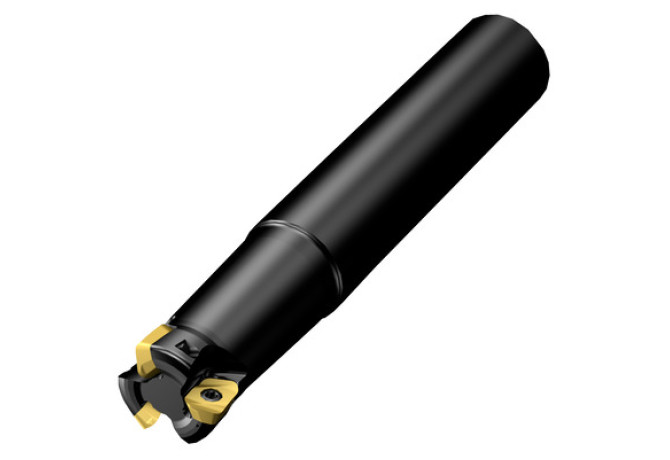

Главная Инструменты 307-02 - Non-centre cutting single row V-groove end mill MH20-AR025O25-08L

MH20-AR025O25-08L

Артикул: 8029455

В наличии

0 ₽

В корзину

Описание

Характеристики

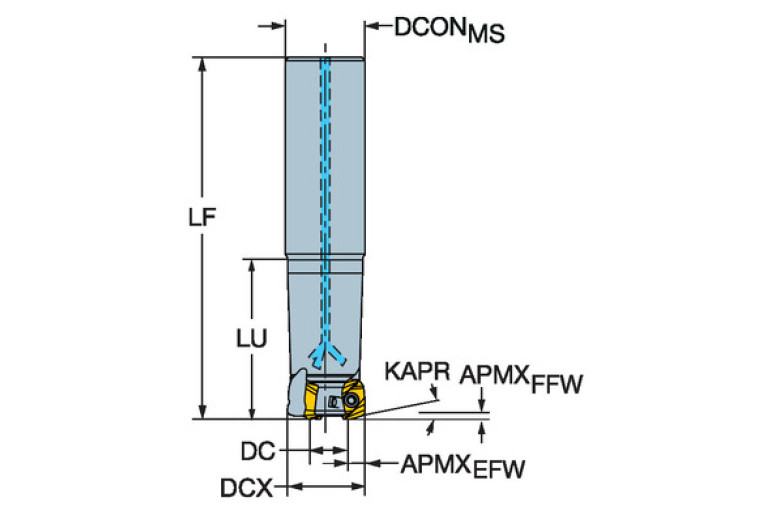

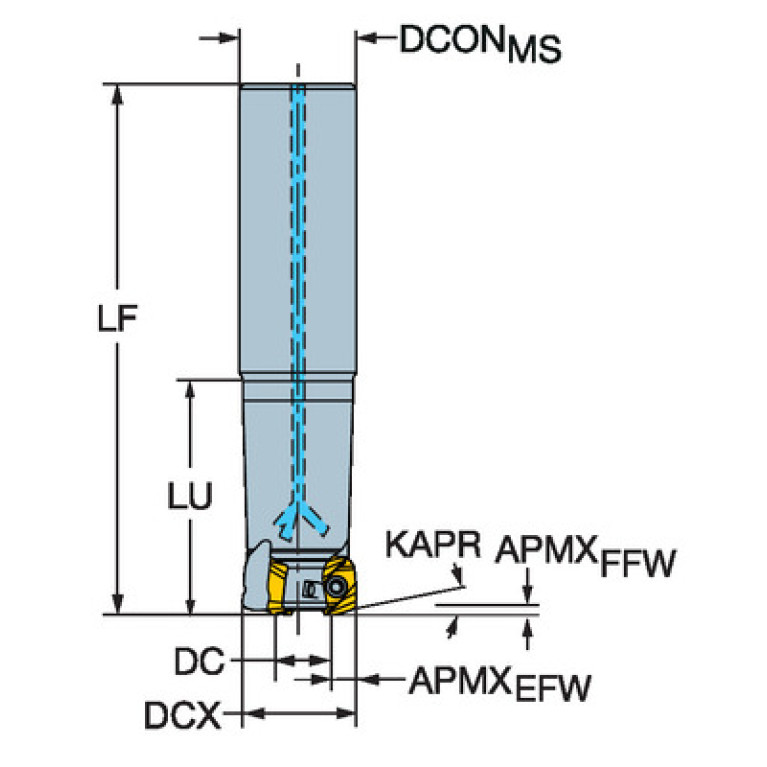

A2A (Clearance angle major Pos. A)

12.3 Degree

APMX (Depth of cut maximum)

1.2 mm

AZ (Plunge depth maximum)

0.9 mm

B1A (Cutting edge length Pos. A)

6.6 mm

B2A (Insert width Pos. A)

8.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.03 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

DC (Cutting diameter)

14.75 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

25.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL10000135

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01S1000$$$$

KAPR (Tool cutting edge angle)

15 Degree

LF (Functional length)

200 mm

LOC-03 ISO

ZYL01S1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000135

LPR (Protruding length)

137.5 mm

LU (Usable length)

100 mm

MIID (Master insert identification)

MH20-080425..

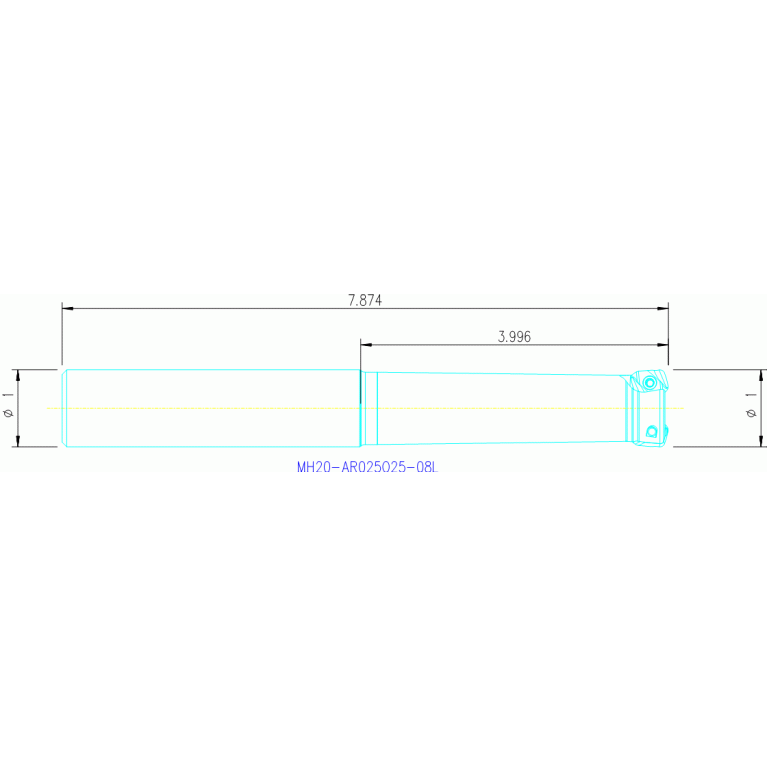

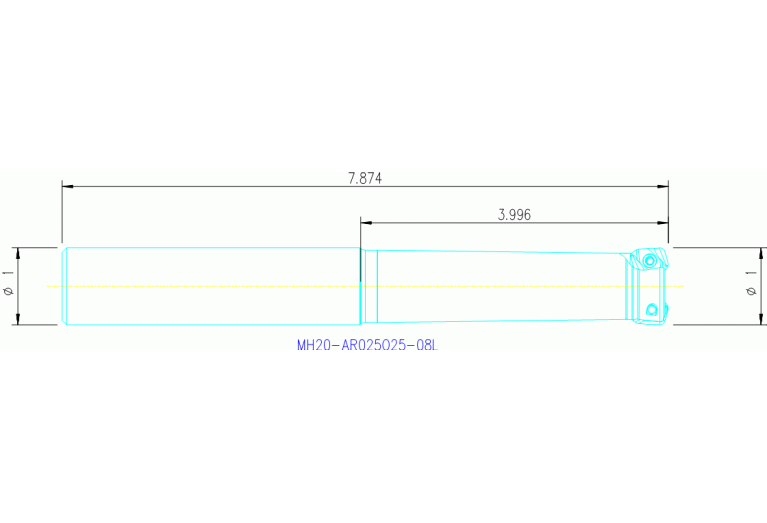

OAL (Overall length)

200 mm

RMPX (Ramping angle maximum)

5.5 Degree

RPMX (Rotational speed maximum)

18800 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

0.682 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
