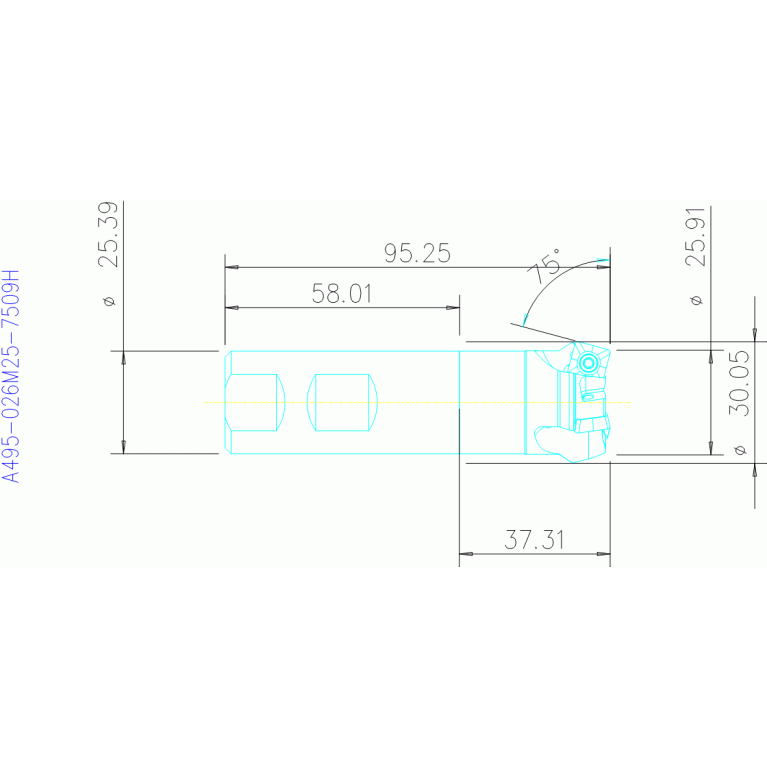

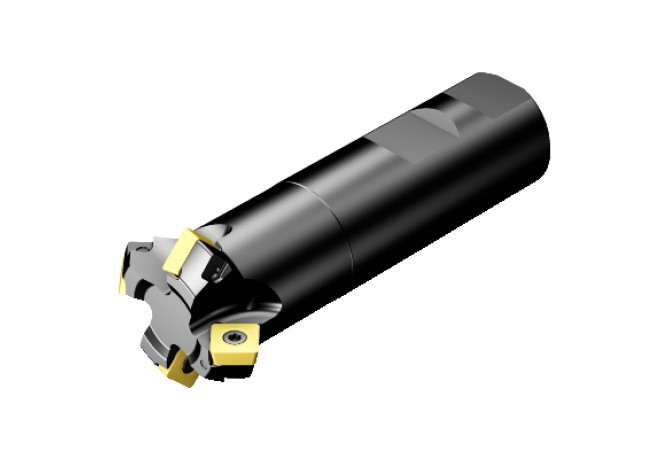

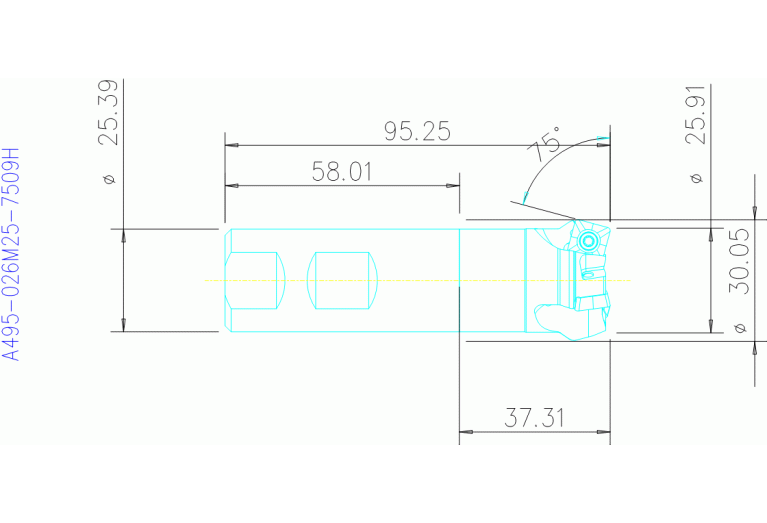

Главная Инструменты 307-02 - Non-centre cutting single row V-groove end mill A495-026M25-7509H

A495-026M25-7509H

Артикул: 6536288

В наличии

0 ₽

В корзину

Описание

Характеристики

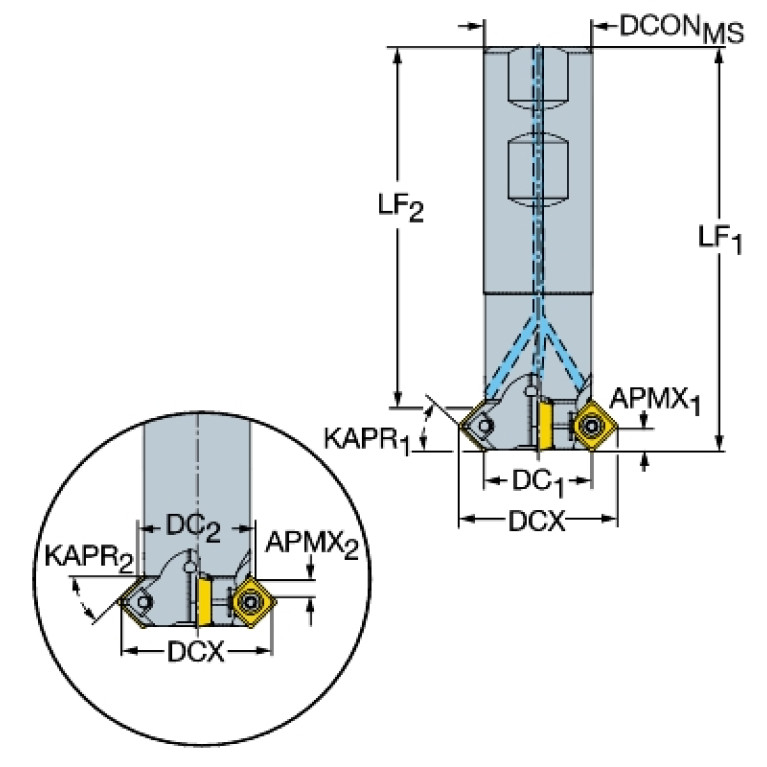

A1A (Cutting edge angle major Pos. A)

90 Degree

APMX (Depth of cut maximum)

7.74 mm

B3A (Inscribed circle diameter Pos. A)

9 mm

BD (Body diameter)

25.619 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.51 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

25.908 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

30.056 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL10001035

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1000h$06

KAPR (Tool cutting edge angle)

75 Degree

LOC-03 ISO

ZYL10S1000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR (Protruding length)

37.31 mm

MIID (Master insert identification)

495-09T3M-XL

OAL (Overall length)

95.249 mm

RPMX (Rotational speed maximum)

8000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.325 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
