Главная Инструменты 307-02 - Non-centre cutting single row V-groove end mill A415-25T12-07H

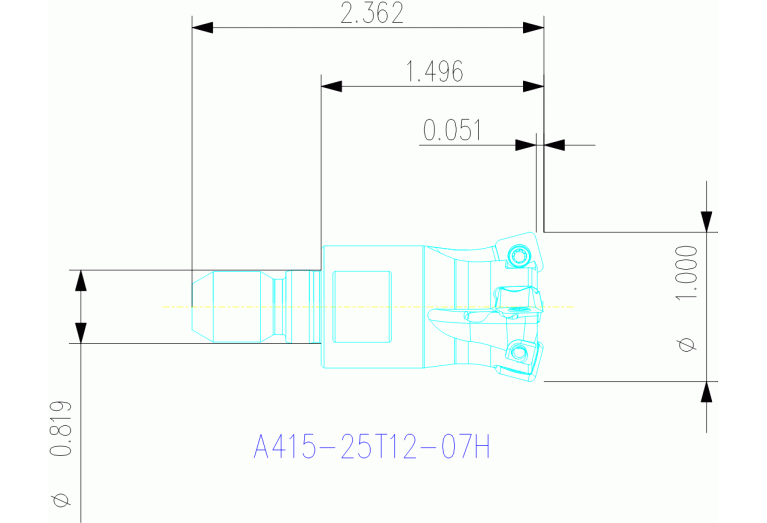

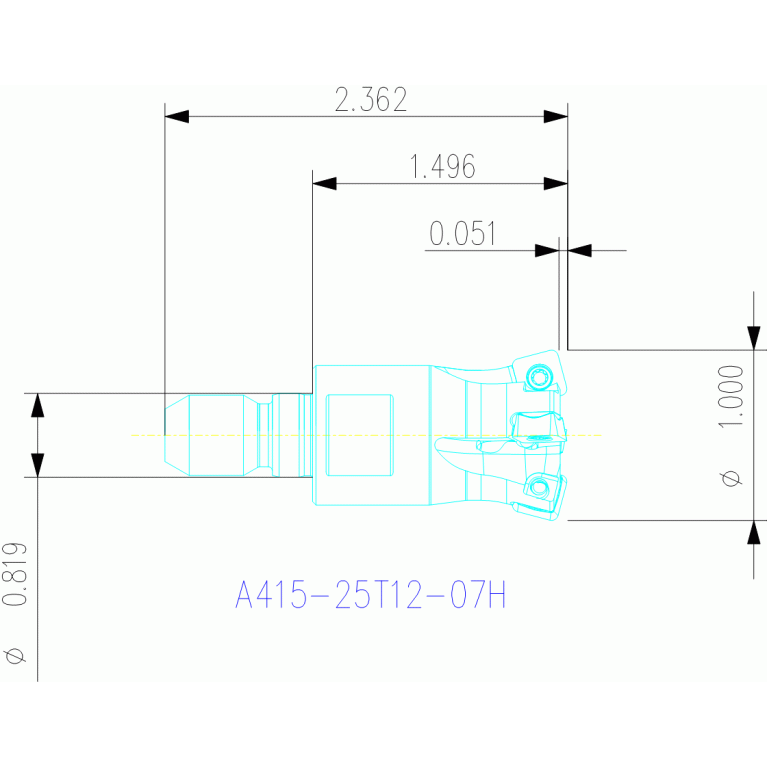

A415-25T12-07H

Артикул: 7082559

В наличии

0 ₽

В корзину

Описание

Характеристики

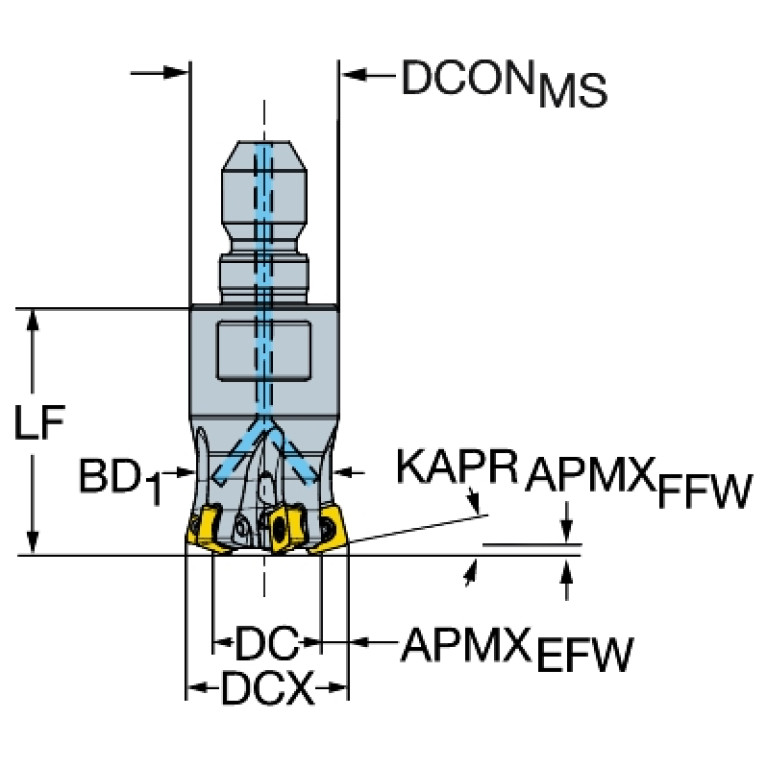

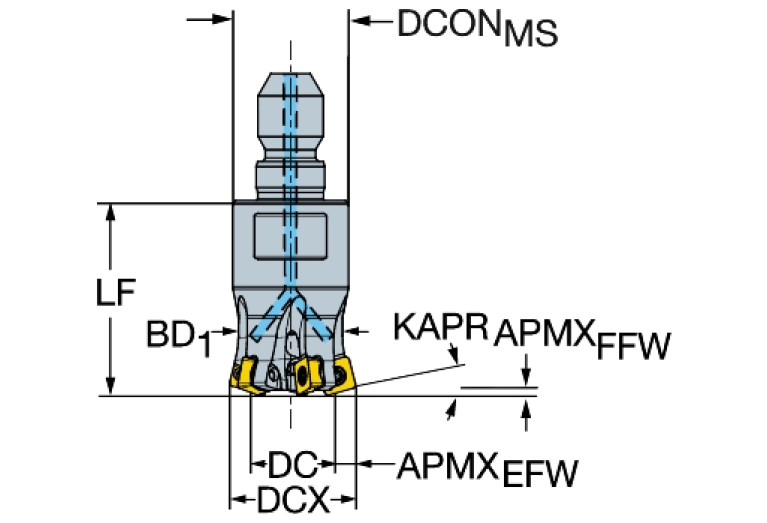

A1A (Cutting edge angle major Pos. A)

90 Degree

A2A (Clearance angle major Pos. A)

11 Degree

APMX (Depth of cut maximum)

1.2 mm

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

7 mm

BD (Body diameter)

19.4 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.07 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

14 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

25.4 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SAC01200315

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

-2.083 Degree

GAMP (Rake angle axial)

7.731 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC03A0120$$$$

KAPR (Tool cutting edge angle)

15 Degree

LOC-03 ISO

SAC03A0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

20.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01200315

LPR (Protruding length)

38 mm

LS (Shank length)

22 mm

MIID (Master insert identification)

415N-070310M

OAL (Overall length)

60 mm

RMPX (Ramping angle maximum)

0.61 Degree

RPMX (Rotational speed maximum)

15700 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

0.094 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
