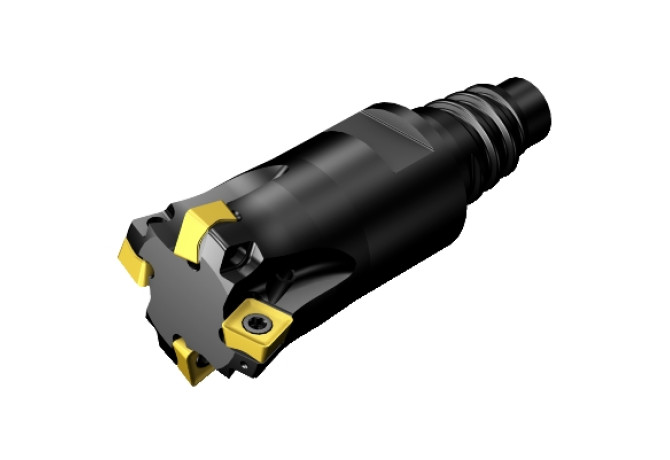

Главная Инструменты 307-02 - Non-centre cutting single row V-groove end mill A415-19EH20-07H

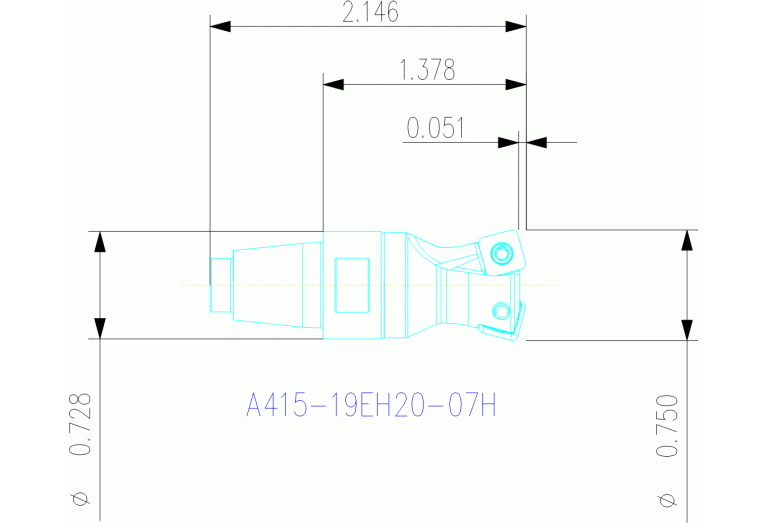

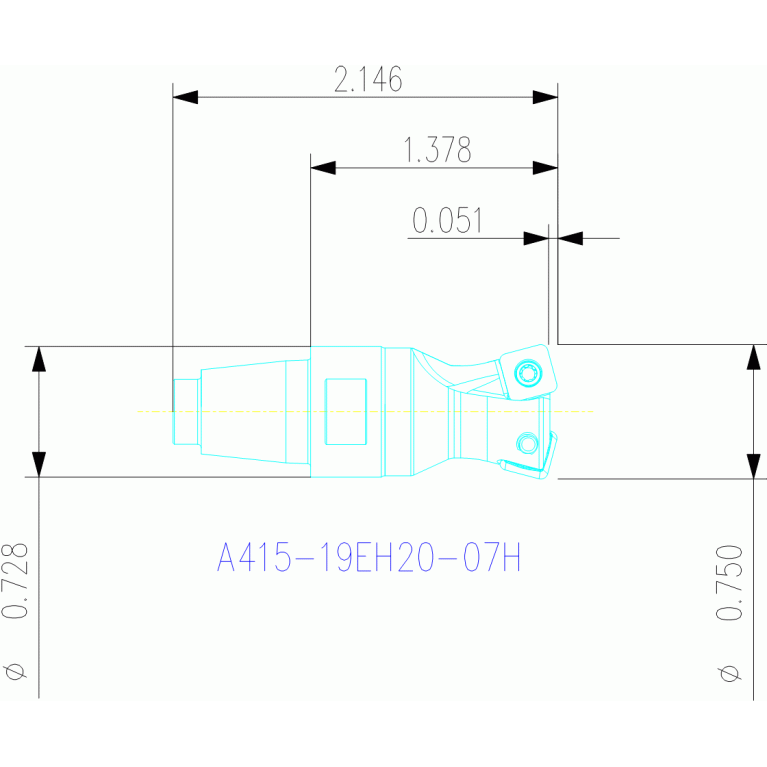

A415-19EH20-07H

A415-19EH20-07H A415-19EH20-07H A415-19EH20-07H A415-19EH20-07H

A415-19EH20-07H

SV - Sandvik-Coromant
Артикул: 7082555
В наличии
0 ₽
В корзину
Описание
Характеристики

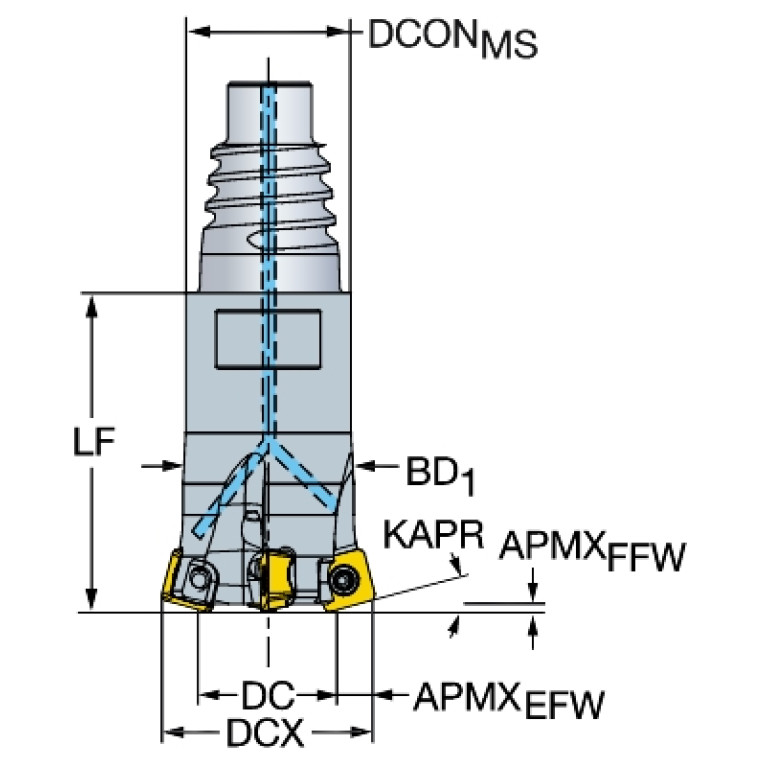

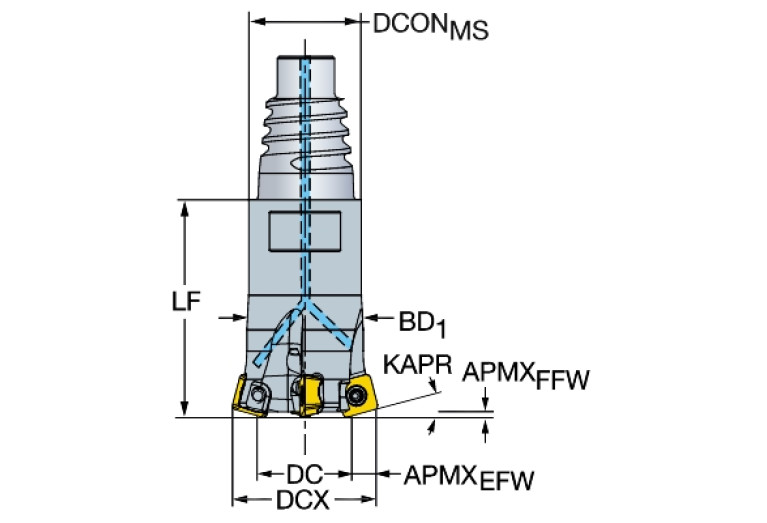

A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
11 Degree
APMX (Depth of cut maximum)
1.2 mm
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
7 mm
BD (Body diameter)
13.05 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.07 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
7.6 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
19.05 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SAC02000415
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
2
GAMF (Rake angle radial)
-1.82 Degree
GAMP (Rake angle axial)
6.764 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04B0200$$$$
KAPR (Tool cutting edge angle)
15 Degree
LOC-03 ISO
SAC04B0200$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
18.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02000415
LPR (Protruding length)
35 mm
MIID (Master insert identification)
415N-070310M
OAL (Overall length)
54.508 mm
RMPX (Ramping angle maximum)
0.62 Degree
RPMX (Rotational speed maximum)
17500 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
0.063 kg
ZEFF (Face effective cutting edge count)
2
ZEFP (Peripheral effective cutting edge count)
2
