Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill RA215.64-36M32-6012

RA215.64-36M32-6012

Артикул: 5740219

В наличии

0 ₽

В корзину

Описание

Характеристики

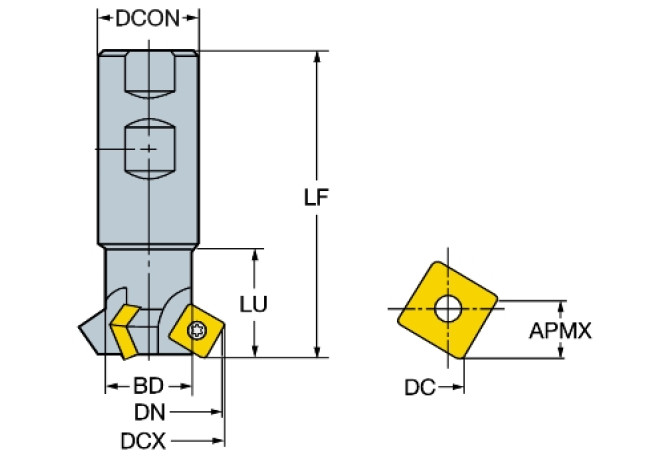

APMX (Depth of cut maximum)

6 mm

BD (Body diameter)

27.2 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

27.2 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

47.78 mm

Delivery state valid from

12/1/2023

DIN

ZYL12501025

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1250h$06

KAPR (Tool cutting edge angle)

30 Degree

LOC-01 ISO

SV$$NU1204$$3R*$$$$

LOC-01 (BI Block index)

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-NU120400

LOC-03 ISO

ZYL10S1250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501025

LPR (Protruding length)

27.7 mm

LU (Usable length)

25.8 mm

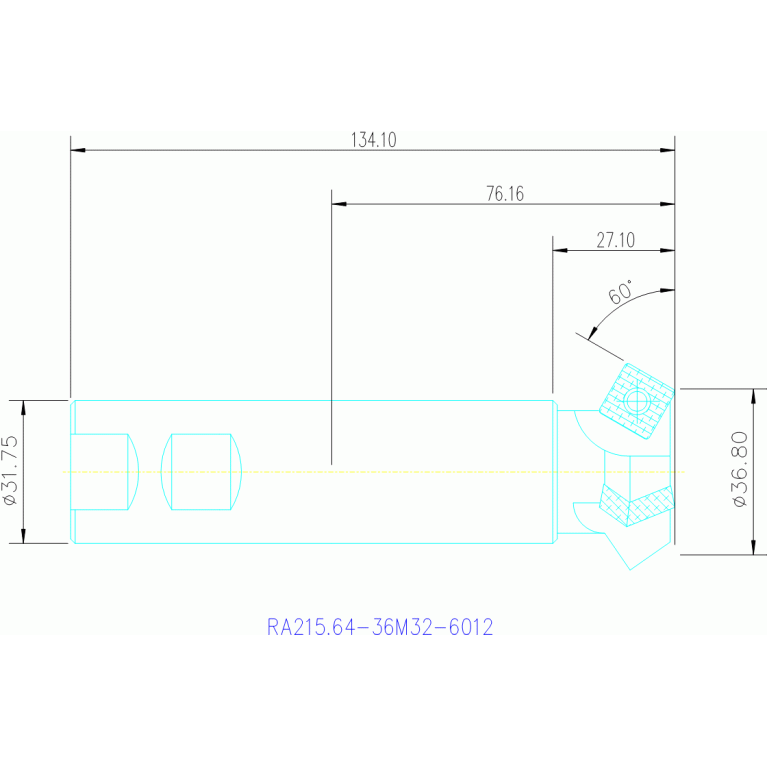

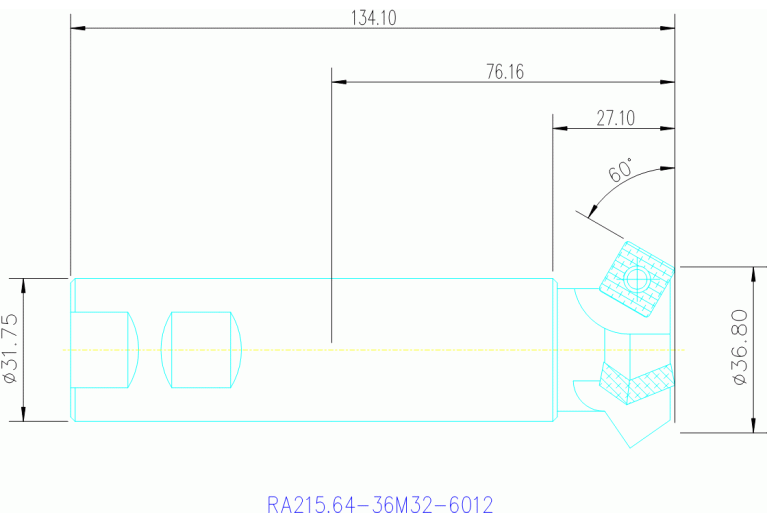

OAL (Overall length)

134.1 mm

RPMX (Rotational speed maximum)

8855 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.84 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
