Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill RA215.64-12M19-6012

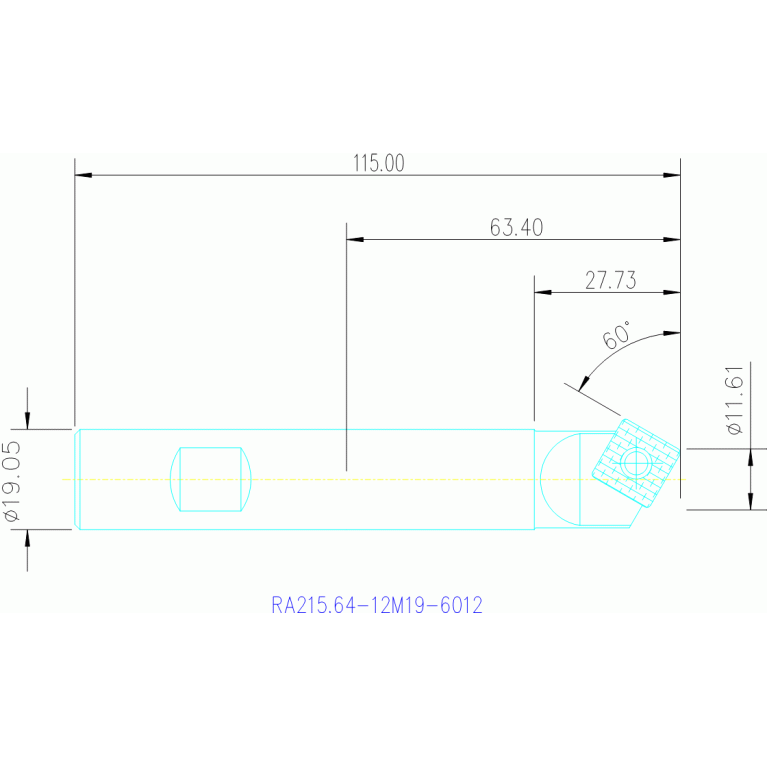

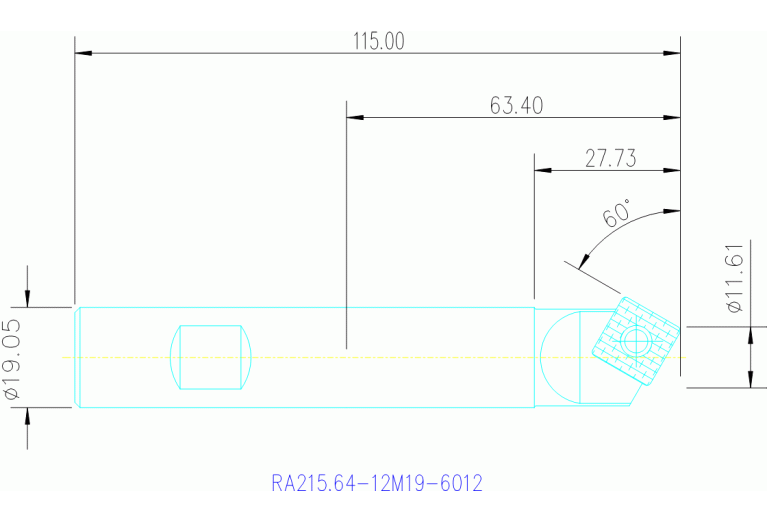

RA215.64-12M19-6012

RA215.64-12M19-6012 RA215.64-12M19-6012 RA215.64-12M19-6012

RA215.64-12M19-6012

SV - Sandvik-Coromant
Артикул: 5740211
В наличии
0 ₽
В корзину
Описание
Характеристики

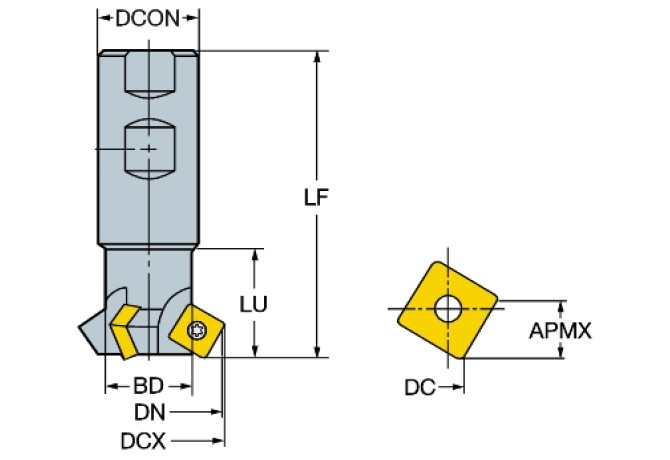

APMX (Depth of cut maximum)
6 mm
BD (Body diameter)
17.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
17.4 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
22.93 mm
Delivery state valid from
12/1/2023
DIN
ZYL07501025
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL10R7500h$06
KAPR (Tool cutting edge angle)
30 Degree
LOC-01 ISO
SV$$NU1204$$3R*$$$$
LOC-01 (BI Block index)
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-NU120400
LOC-03 ISO
ZYL10R7500h$06
LOC-03 (CCFMS Connection code form)
10
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0750
LOC-03 (DCONMS Diameter)
19.05 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501025
LPR (Protruding length)
27.7 mm
OAL (Overall length)
115 mm
RPMX (Rotational speed maximum)
25200 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.253 kg
ZEFF (Face effective cutting edge count)
1
ZEFP (Peripheral effective cutting edge count)
1
