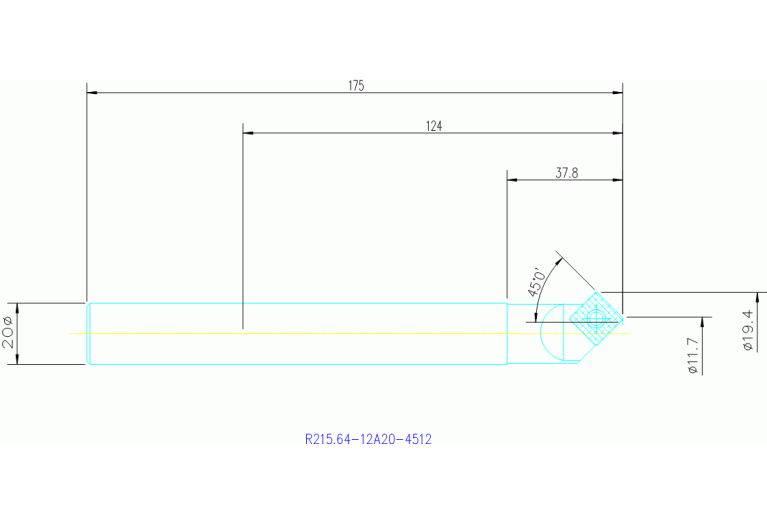

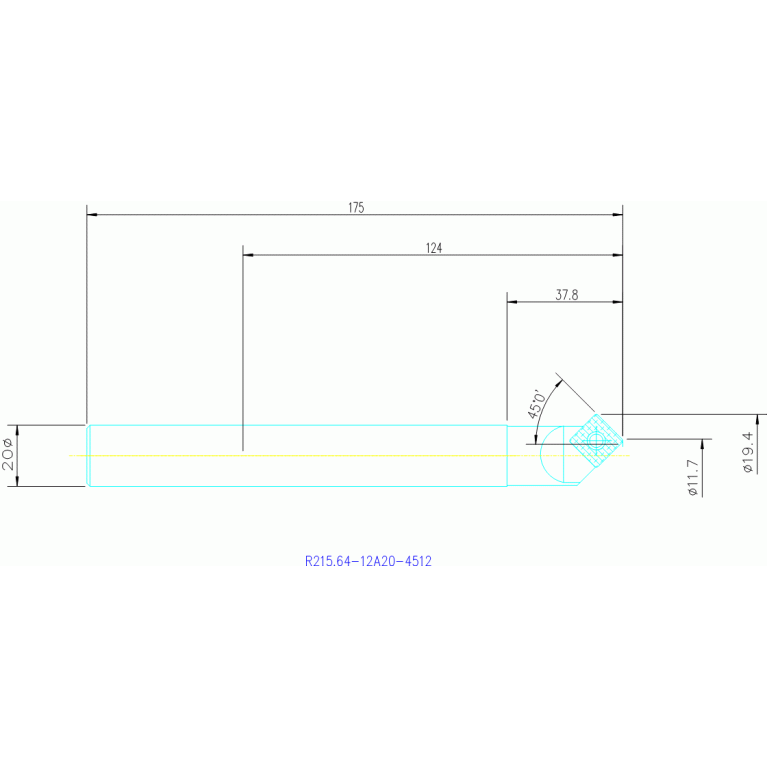

Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill R215.64-12A20-4512

R215.64-12A20-4512

Артикул: 5742818

В наличии

0 ₽

В корзину

Описание

Характеристики

APMX (Depth of cut maximum)

4 mm

BD (Body diameter)

19.4 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

19.4 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

27.13 mm

Delivery state valid from

12/1/2023

DIN

ZYL02000105

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G2000h$07

KAPR (Tool cutting edge angle)

45 Degree

LF (Functional length)

175 mm

LOC-01 ISO

SV$$NU1204$$3R*$$$$

LOC-01 (BI Block index)

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-NU120400

LOC-03 ISO

ZYL01G2000h$07

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR (Protruding length)

37.8 mm

OAL (Overall length)

175 mm

RPMX (Rotational speed maximum)

25200 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.444 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
