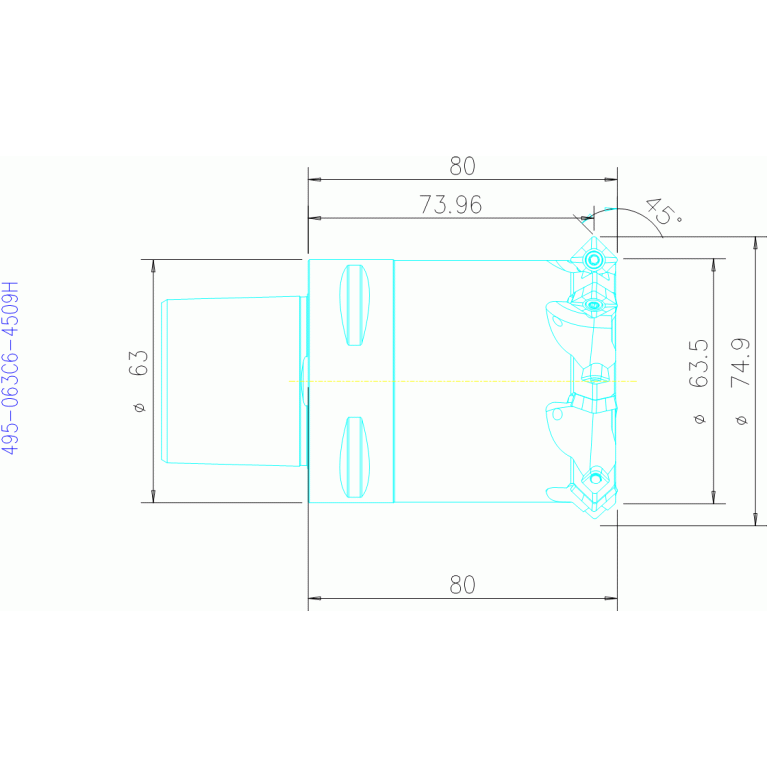

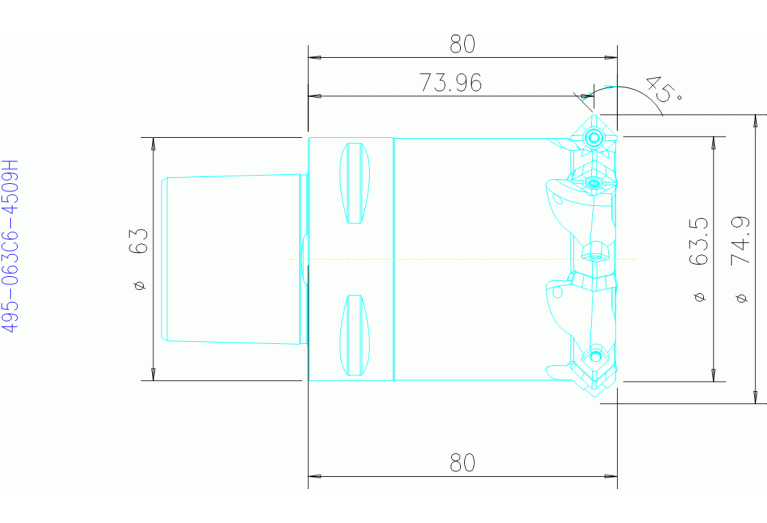

Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill 495-063C6-4509H

495-063C6-4509H

495-063C6-4509H 495-063C6-4509H 495-063C6-4509H 495-063C6-4509H

495-063C6-4509H

SV - Sandvik-Coromant
Артикул: 6536294
В наличии
0 ₽
В корзину
Описание
Характеристики

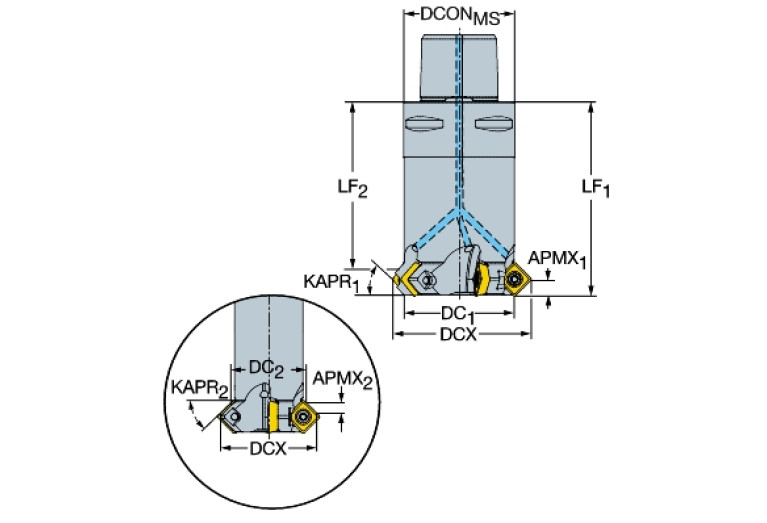

APMX (Depth of cut maximum)
5.445 mm
BD (Body diameter)
62.716 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
64.014 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
74.905 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS06300195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
KAPR (Tool cutting edge angle)
45 Degree
LF (Functional length)
80 mm
LOC-01 ISO
SV$$NL09T3$$3R*$$$$
LOC-01 (BI Block index)
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-NL09T300
LOC-03 ISO
CCS01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR (Protruding length)
80 mm
OAL (Overall length)
118 mm
RPMX (Rotational speed maximum)
4700 1/min
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
2.052 kg
ZEFF (Face effective cutting edge count)
7
ZEFP (Peripheral effective cutting edge count)
7
