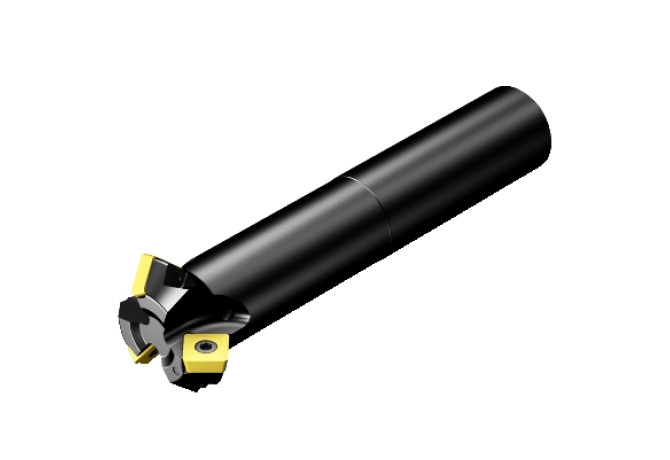

Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill 495-025A25-6009H

495-025A25-6009H

495-025A25-6009H 495-025A25-6009H 495-025A25-6009H 495-025A25-6009H

495-025A25-6009H

SV - Sandvik-Coromant
Артикул: 6536277
В наличии
0 ₽
В корзину
Описание
Характеристики

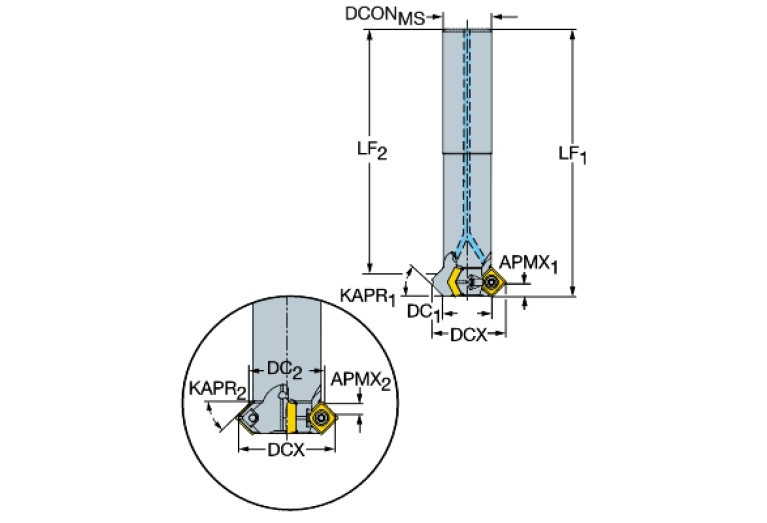

APMX (Depth of cut maximum)
3.931 mm
BD (Body diameter)
18.739 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
19.959 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
33.576 mm
Delivery state valid from
12/1/2023
DIN
ZYL02500115
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G2500h$06
KAPR (Tool cutting edge angle)
30 Degree
LF (Functional length)
120 mm
LOC-01 ISO
SV$$NL09T3$$3R*$$$$
LOC-01 (BI Block index)
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-NL09T300
LOC-03 ISO
ZYL01G2500h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0250
LOC-03 (DCONMS Diameter)
25 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR (Protruding length)
63 mm
LU (Usable length)
59 mm
OAL (Overall length)
120 mm
RPMX (Rotational speed maximum)
8100 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.325 kg
ZEFF (Face effective cutting edge count)
4
ZEFP (Peripheral effective cutting edge count)
4
