Главная Инструменты 307-08 - Non-centre cutting multiple rows angular end mill 495-020EH20-4509M

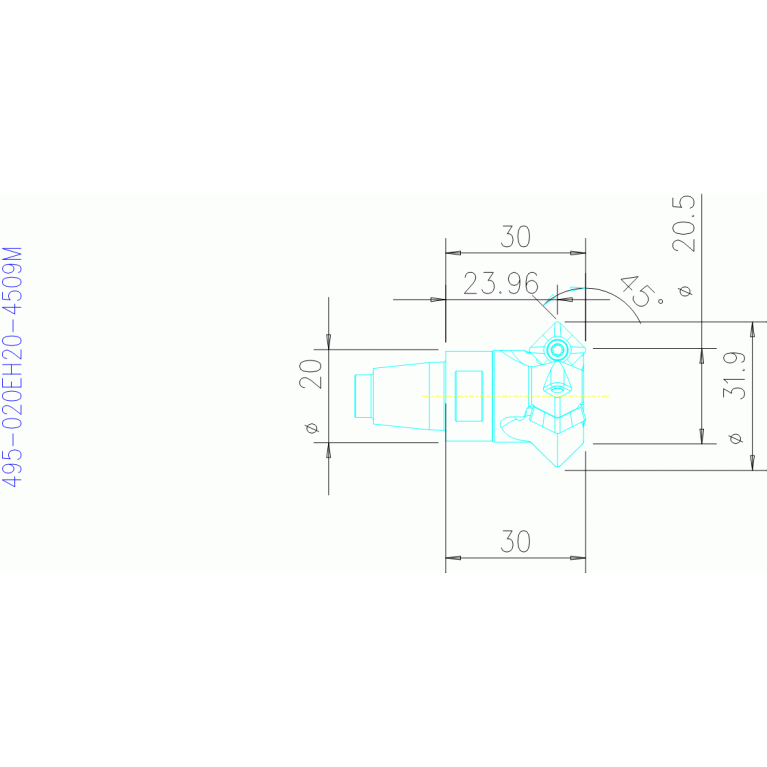

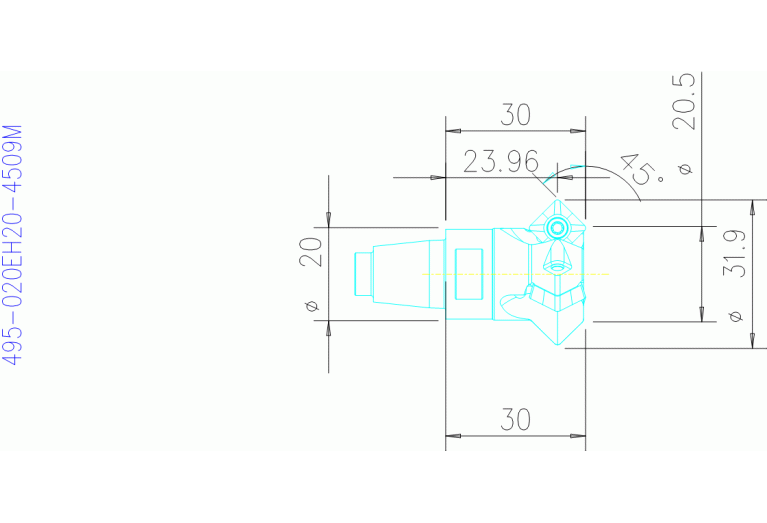

495-020EH20-4509M

495-020EH20-4509M 495-020EH20-4509M 495-020EH20-4509M 495-020EH20-4509M

495-020EH20-4509M

SV - Sandvik-Coromant
Артикул: 6536290
В наличии
0 ₽
В корзину
Описание
Характеристики

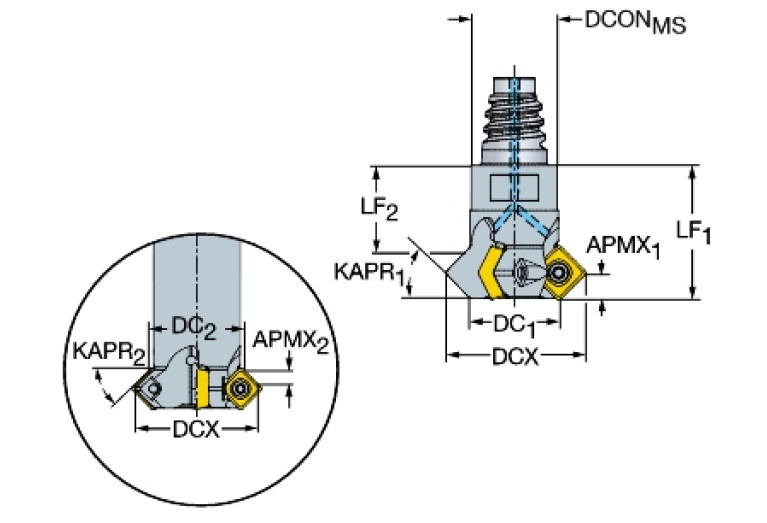

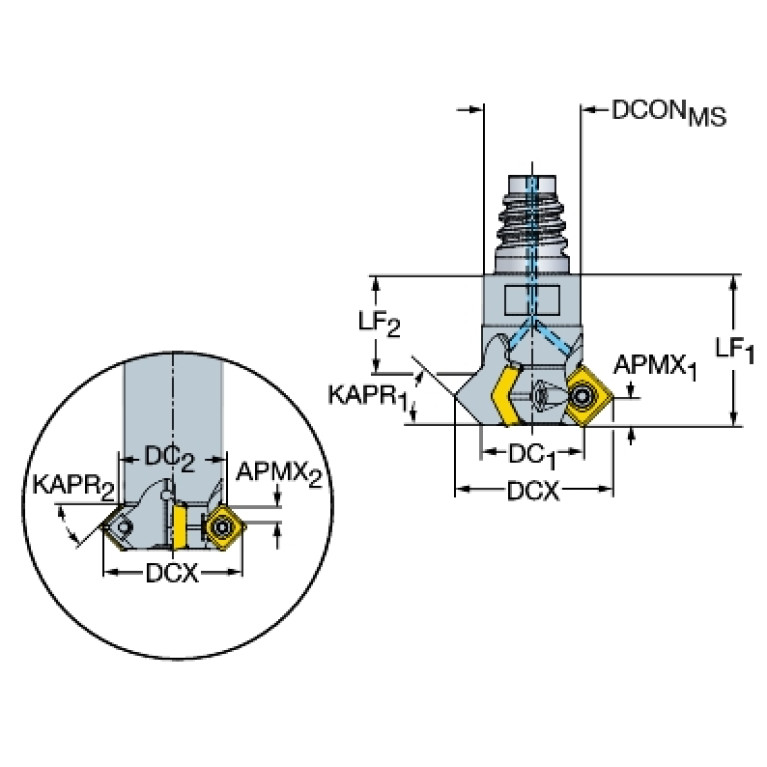

APMX (Depth of cut maximum)
5.467 mm
BD (Body diameter)
19.711 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
20.969 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
31.902 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SAC02000415
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04A0200$$$$
KAPR (Tool cutting edge angle)
45 Degree
LOC-01 ISO
SV$$NL09T3$$3R*$$$$
LOC-01 (BI Block index)
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SV-NL09T300
LOC-03 ISO
SAC04A0200$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
19.3 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02000415
LPR (Protruding length)
30 mm
OAL (Overall length)
49.5 mm
RPMX (Rotational speed maximum)
9500 1/min
Working process
FFO - Die milling,FPR - Profile milling
WT (Weight of item)
0.07 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
