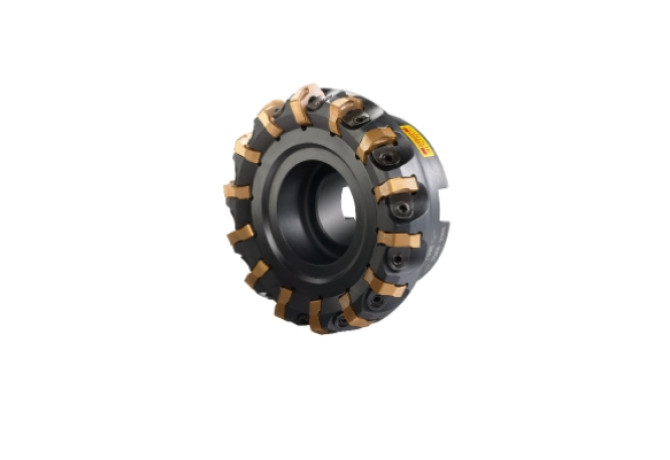

Главная Инструменты 308-01 - Face milling cutter RA365-080J25-W15H

RA365-080J25-W15H

Артикул: 5740312

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

15 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.66 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

6 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

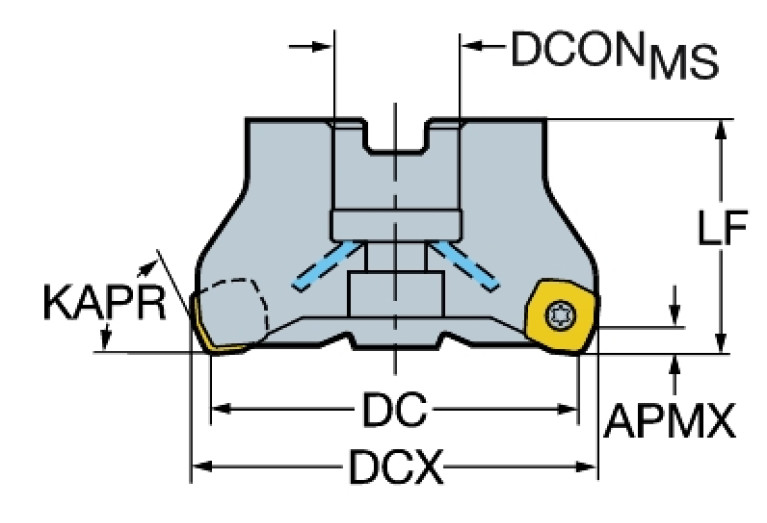

DC (Cutting diameter)

80 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

86.7 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FDA10001220

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

-10.315 Degree

GAMP (Rake angle axial)

-5.698 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12S1000$$$$

KAPR (Tool cutting edge angle)

65 Degree

LOC-03 ISO

FDA12S1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001220

MIID (Master insert identification)

R365-1505ZNE

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

11200 1/min

Working process

FPL - Face milling

WT (Weight of item)

1.77 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
