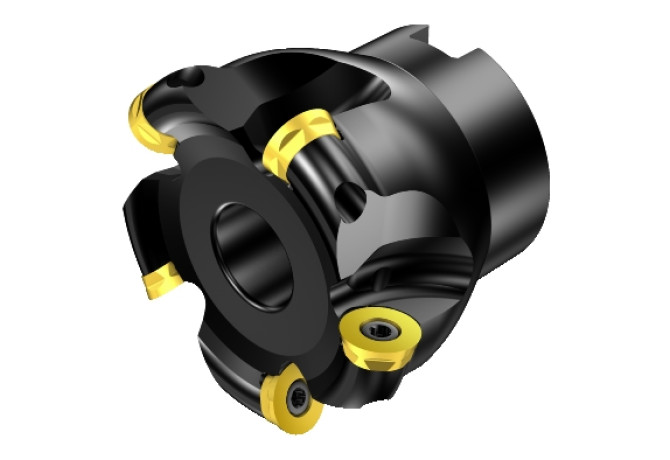

Главная Инструменты 308-01 - Face milling cutter RA300-051R19-13M

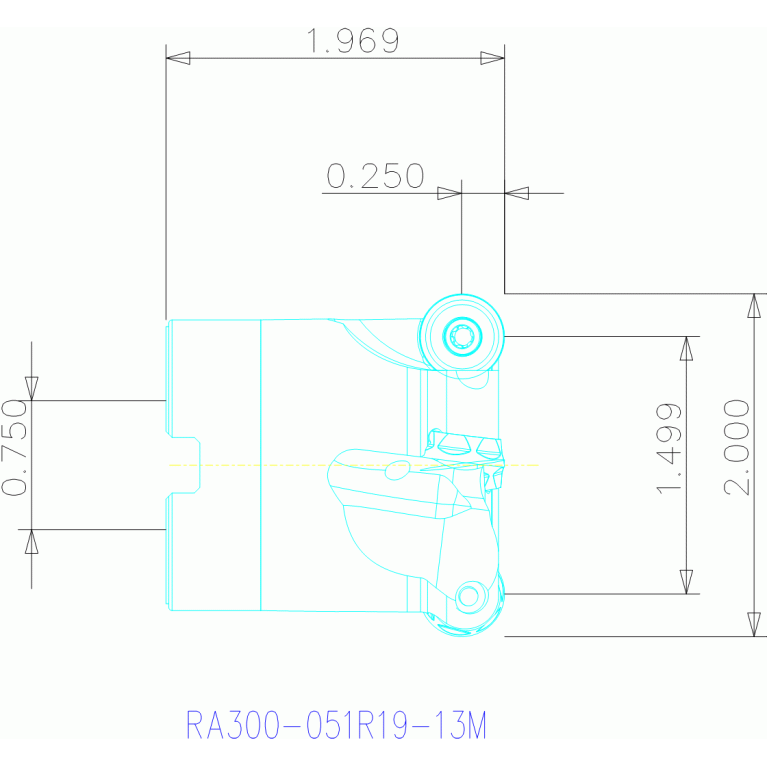

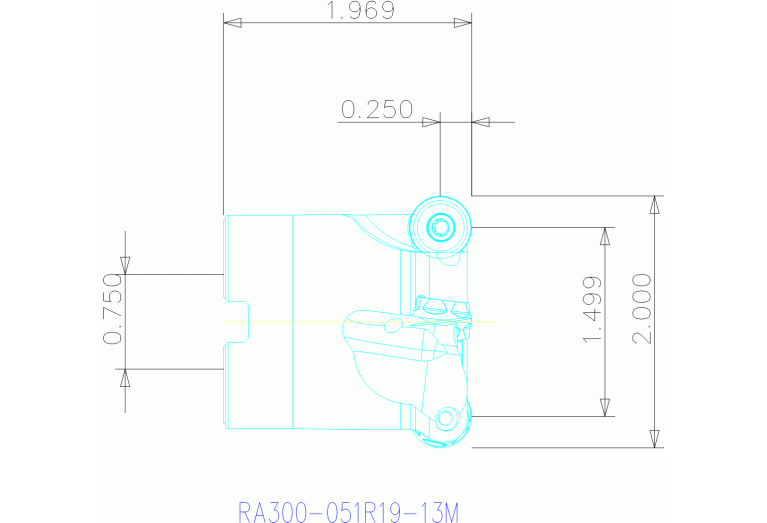

RA300-051R19-13M

RA300-051R19-13M

RA300-051R19-13M

RA300-051R19-13M

RA300-051R19-13M

RA300-051R19-13M

RA300-051R19-13M

SV - Sandvik-Coromant

Артикул: 5738754

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

15 Degree

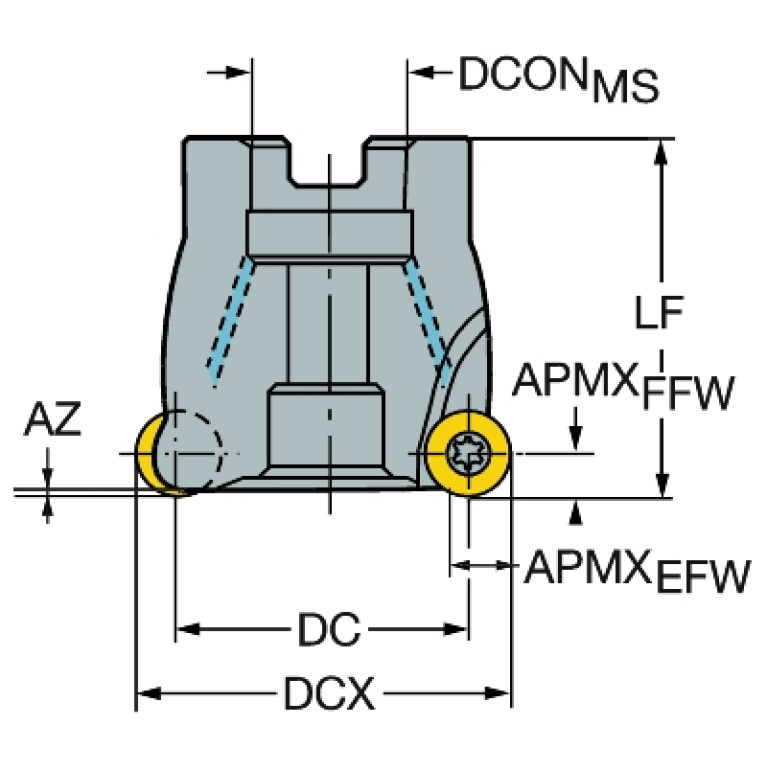

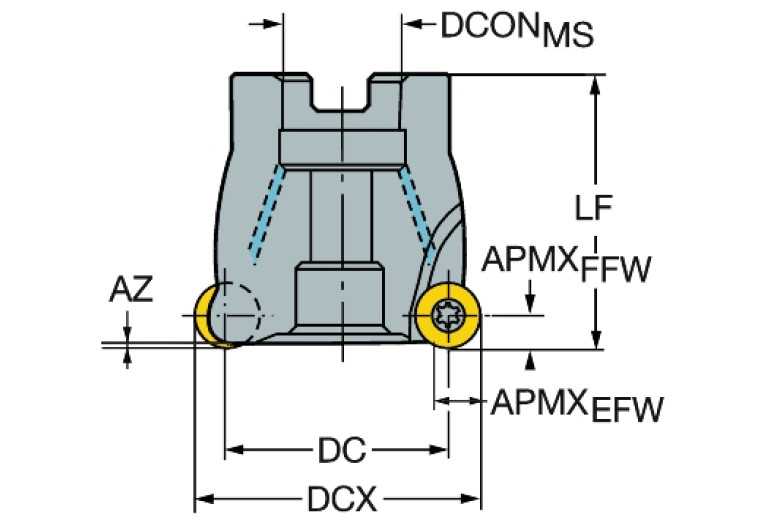

AZ (Plunge depth maximum)

2.8 mm

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BI (Block index)

1

BLDA (Tool style code Position A)

10

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.969 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

6.3 mm

CICT (Cutting item count)

4

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

6.35 mm

DC (Cutting diameter)

38.1 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

50.8 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA07501230

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

4

GAMF (Rake angle radial)

7 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12R7500$$$$

LOC-03 ISO

FDA12R7500$$$$

LOC-03 (CCFMS Connection code form)

12

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0750

LOC-03 (DCONMS Diameter)

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA07501230

MIID (Master insert identification)

R300-1340..

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

5.5 Degree

RPMX (Rotational speed maximum)

16900 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

0.389 kg

ZEFF (Face effective cutting edge count)

4

ZEFP (Peripheral effective cutting edge count)

4
