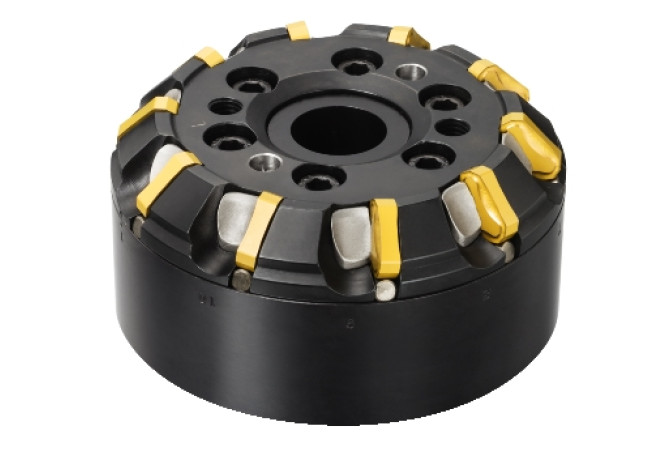

Главная Инструменты 308-01 - Face milling cutter RA260.3-080M-10

RA260.3-080M-10

Артикул: 5738517

В наличии

0 ₽

В корзину

Описание

Характеристики

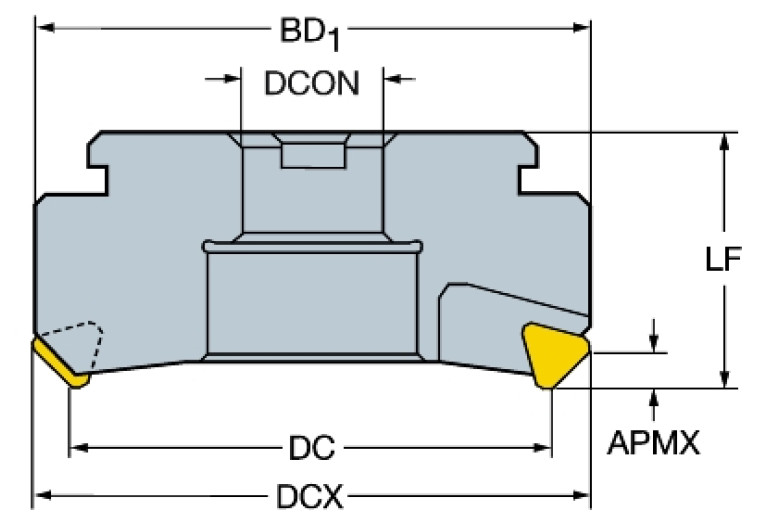

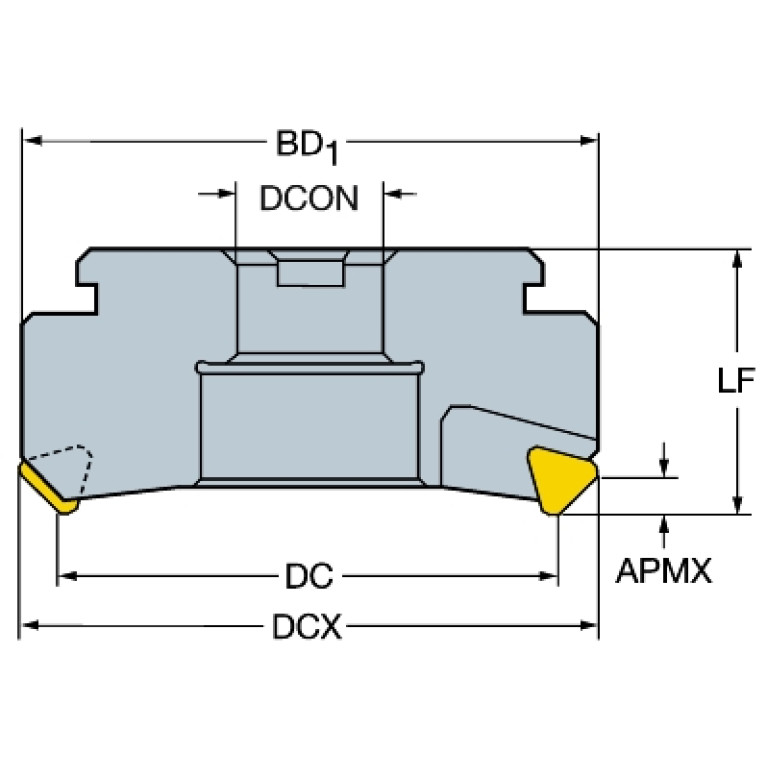

A1A (Cutting edge angle major Pos. A)

60 Degree

A2A (Clearance angle major Pos. A)

0 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

12.7 mm

BD (Body diameter)

100.203 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

5.994 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D4A (Cutting edge angle major Pos. A)

45 Degree

DC (Cutting diameter)

80.01 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

92 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FDA10001220

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

-7.76 Degree

GAMP (Rake angle axial)

-2.14 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

FDA12S1000$$$$

KAPR (Tool cutting edge angle)

45 Degree

LOC-03 ISO

FDA12S1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001220

MIID (Master insert identification)

TNEF1204AN

OAL (Overall length)

60.325 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

1700 1/min

Working process

FPL - Face milling

WT (Weight of item)

3.059 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
