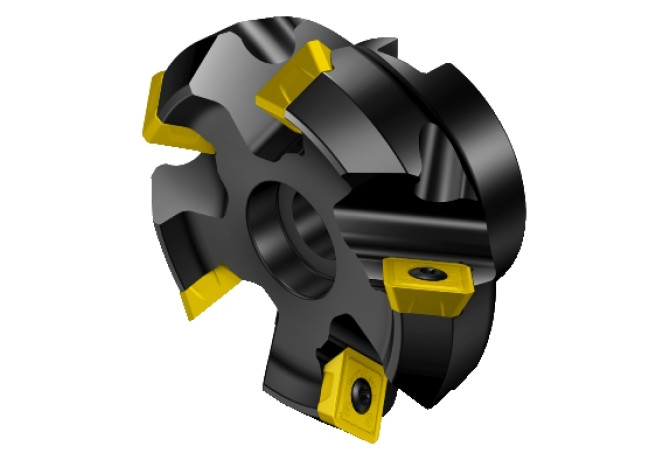

Главная Инструменты 308-01 - Face milling cutter RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

RA245-203R63-18M

SV - Sandvik-Coromant

Артикул: 5739935

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A2A (Clearance angle major Pos. A)

20 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

18 mm

BI (Block index)

1

BLDA (Tool style code Position A)

2

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.1 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

10 mm

CICT (Cutting item count)

8

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

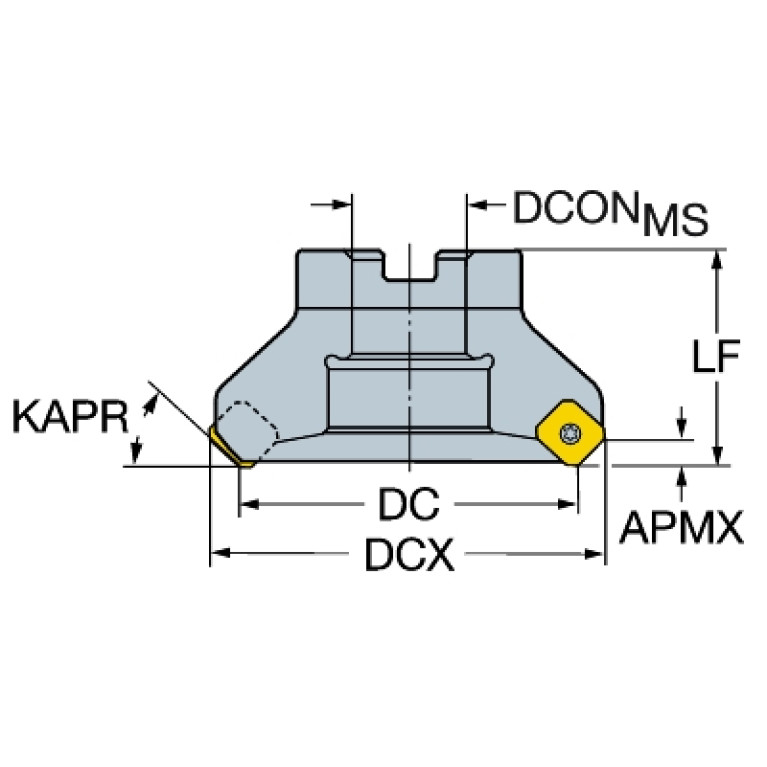

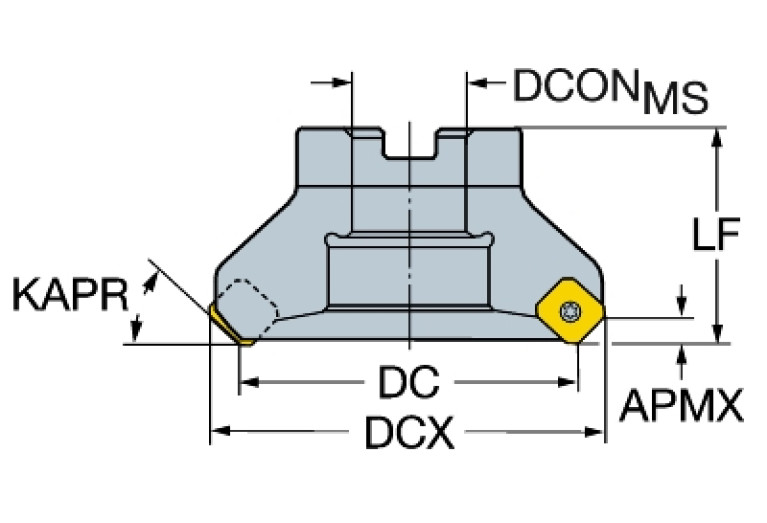

DC (Cutting diameter)

203.2 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

222.001 mm

Delivery state valid from

12/1/2023

DIN

SPK25000223

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

8

GAMF (Rake angle radial)

17.109 Degree

GAMP (Rake angle axial)

-8.625 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SPK02S2500$$$$

KAPR (Tool cutting edge angle)

45 Degree

LOC-03 ISO

SPK02S2500$$$$

LOC-03 (CCFMS Connection code form)

02

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

2500

LOC-03 (DCONMS Diameter)

63.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK25000223

MIID (Master insert identification)

R245-18T6..

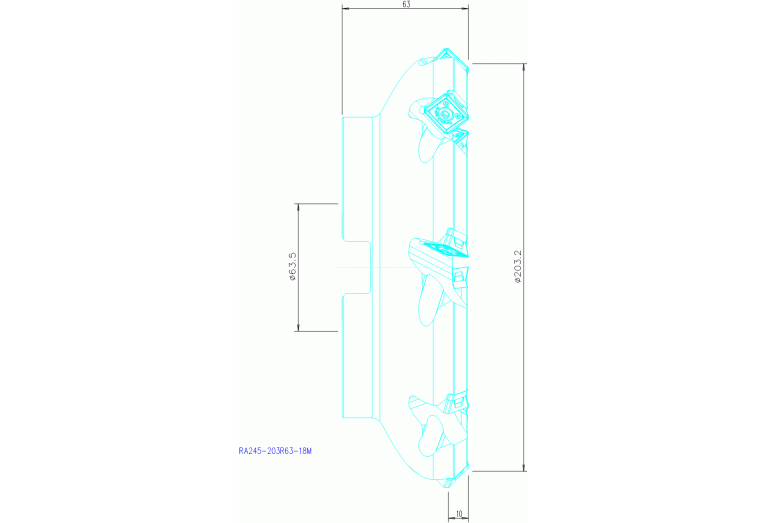

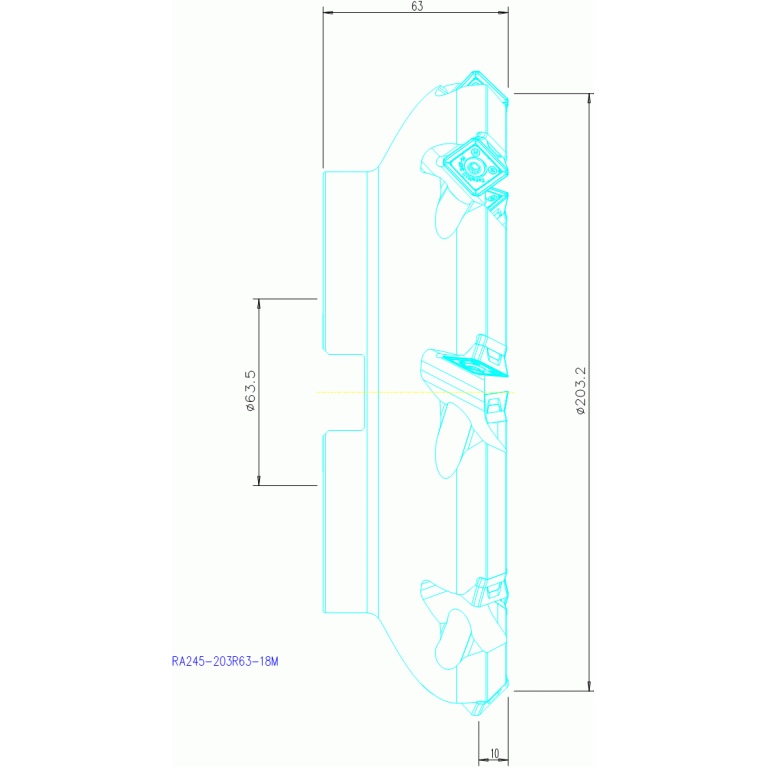

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

3800 1/min

Working process

FPL - Face milling

WT (Weight of item)

7.31 kg

ZEFF (Face effective cutting edge count)

8

ZEFP (Peripheral effective cutting edge count)

8
