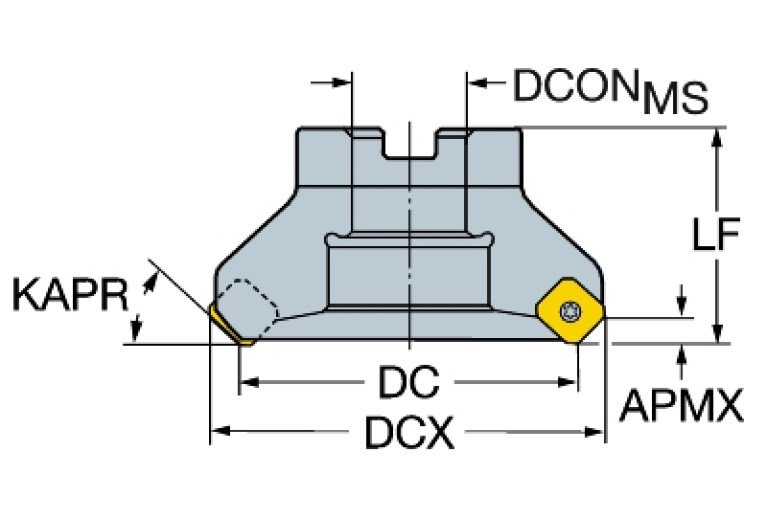

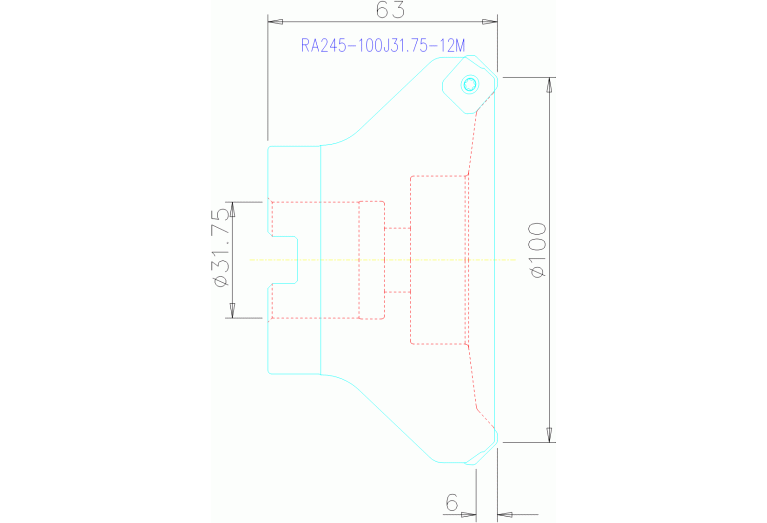

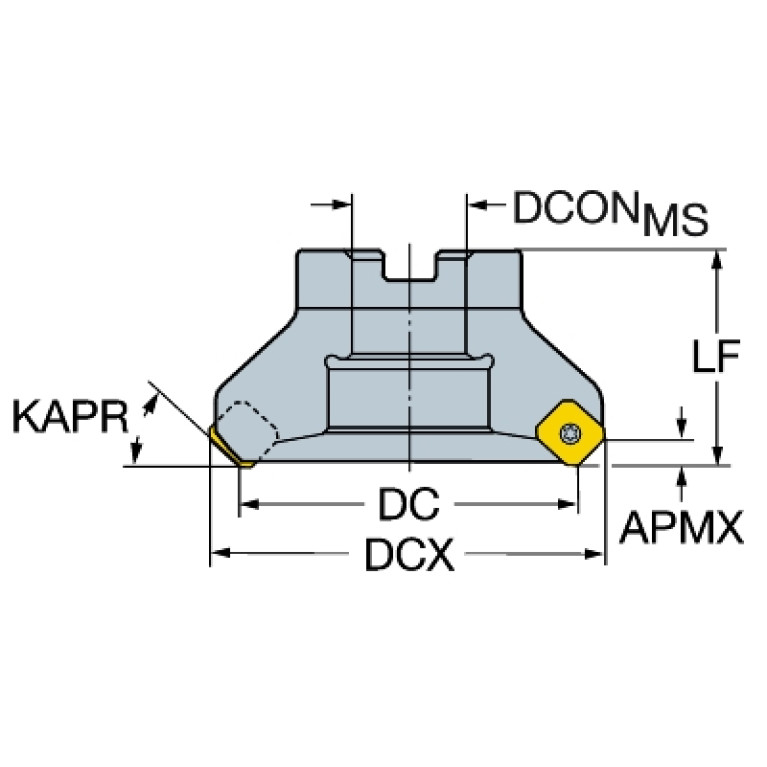

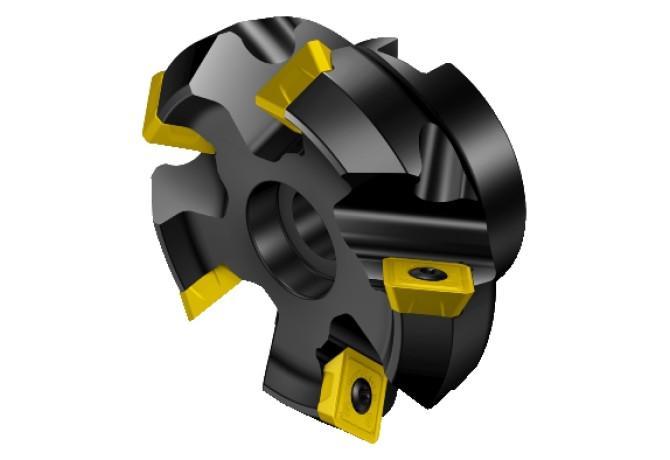

Главная Инструменты 308-01 - Face milling cutter RA245-100J31.75-12M

RA245-100J31.75-12M

RA245-100J31.75-12M RA245-100J31.75-12M RA245-100J31.75-12M RA245-100J31.75-12M

RA245-100J31.75-12M

SV - Sandvik-Coromant
Артикул: 5739722
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
20 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
13.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.969 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
6 mm
CICT (Cutting item count)
7
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
100 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
112.5 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
FDA12501220
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
7
GAMF (Rake angle radial)
21.964 Degree
GAMP (Rake angle axial)
-11.144 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA12S1250$$$$
KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
FDA12S1250$$$$
LOC-03 (CCFMS Connection code form)
12
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12501220
MIID (Master insert identification)
R245-12T3..
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
11300 1/min
Working process
FPL - Face milling
WT (Weight of item)
2.412 kg
ZEFF (Face effective cutting edge count)
7
ZEFP (Peripheral effective cutting edge count)
7
