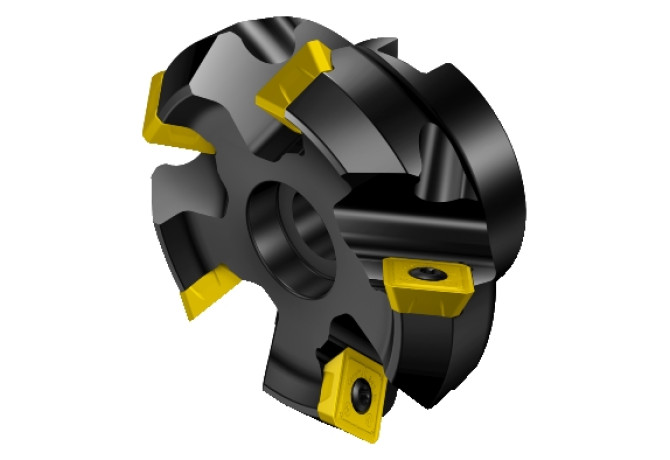

Главная Инструменты 308-01 - Face milling cutter RA245-076R25-18M

RA245-076R25-18M

RA245-076R25-18M RA245-076R25-18M RA245-076R25-18M RA245-076R25-18M

RA245-076R25-18M

SV - Sandvik-Coromant
Артикул: 5739697
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
20 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
18 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
6.1 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
10 mm
CICT (Cutting item count)
4
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit

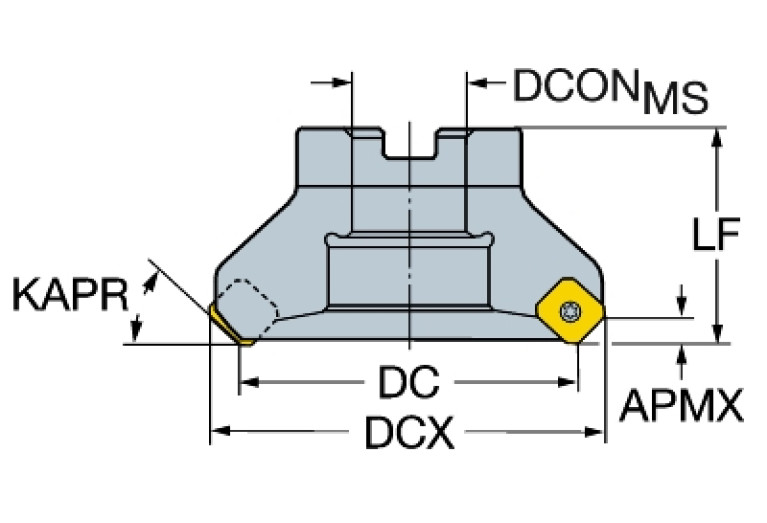

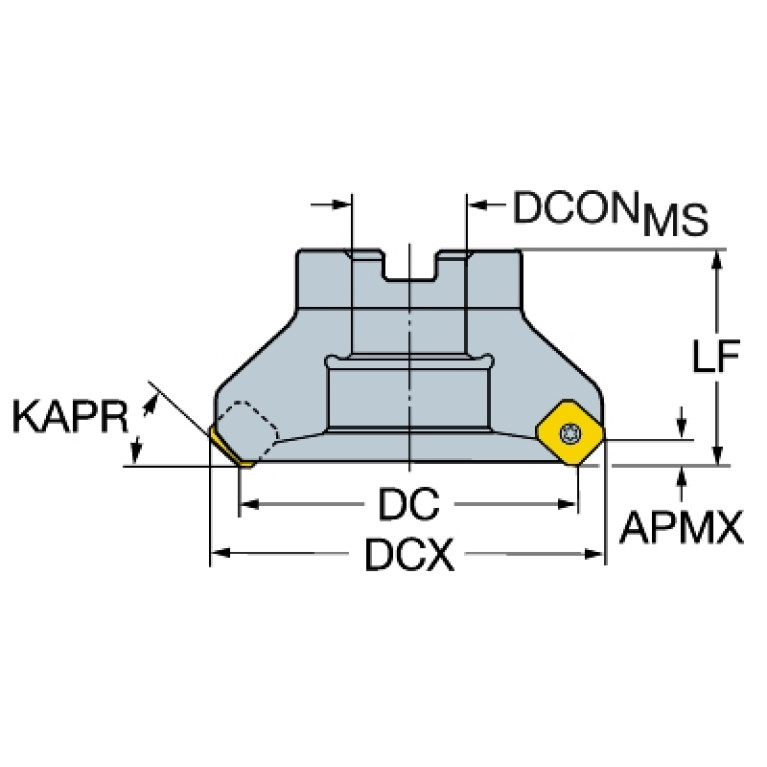

DC (Cutting diameter)
76.2 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
95.001 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
FDA10002220
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
4
GAMF (Rake angle radial)
15.731 Degree
GAMP (Rake angle axial)
-10.083 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1000$$$$
KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
FDA22S1000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
MIID (Master insert identification)
R245-18T6..
OAL (Overall length)
50 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
6300 1/min
Working process
FPL - Face milling
WT (Weight of item)
1.027 kg
ZEFF (Face effective cutting edge count)
4
ZEFP (Peripheral effective cutting edge count)
4
