Главная Инструменты 308-01 - Face milling cutter RA210-080J31-09M

RA210-080J31-09M

Артикул: 5739879

В наличии

0 ₽

В корзину

Описание

Характеристики

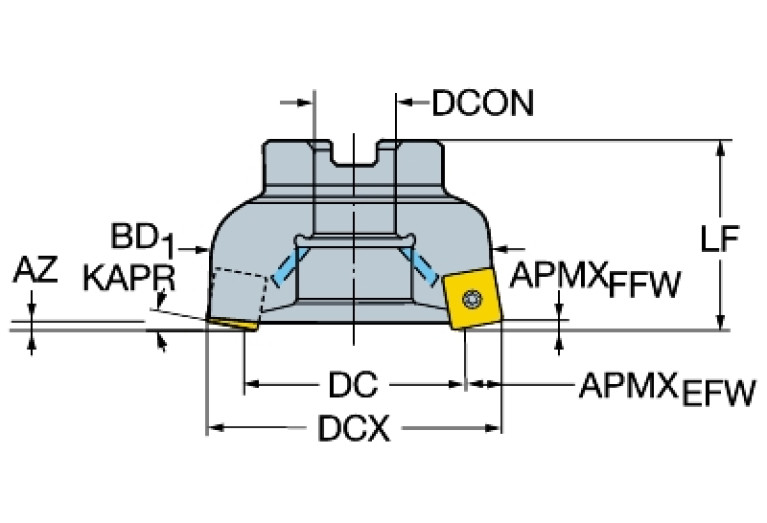

A1A (Cutting edge angle major Pos. A)

90 Degree

A2A (Clearance angle major Pos. A)

7 Degree

AZ (Plunge depth maximum)

1.8 mm

B3A (Inscribed circle diameter Pos. A)

9.4 mm

BD (Body diameter)

76.96 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

1.2 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

65.9 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

80 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FDA12501230

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12S1250$$$$

KAPR (Tool cutting edge angle)

10 Degree

LOC-03 ISO

FDA12S1250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA12501230

MIID (Master insert identification)

R210-090412M-

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

1.3 Degree

RPMX (Rotational speed maximum)

18800 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

2.017 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
