Главная Инструменты 308-01 - Face milling cutter RA200-235R63-19M

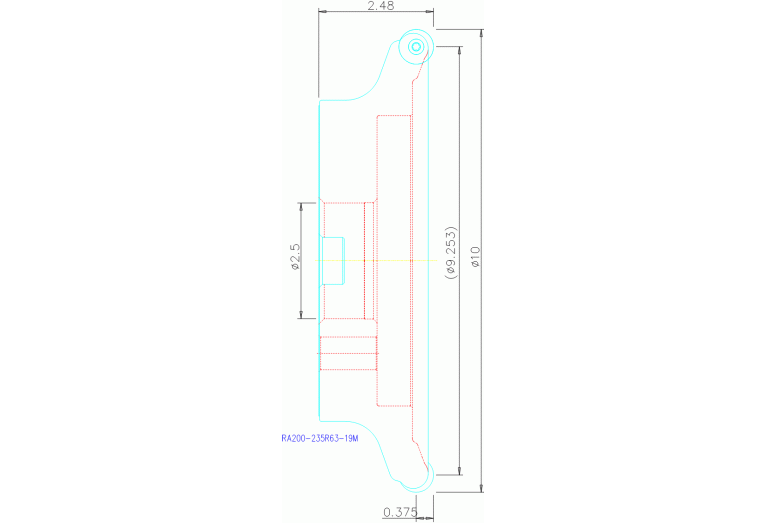

RA200-235R63-19M

Артикул: 5738785

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

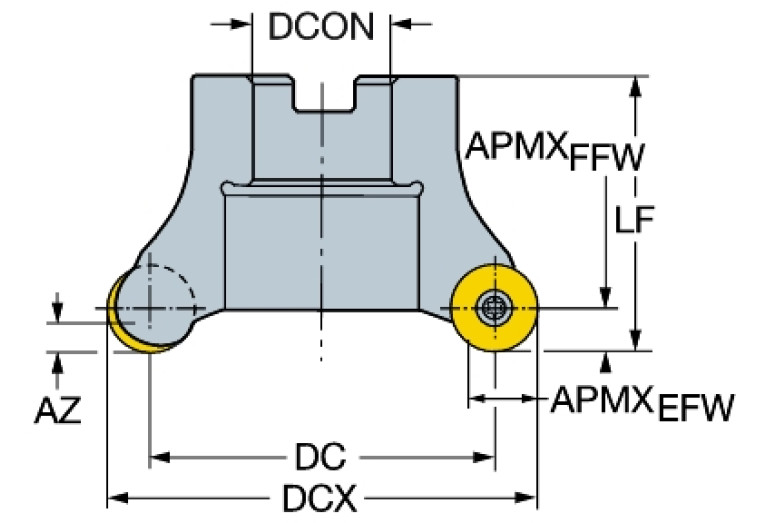

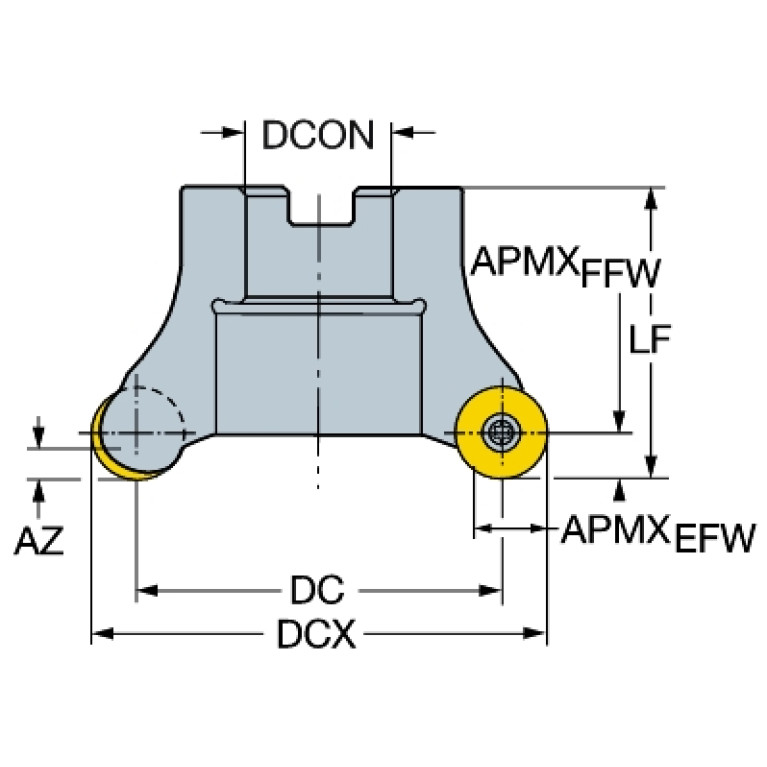

AZ (Plunge depth maximum)

5.8 mm

B3A (Inscribed circle diameter Pos. A)

19.05 mm

BD (Body diameter)

254 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

9.525 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

9.525 mm

DC (Cutting diameter)

234.95 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

254 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SPK25000223

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SPK02S2500$$$$

LOC-03 ISO

SPK02S2500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

2500

LOC-03 (DCONMS Diameter)

63.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK25000223

MIID (Master insert identification)

RCKT190600

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

1 Degree

RPMX (Rotational speed maximum)

2500 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

12.72 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
