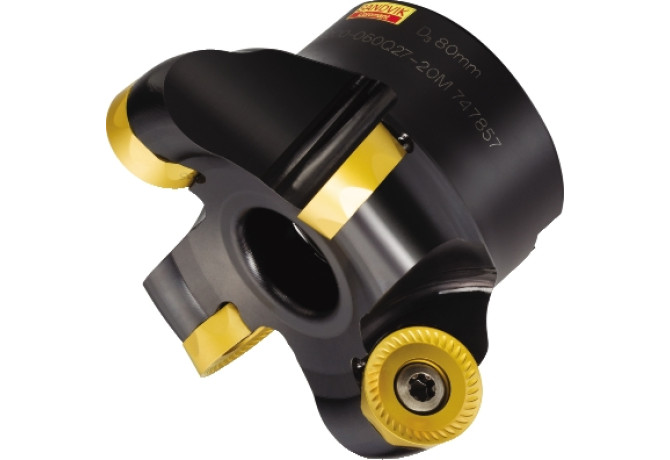

Главная Инструменты 308-01 - Face milling cutter RA200-133R38-19M

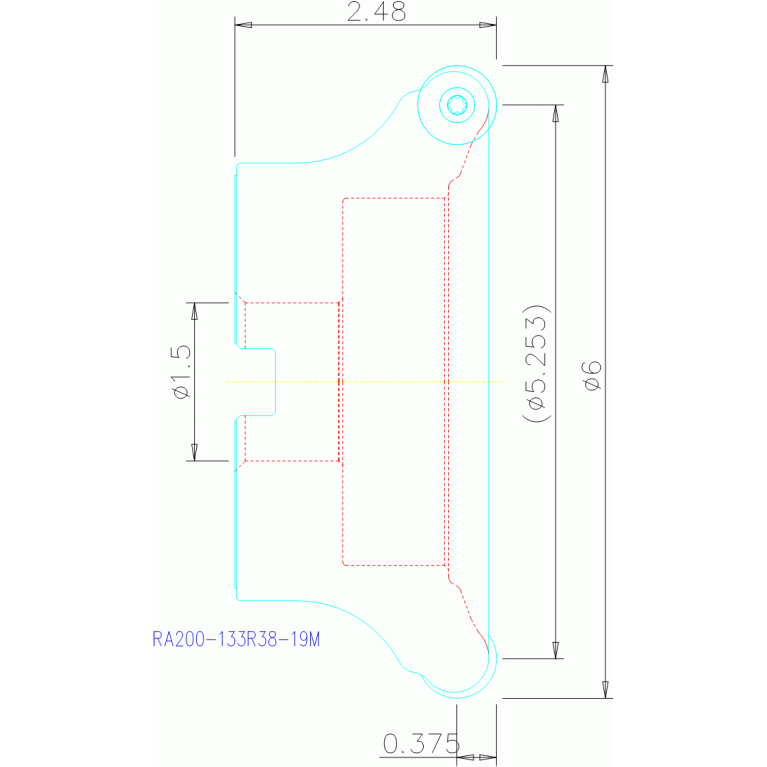

RA200-133R38-19M

Артикул: 5738743

В наличии

0 ₽

В корзину

Описание

Характеристики

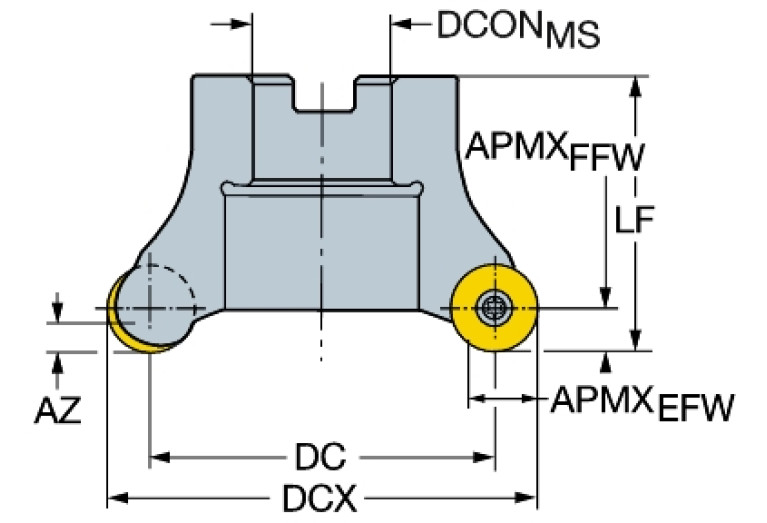

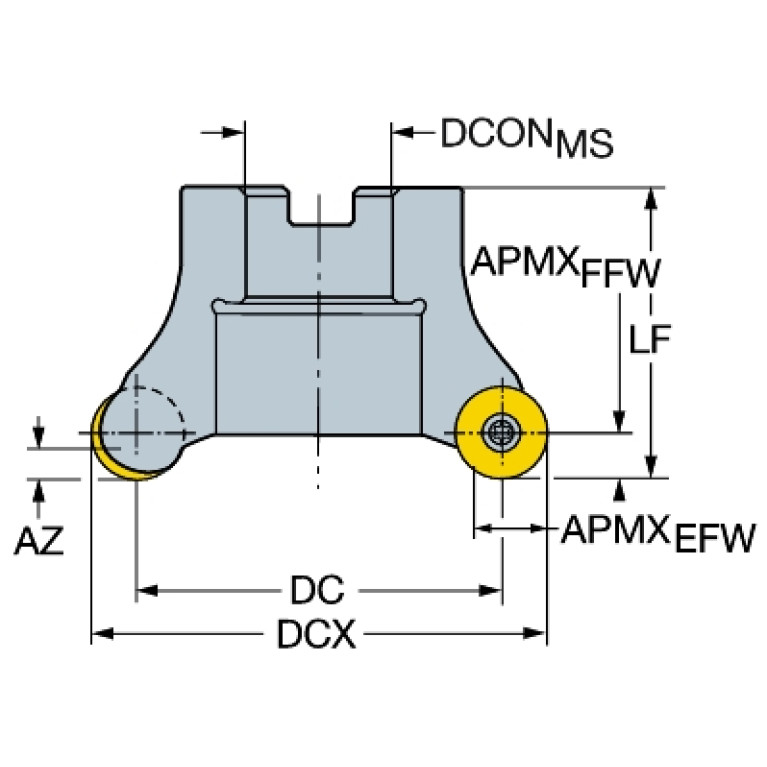

A2A (Clearance angle major Pos. A)

7 Degree

AZ (Plunge depth maximum)

5.8 mm

B3A (Inscribed circle diameter Pos. A)

19.05 mm

BD (Body diameter)

152.4 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

9.525 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

9.525 mm

DC (Cutting diameter)

133.35 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

152.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA15002220

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

-7 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

FDA22S1500$$$$

LOC-03 ISO

FDA22S1500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15002220

MIID (Master insert identification)

RCKT190600

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

2 Degree

RPMX (Rotational speed maximum)

6900 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

3.2 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
