Главная Инструменты 308-01 - Face milling cutter RA200-050J25.4-16M

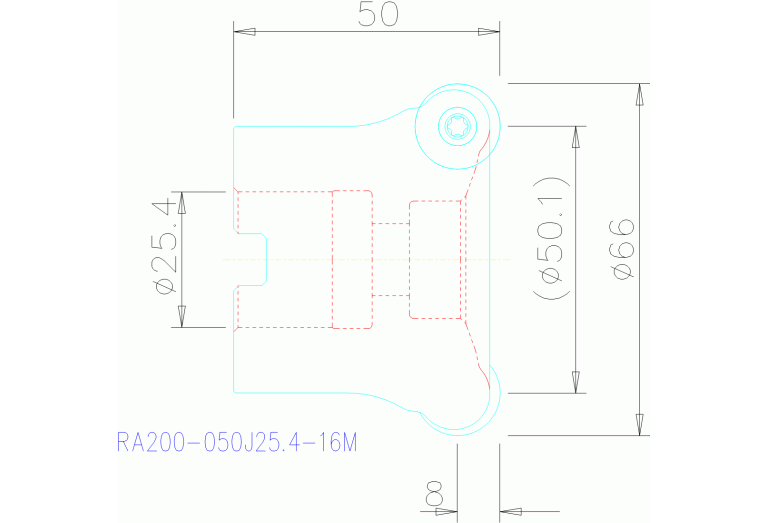

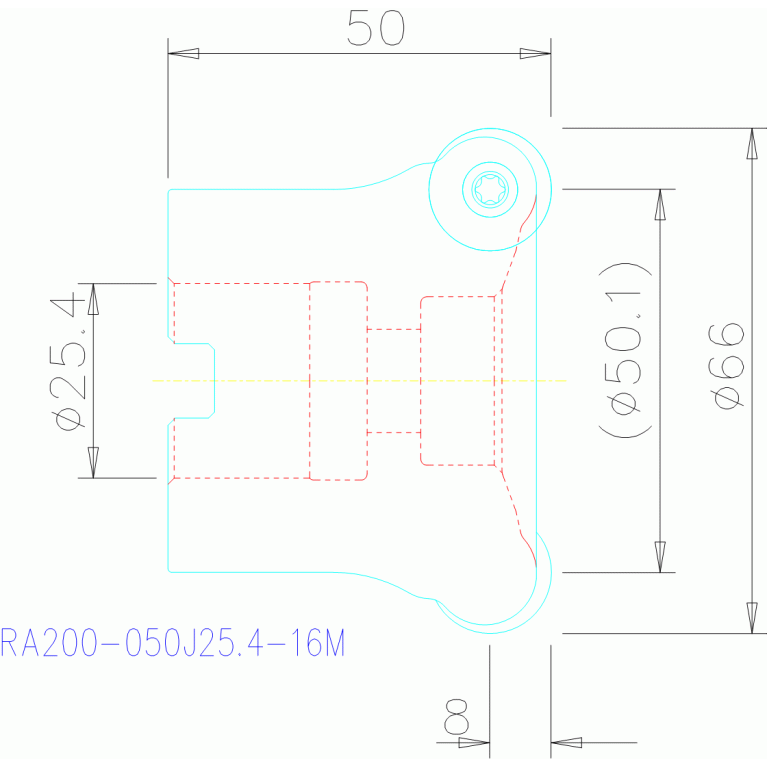

RA200-050J25.4-16M

Артикул: 5739029

В наличии

0 ₽

В корзину

Описание

Характеристики

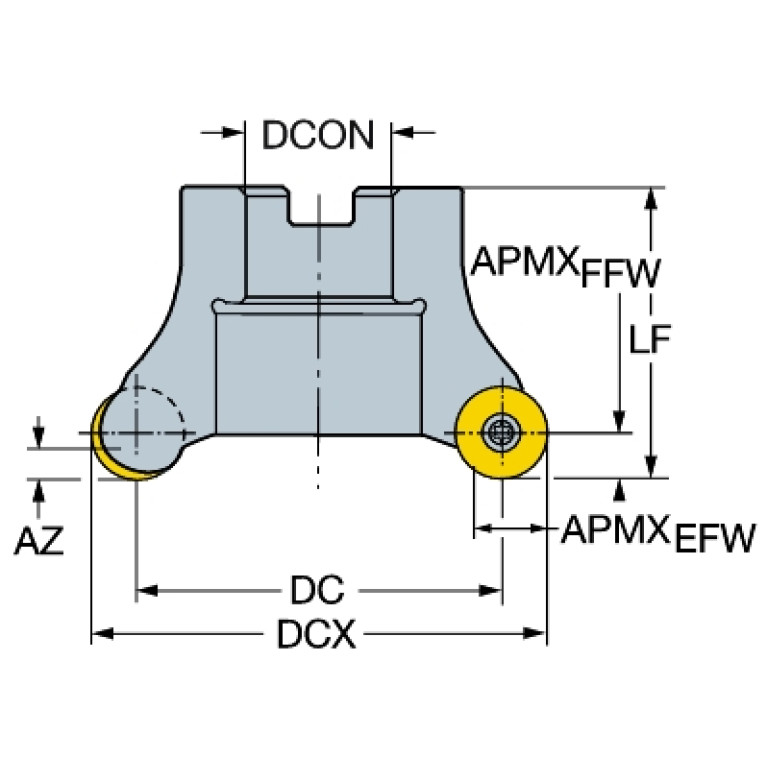

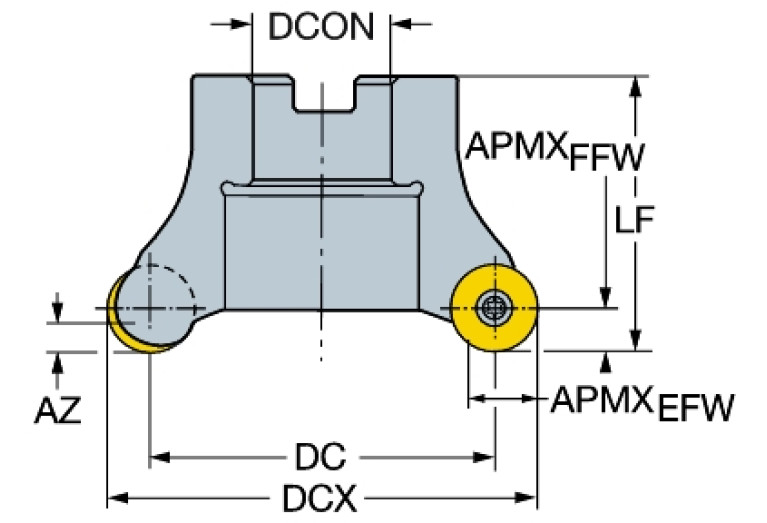

A2A (Clearance angle major Pos. A)

7 Degree

AZ (Plunge depth maximum)

4.9 mm

B3A (Inscribed circle diameter Pos. A)

16 mm

BD (Body diameter)

66 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

8 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

8 mm

DC (Cutting diameter)

50 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

66 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FDA10001220

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12S1000$$$$

LOC-03 ISO

FDA12S1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001220

MIID (Master insert identification)

RCKT1606M0

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

7 Degree

RPMX (Rotational speed maximum)

14500 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

0.897 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
