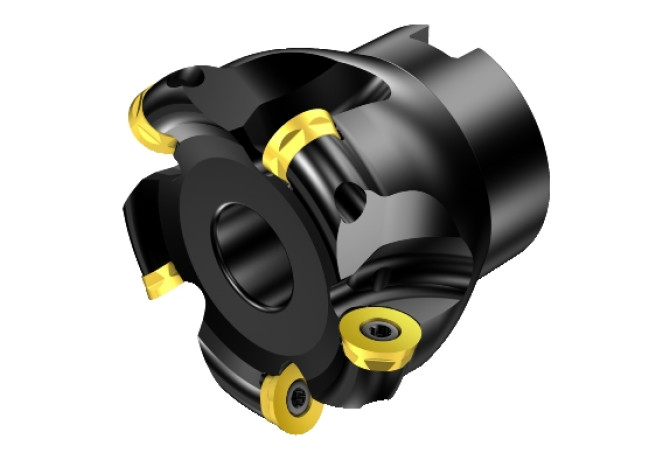

Главная Инструменты 308-01 - Face milling cutter R300-080Q27-20L

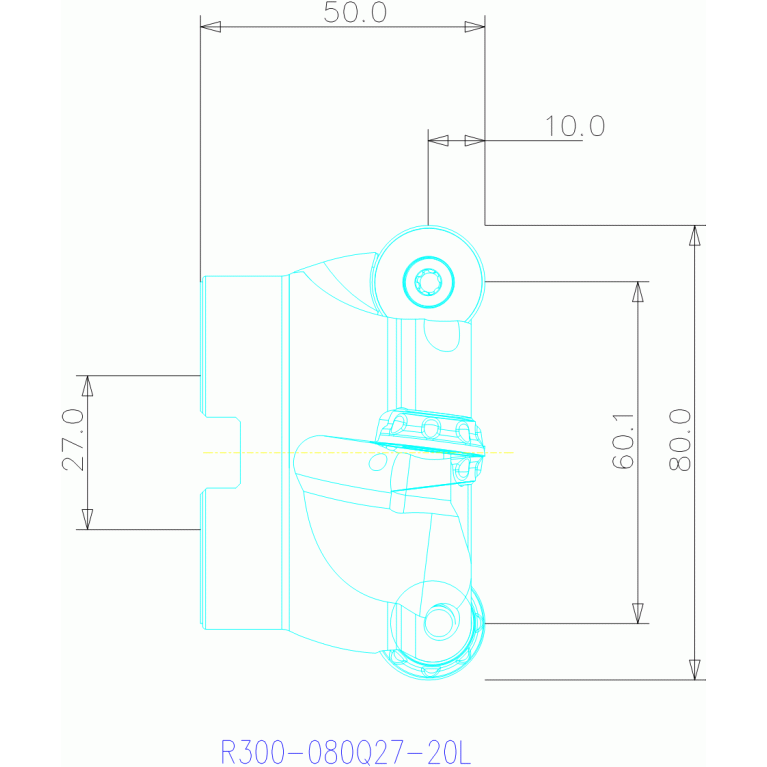

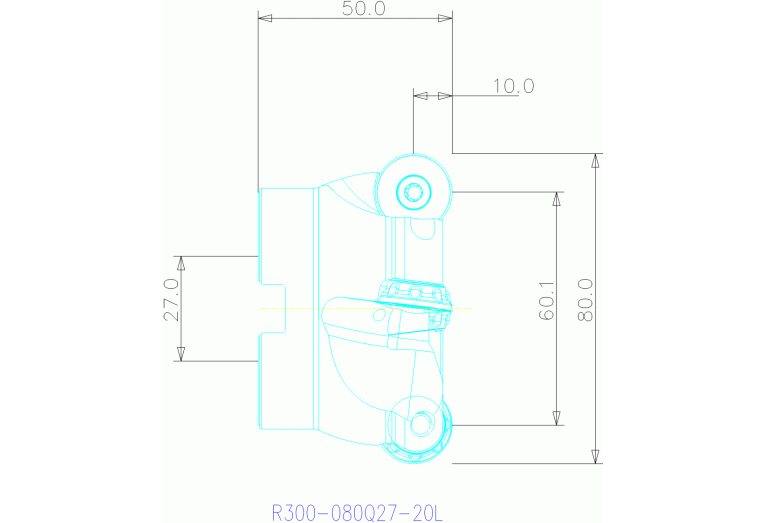

R300-080Q27-20L

R300-080Q27-20L

R300-080Q27-20L

R300-080Q27-20L

R300-080Q27-20L

R300-080Q27-20L

R300-080Q27-20L

SV - Sandvik-Coromant

Артикул: 5744398

В наличии

0 ₽

В корзину

Описание

Характеристики

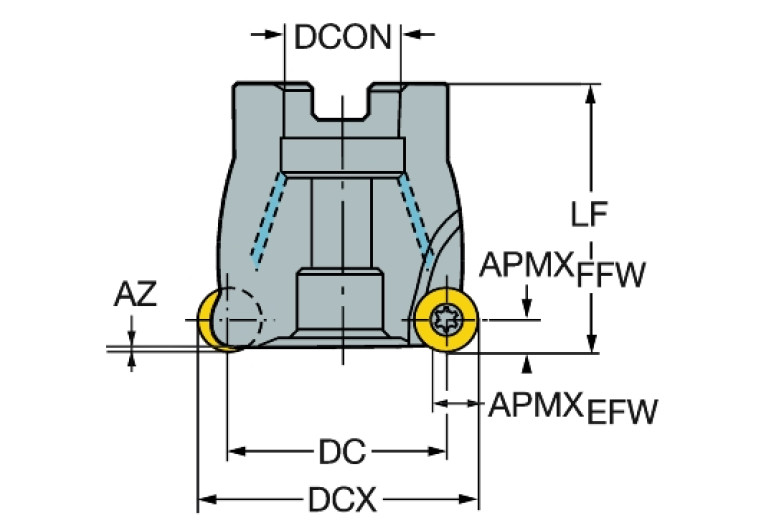

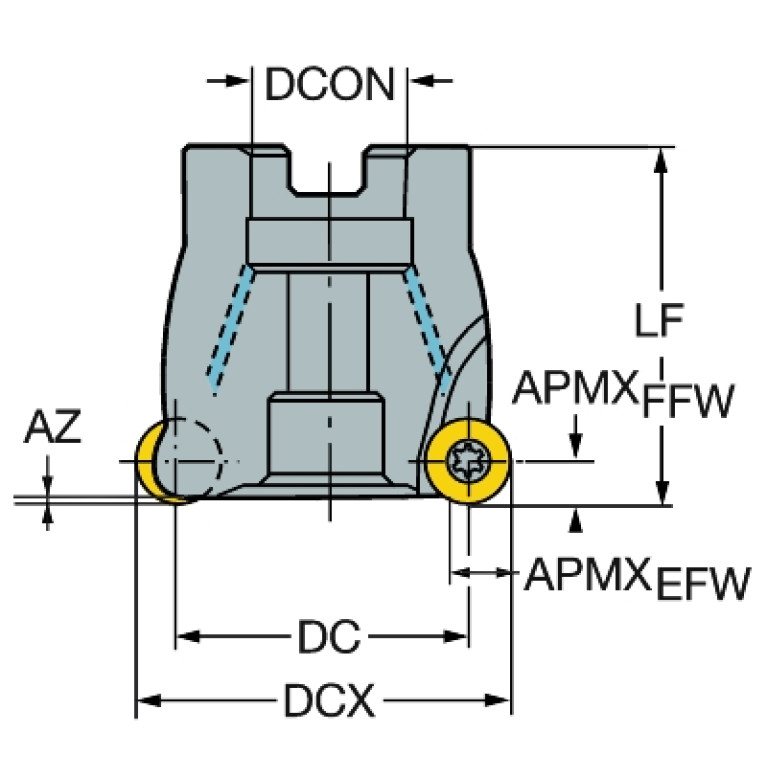

A2A (Clearance angle major Pos. A)

15 Degree

AZ (Plunge depth maximum)

6 mm

B3A (Inscribed circle diameter Pos. A)

20 mm

BI (Block index)

1

BLDA (Tool style code Position A)

10

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.48 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

10 mm

CICT (Cutting item count)

4

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

10 mm

DC (Cutting diameter)

60 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

80 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FDA02701210

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

4

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12G2700$$$$

LOC-03 ISO

FDA12G2700$$$$

LOC-03 (CCFMS Connection code form)

12

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0270

LOC-03 (DCONMS Diameter)

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02701210

MIID (Master insert identification)

R300-2060..

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

6.7 Degree

RPMX (Rotational speed maximum)

15622 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

1.118 kg

ZEFF (Face effective cutting edge count)

4

ZEFP (Peripheral effective cutting edge count)

4
