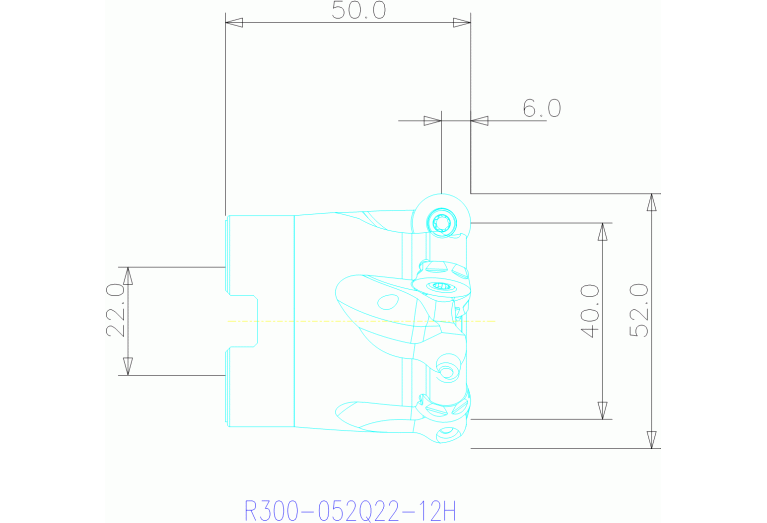

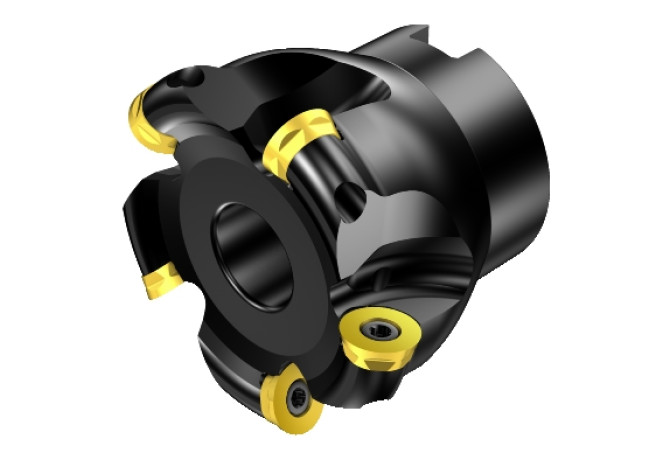

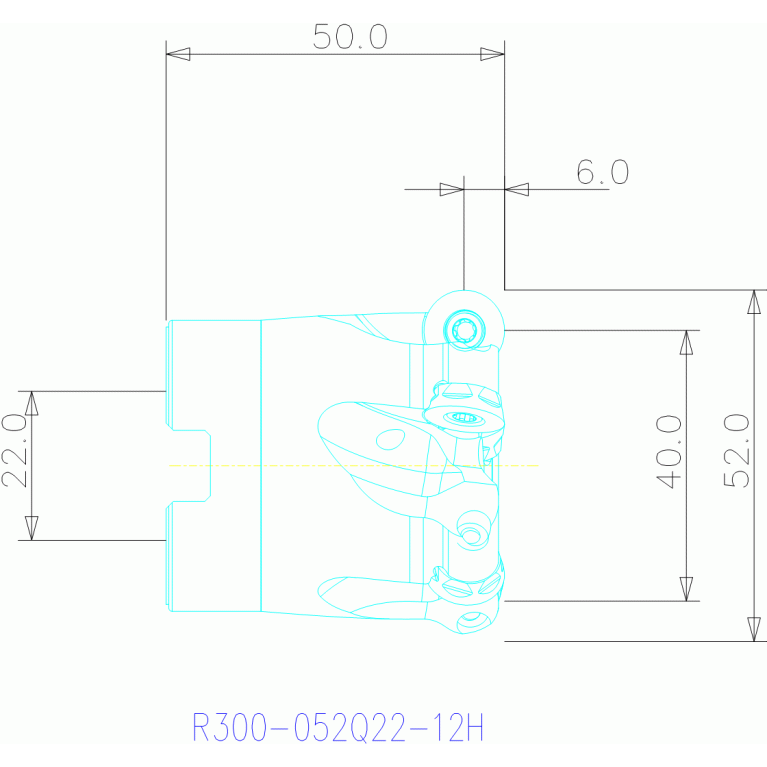

R300-052Q22-12H
R300-052Q22-12H
Артикул:
5744303
В наличии
0 ₽
Характеристики

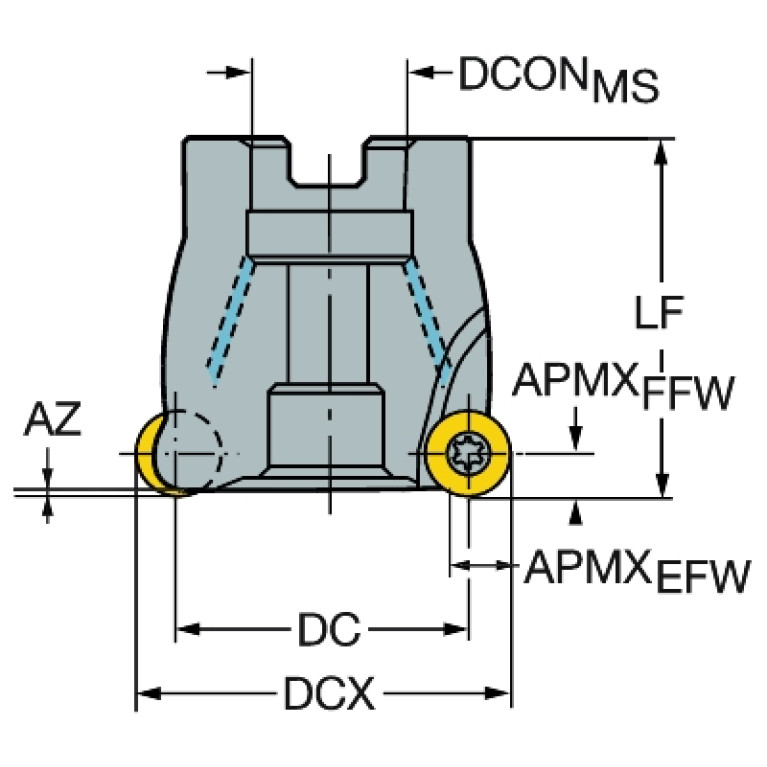

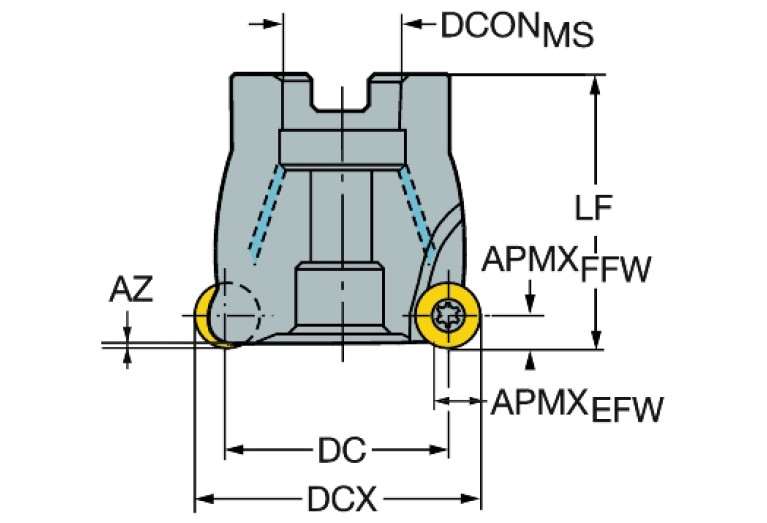

A2A (Clearance angle major Pos. A)
15 Degree
AZ (Plunge depth maximum)
3 mm
B3A (Inscribed circle diameter Pos. A)
12 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.969 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
6 mm
CICT (Cutting item count)
5
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
6 mm
DC (Cutting diameter)
40 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
52 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
FDA02201210
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
5
GAMF (Rake angle radial)
7 Degree
GAMP (Rake angle axial)
0 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA12G2200$$$$
LOC-03 ISO
FDA12G2200$$$$
LOC-03 (CCFMS Connection code form)
12
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0220
LOC-03 (DCONMS Diameter)
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02201210
MIID (Master insert identification)
R300-1240..
OAL (Overall length)
50 mm
RMPX (Ramping angle maximum)
5 Degree
RPMX (Rotational speed maximum)
24400 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling
WT (Weight of item)
0.379 kg
ZEFF (Face effective cutting edge count)
5
ZEFP (Peripheral effective cutting edge count)
5
