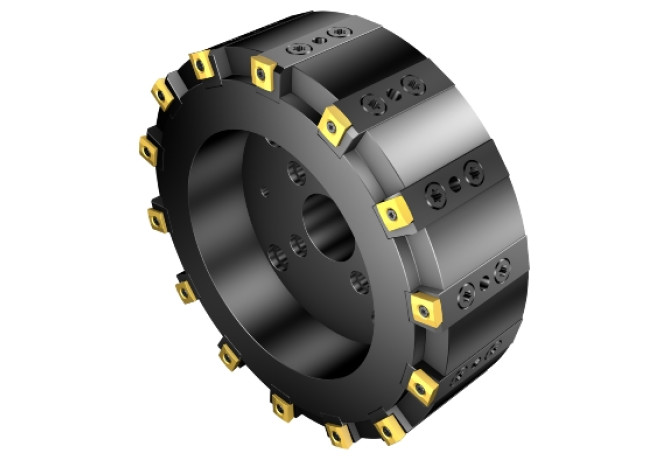

Главная Инструменты 308-01 - Face milling cutter R260.8-125Q40-12H-F

R260.8-125Q40-12H-F

R260.8-125Q40-12H-F R260.8-125Q40-12H-F R260.8-125Q40-12H-F R260.8-125Q40-12H-F

R260.8-125Q40-12H-F

SV - Sandvik-Coromant
Артикул: 5744115
В наличии
0 ₽
В корзину
Описание
Характеристики

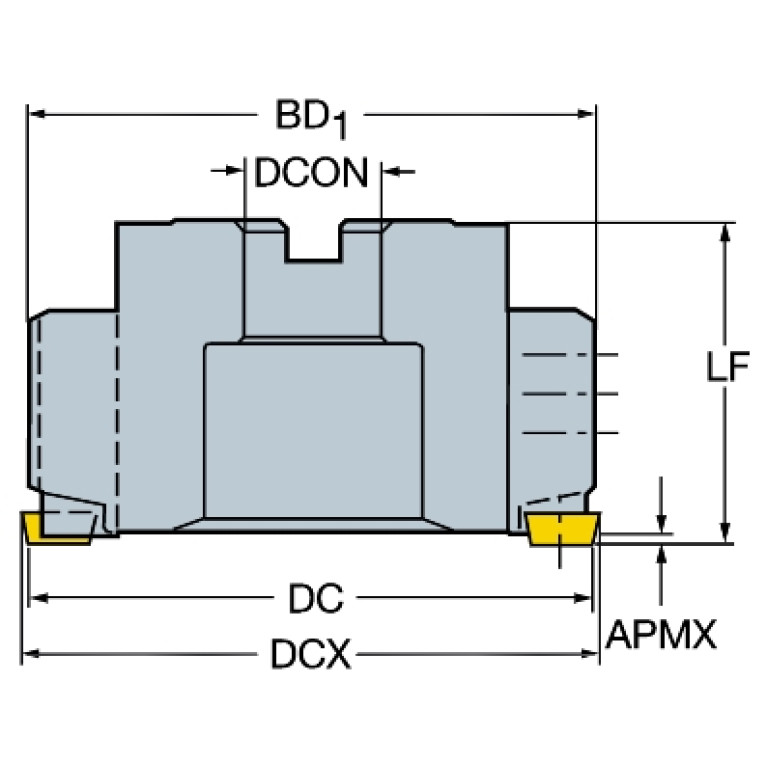

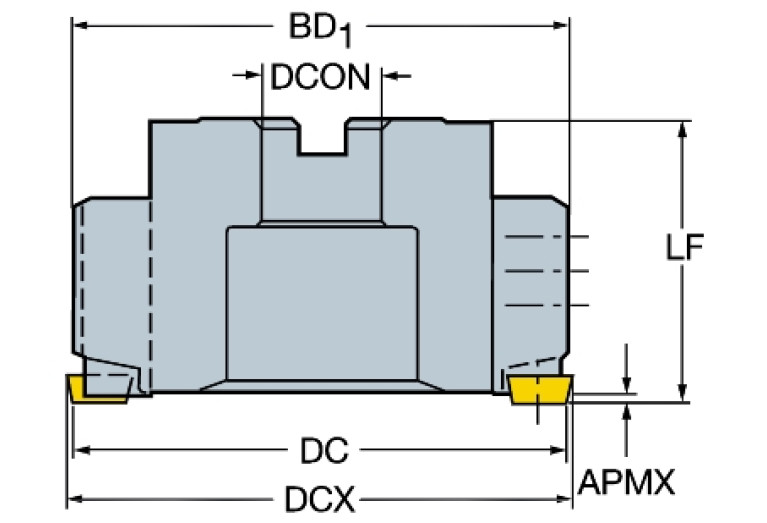

AZ (Plunge depth maximum)
0 mm
B2A (Insert width Pos. A)
4.762 mm

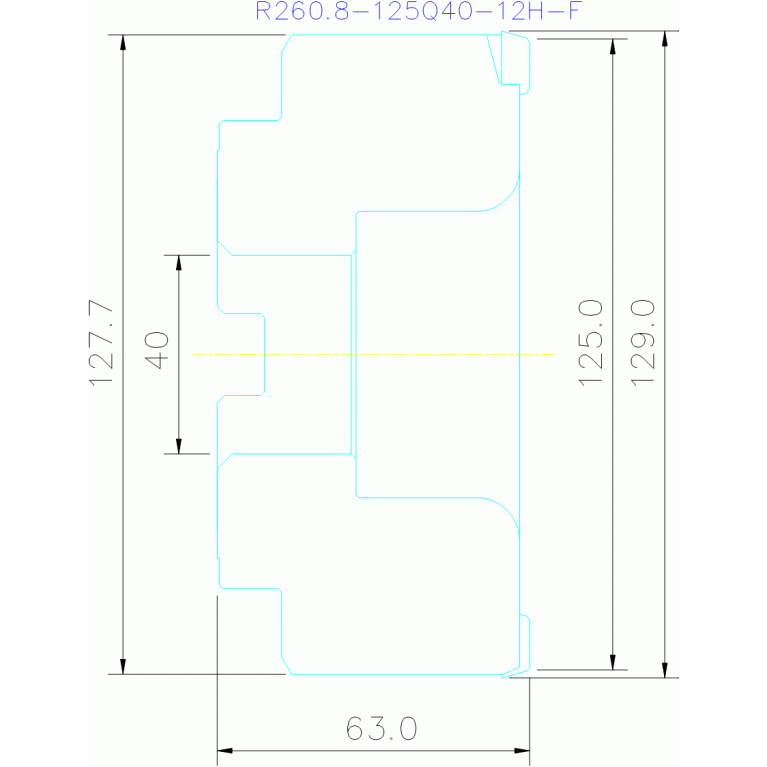

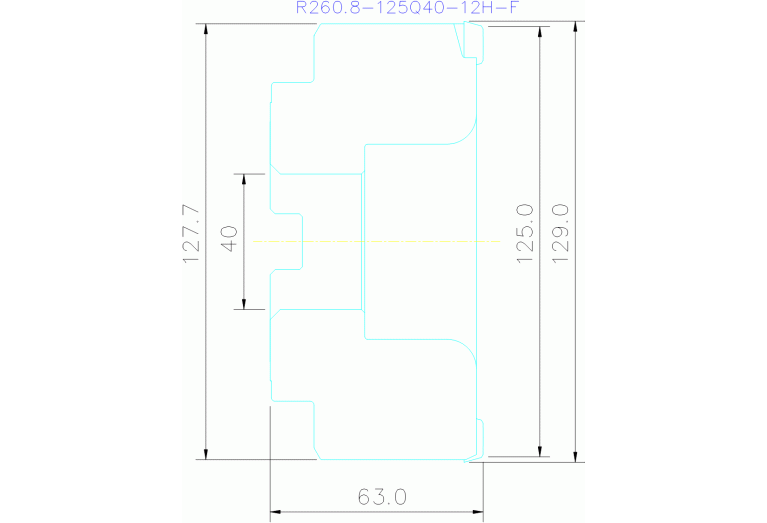

BD (Body diameter)
127.6 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
12.7 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
1 mm
CICT (Cutting item count)
14
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
125 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
129 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA04002200
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
14
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISISO A (Indicator for ISO cutting plate Pos.A)
ISO
FDA22G4000$$$$
KAPR (Tool cutting edge angle)
75 Degree
LOC-03 ISO
FDA22G4000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002200
MIID (Master insert identification)
N260.8-1204-F
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
4785 1/min
Working process
FPL - Face milling
WT (Weight of item)
4.54 kg
ZEFF (Face effective cutting edge count)
14
ZEFP (Peripheral effective cutting edge count)
14
