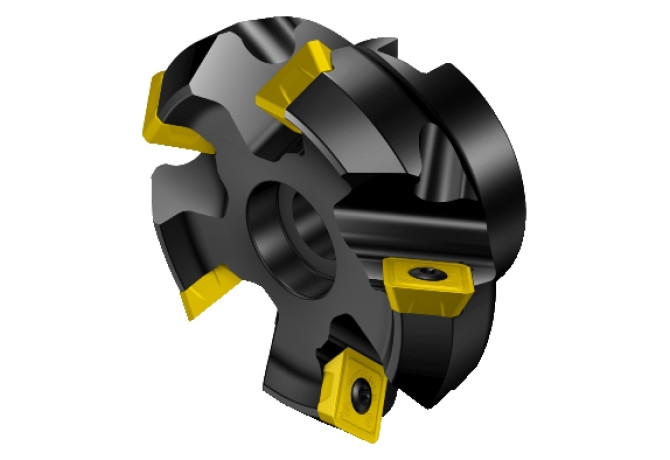

Главная Инструменты 308-01 - Face milling cutter R245-160Q40-12H

R245-160Q40-12H

R245-160Q40-12H R245-160Q40-12H R245-160Q40-12H R245-160Q40-12H

R245-160Q40-12H

SV - Sandvik-Coromant
Артикул: 5743922
В наличии
0 ₽
В корзину
Описание
Характеристики

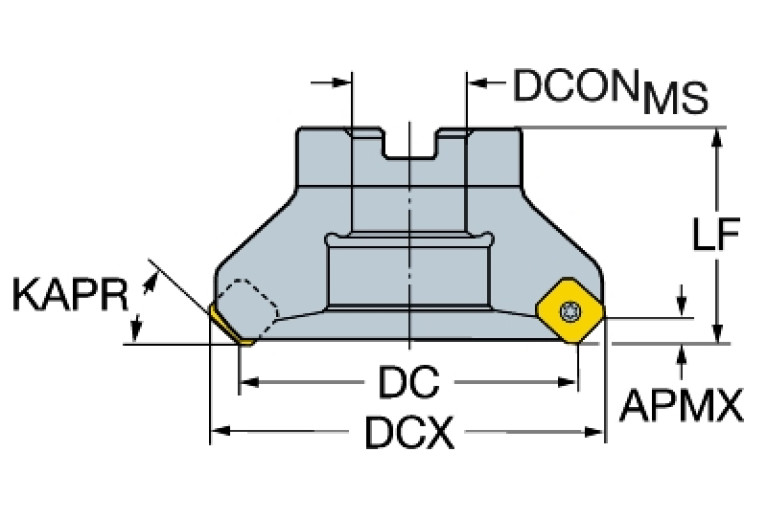

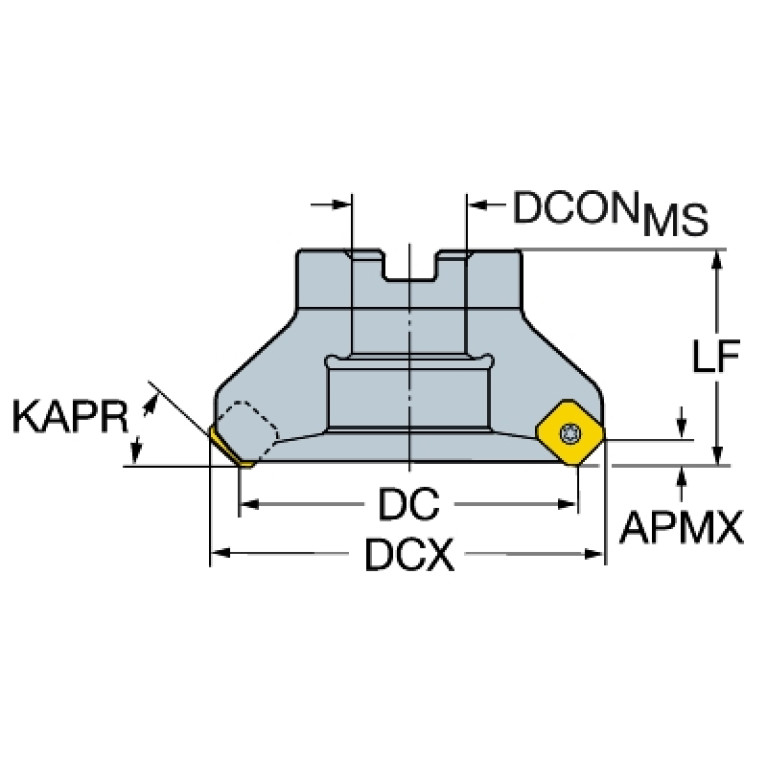

A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
20 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
13.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.969 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
6 mm
CICT (Cutting item count)
16
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit

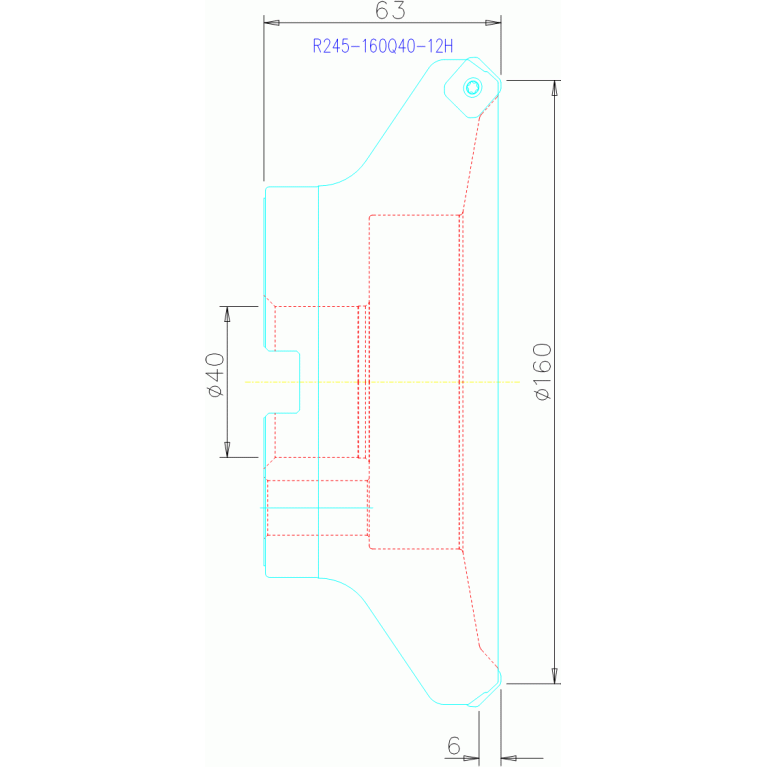

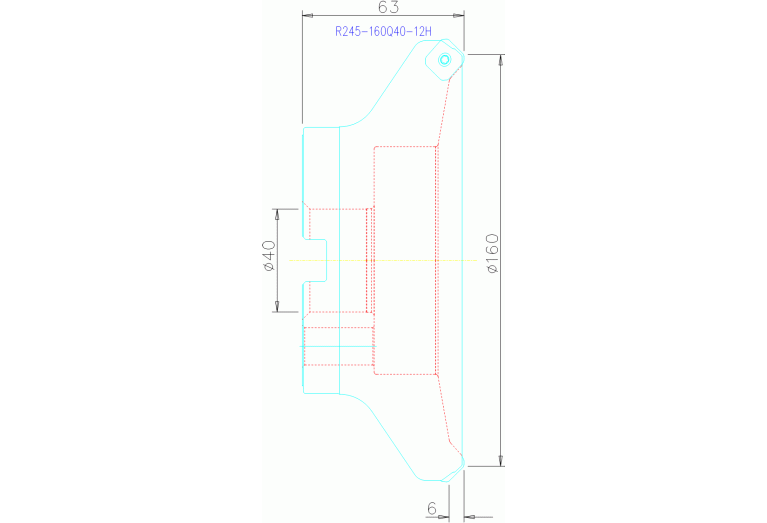

DC (Cutting diameter)
160 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
172.5 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SPK04000103
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
16
GAMF (Rake angle radial)
22.399 Degree
GAMP (Rake angle axial)
-10.656 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK01G4000$$$$
KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
SPK01G4000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000103
MIID (Master insert identification)
R245-12T3..
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
8900 1/min
Working process
FPL - Face milling
WT (Weight of item)
4.1 kg
ZEFF (Face effective cutting edge count)
16
ZEFP (Peripheral effective cutting edge count)
16
