Главная Инструменты 308-01 - Face milling cutter R200-038Q22-12H

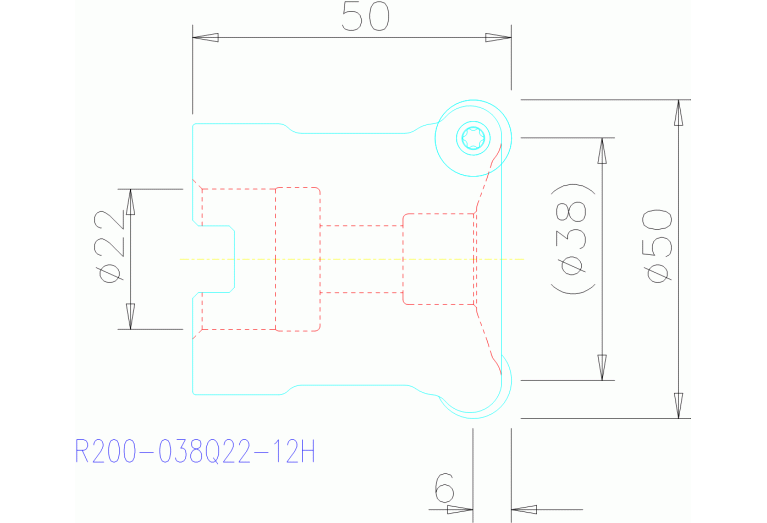

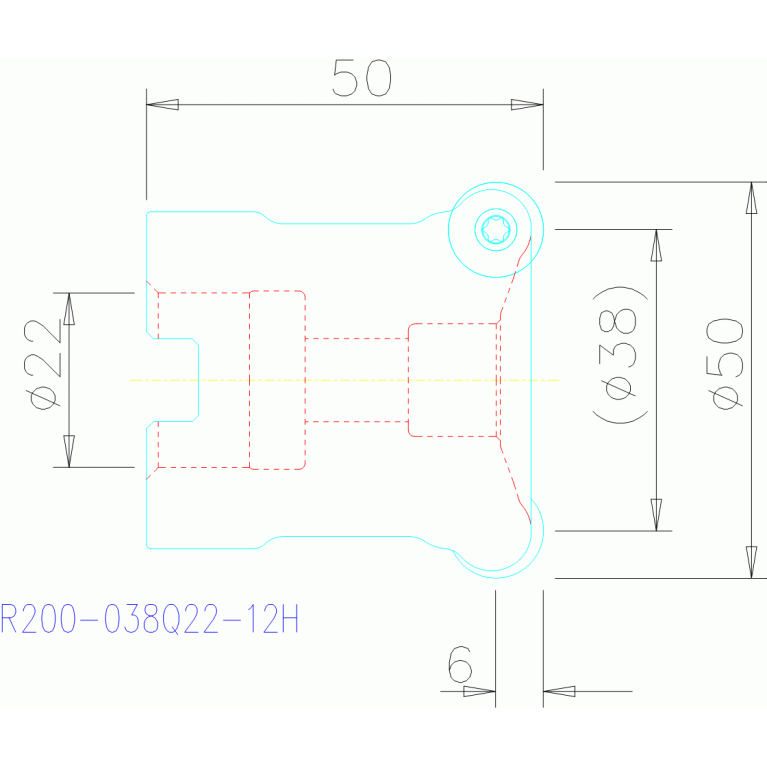

R200-038Q22-12H

Артикул: 5742582

В наличии

0 ₽

В корзину

Описание

Характеристики

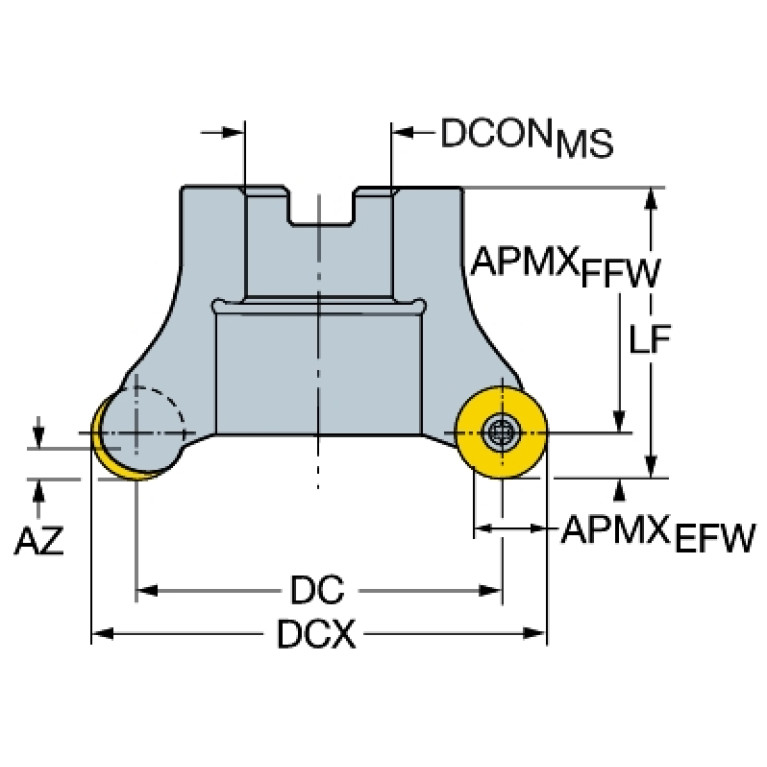

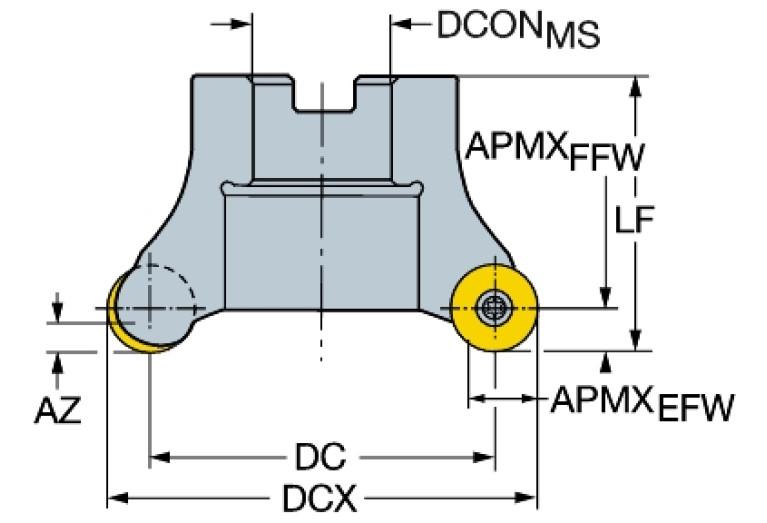

A2A (Clearance angle major Pos. A)

7 Degree

AZ (Plunge depth maximum)

3.7 mm

B3A (Inscribed circle diameter Pos. A)

12 mm

BD (Body diameter)

50 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

6 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

6 mm

DC (Cutting diameter)

38 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

50 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA02201200

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

-7 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

FDA12G2200$$$$

LOC-03 ISO

FDA12G2200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0220

LOC-03 (DCONMS Diameter)

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201200

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

6.5 Degree

RPMX (Rotational speed maximum)

18800 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

0.4 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
