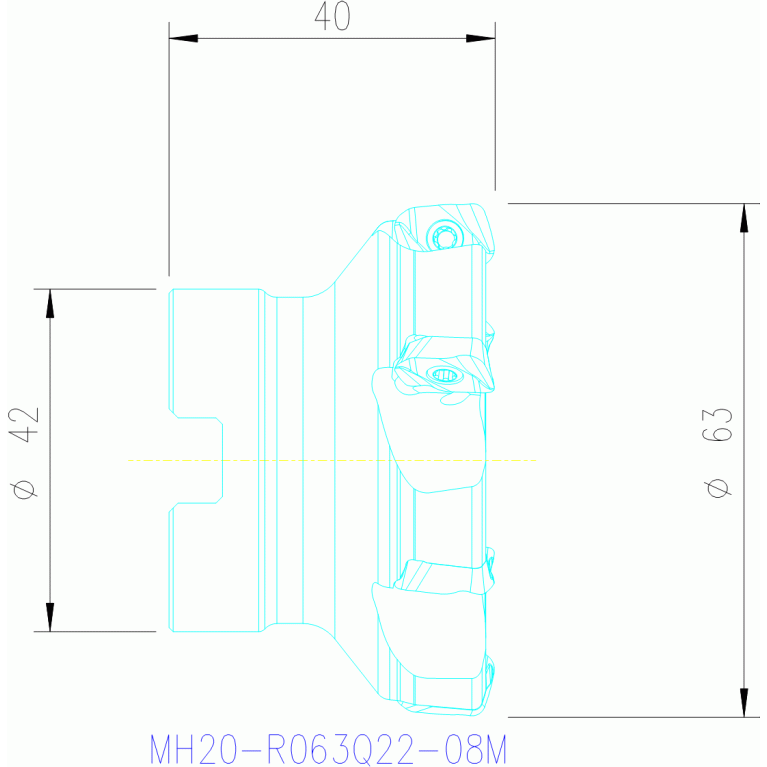

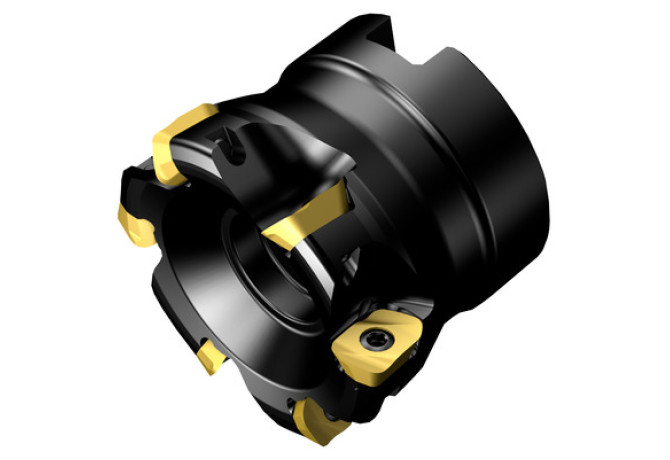

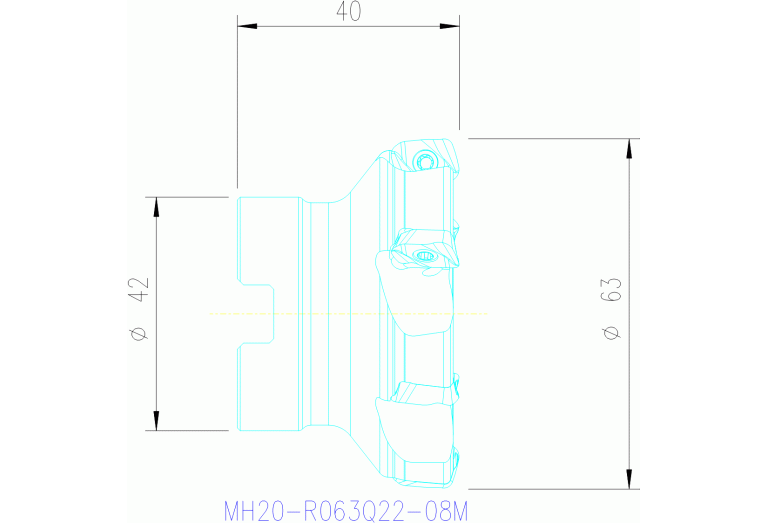

Главная Инструменты 308-01 - Face milling cutter MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

MH20-R063Q22-08M

SV - Sandvik-Coromant

Артикул: 8352811

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

12.3 Degree

AZ (Plunge depth maximum)

0.9 mm

B1A (Cutting edge length Pos. A)

6.6 mm

B2A (Insert width Pos. A)

8.5 mm

B3A (Inscribed circle diameter Pos. A)

8.5 mm

BI (Block index)

1

BLDA (Tool style code Position A)

4

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.03 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

1.2 mm

CICT (Cutting item count)

6

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

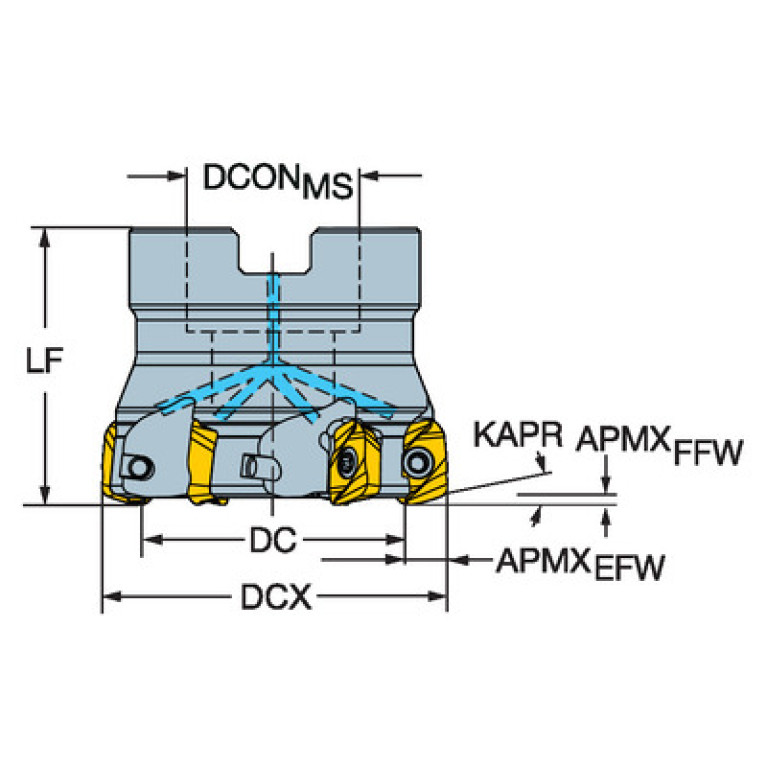

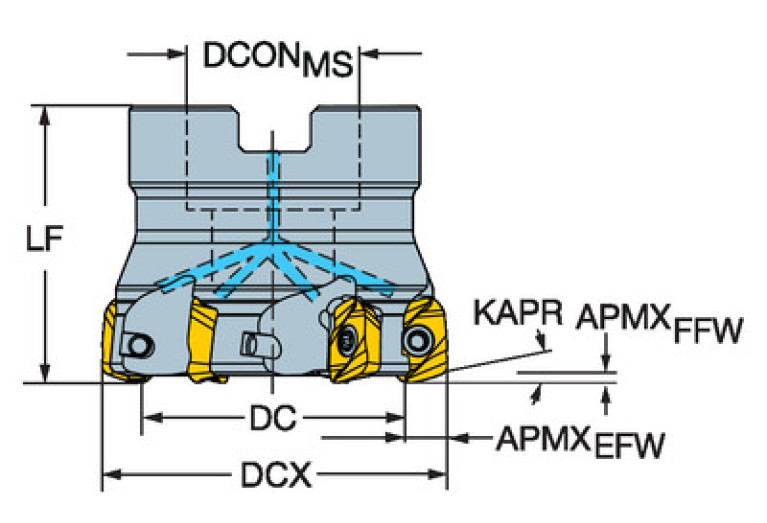

DC (Cutting diameter)

52.35 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

63 mm

Delivery state valid from

12/1/2023

DIN

FDA02201210

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

6

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12G2200$$$$

KAPR (Tool cutting edge angle)

15 Degree

LOC-03 ISO

FDA12G2200$$$$

LOC-03 (CCFMS Connection code form)

12

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0220

LOC-03 (DCONMS Diameter)

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201210

MIID (Master insert identification)

MH20-080425..

OAL (Overall length)

40 mm

RMPX (Ramping angle maximum)

1.5 Degree

RPMX (Rotational speed maximum)

13200 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

0.407 kg

ZEFF (Face effective cutting edge count)

6

ZEFP (Peripheral effective cutting edge count)

6
