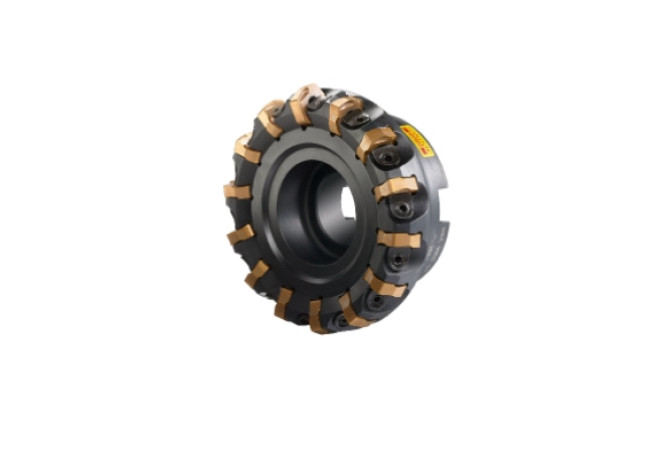

Главная Инструменты 308-01 - Face milling cutter L365-200Q60-W15H

L365-200Q60-W15H

Артикул: 5735336

В наличии

0 ₽

В корзину

Описание

Характеристики

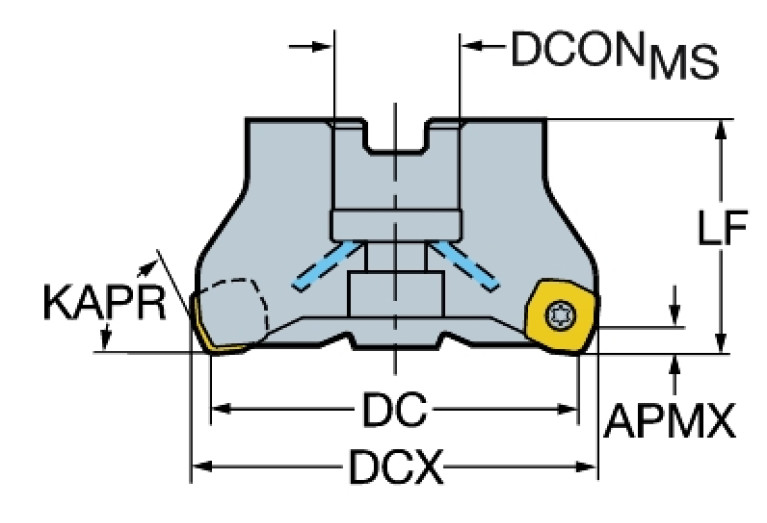

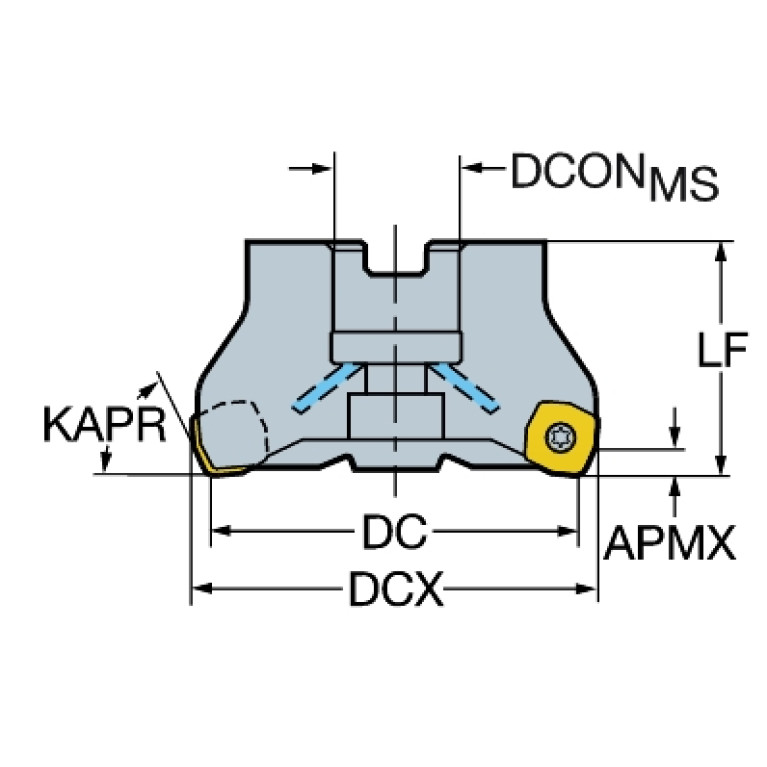

A2A (Clearance angle major Pos. A)

0 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

15 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.66 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

6 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

200 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

205.6 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SPK06000203

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

SPK02G6000$$$$

KAPR (Tool cutting edge angle)

65 Degree

LOC-03 ISO

SPK02G6000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0600

LOC-03 (DCONMS Diameter)

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK06000203

MIID (Master insert identification)

L365-1505ZNE

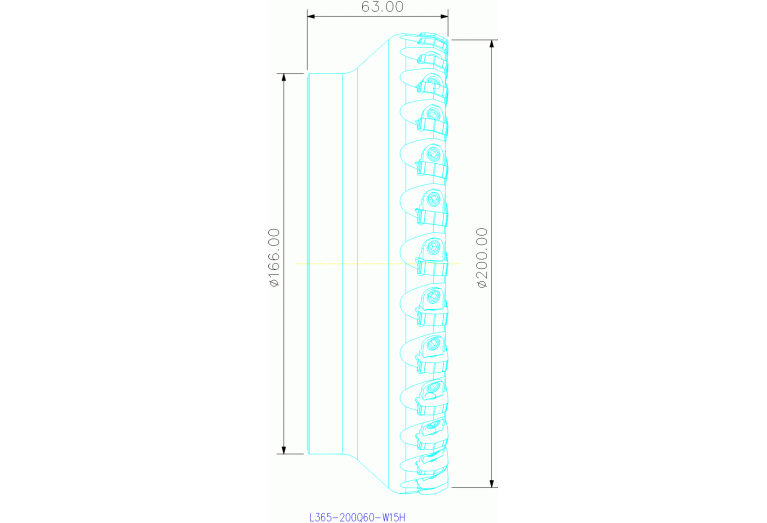

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

6800 1/min

Working process

FPL - Face milling

WT (Weight of item)

12.92 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
