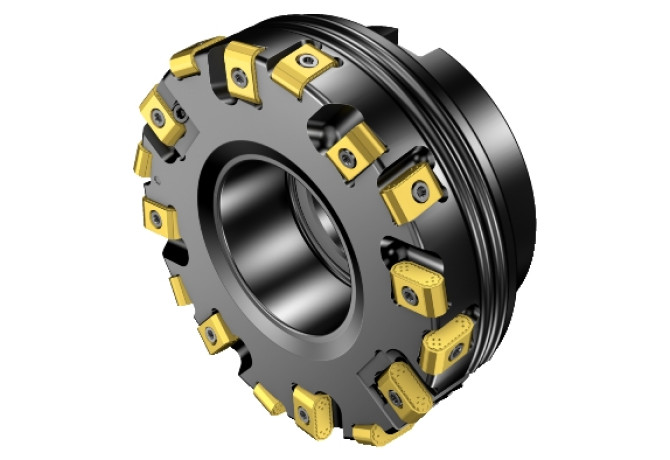

Главная Инструменты 308-01 - Face milling cutter A425-203R63-17H

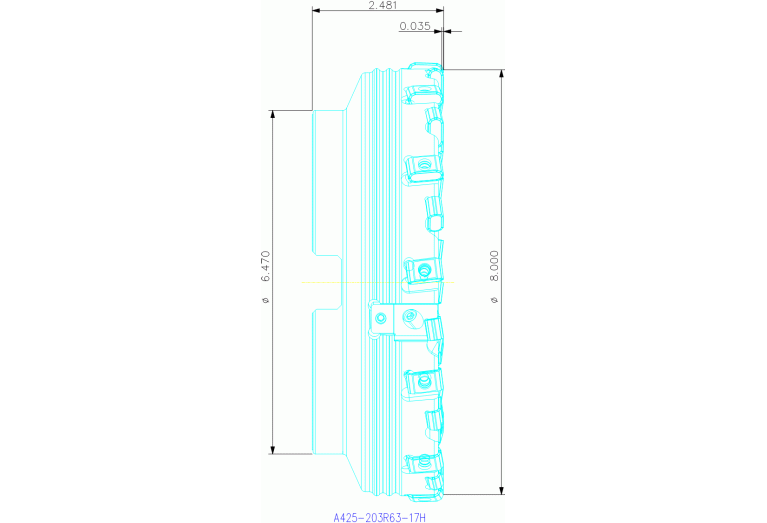

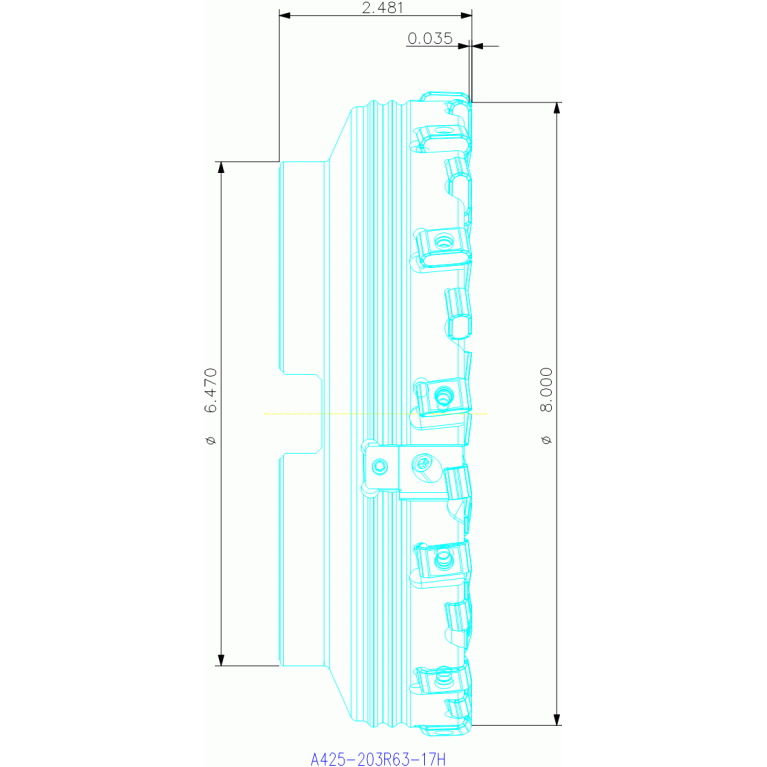

A425-203R63-17H

A425-203R63-17H A425-203R63-17H A425-203R63-17H A425-203R63-17H

A425-203R63-17H

SV - Sandvik-Coromant
Артикул: 6717899
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
AZ (Plunge depth maximum)
0 mm
B1A (Cutting edge length Pos. A)
17 mm
B2A (Insert width Pos. A)
7.5 mm
B3A (Inscribed circle diameter Pos. A)
7.5 mm
BD (Body diameter)
204.3 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
10 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
0.9 mm
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
203.2 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
210.2 mm
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
164.3 mm
DIN
SPK25000223
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
12
GAMF (Rake angle radial)
-10.947 Degree
GAMP (Rake angle axial)
7.084 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK02S2500$$$$
KAPR (Tool cutting edge angle)
25 Degree
LOC-03 ISO
SPK02S2500$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
2500
LOC-03 (DCONMS Diameter)
63.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK25000223
MIID (Master insert identification)
425N-1707
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
2350 1/min
Working process
FPL - Face milling
WT (Weight of item)
10 kg
ZEFF (Face effective cutting edge count)
24
ZEFP (Peripheral effective cutting edge count)
24
