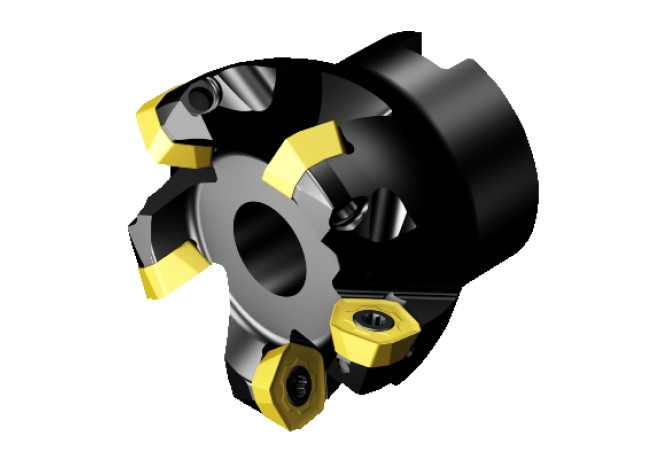

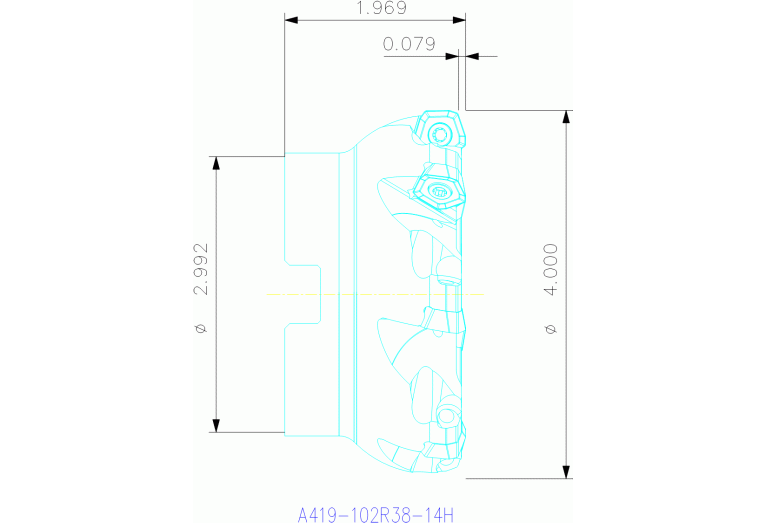

A419-102R38-14H
A419-102R38-14H
Артикул:
6289914
В наличии
0 ₽
Характеристики

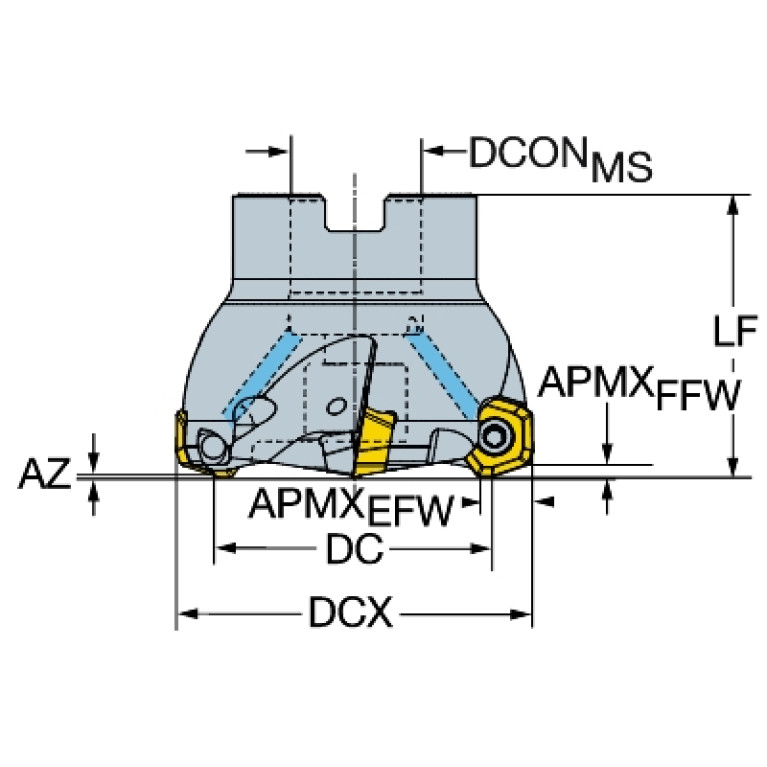

A1A (Cutting edge angle major Pos. A)
108 Degree
A2A (Clearance angle major Pos. A)
15 Degree
AZ (Plunge depth maximum)
1 mm
B3A (Inscribed circle diameter Pos. A)
13.5 mm
BI (Block index)
1
BLDA (Tool style code Position A)
6
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5.47 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
2 mm
CICT (Cutting item count)
7
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
86.9 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
101.6 mm
Delivery state valid from
12/1/2023
DIN
FDA15002230
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
7
GAMF (Rake angle radial)
9.148 Degree
GAMP (Rake angle axial)
4.227 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1500$$$$
KAPR (Tool cutting edge angle)
19 Degree
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
MIID (Master insert identification)
419R-1405
OAL (Overall length)
50 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
11300 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
1.35 kg
ZEFF (Face effective cutting edge count)
7
ZEFP (Peripheral effective cutting edge count)
7
