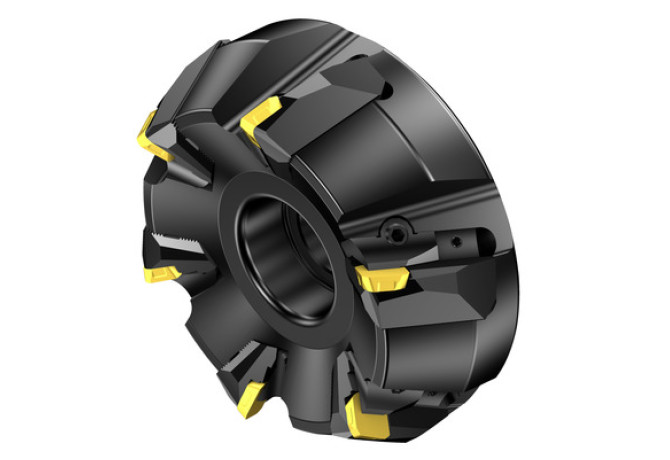

A360-160J38-Z6D19
A360-160J38-Z6D19
Артикул:
5722616
В наличии
0 ₽
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
18.94 mm
BD (Body diameter)
186.6 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
6.35 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
13 mm
CICT (Cutting item count)
6
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit

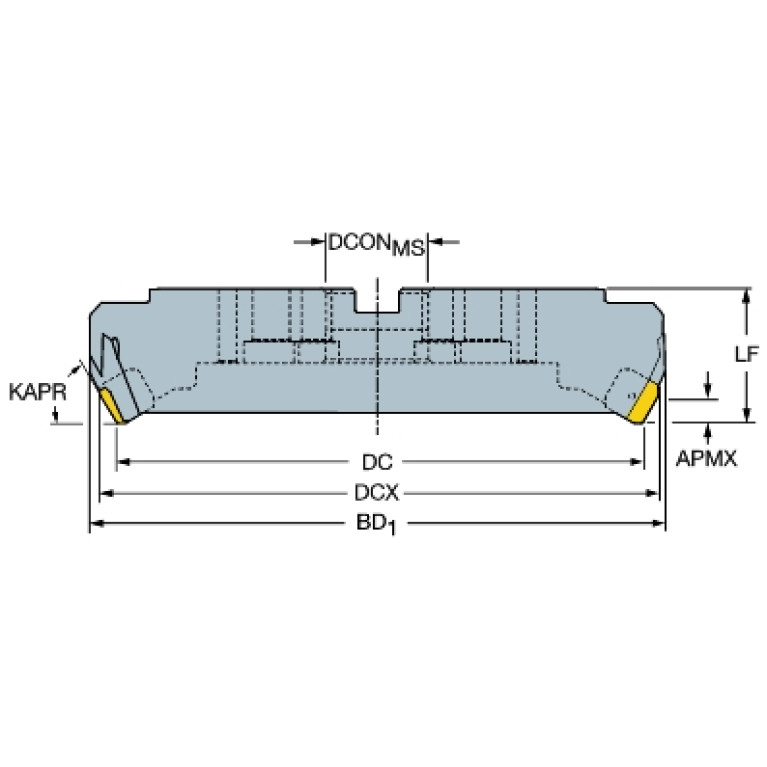

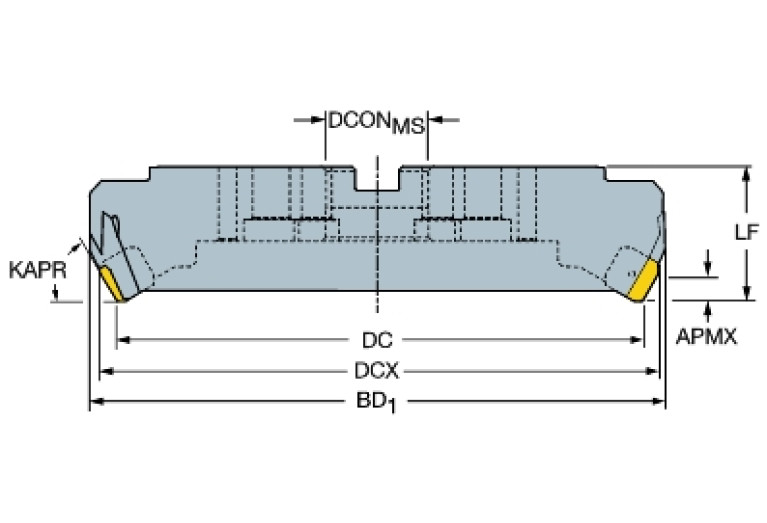

DC (Cutting diameter)
160 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
175 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA15002220
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
6
GAMF (Rake angle radial)
13.649 Degree
GAMP (Rake angle axial)
-13.122 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1500$$$$
KAPR (Tool cutting edge angle)
60 Degree
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002220
MIID (Master insert identification)
360R-1906

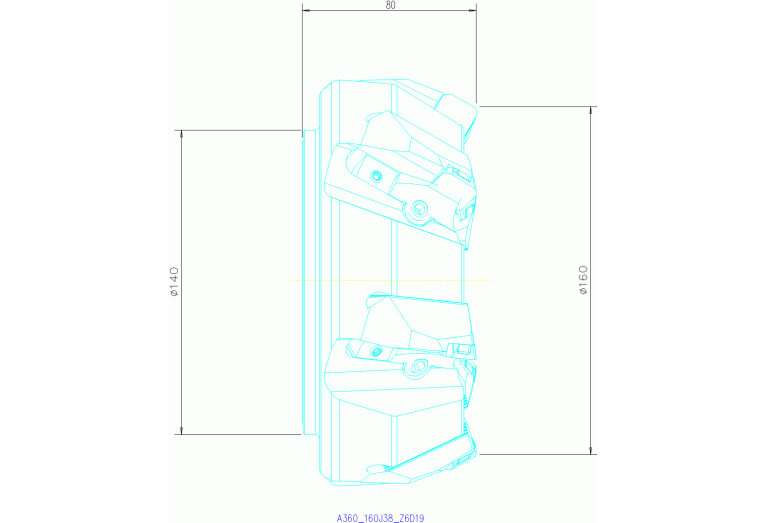

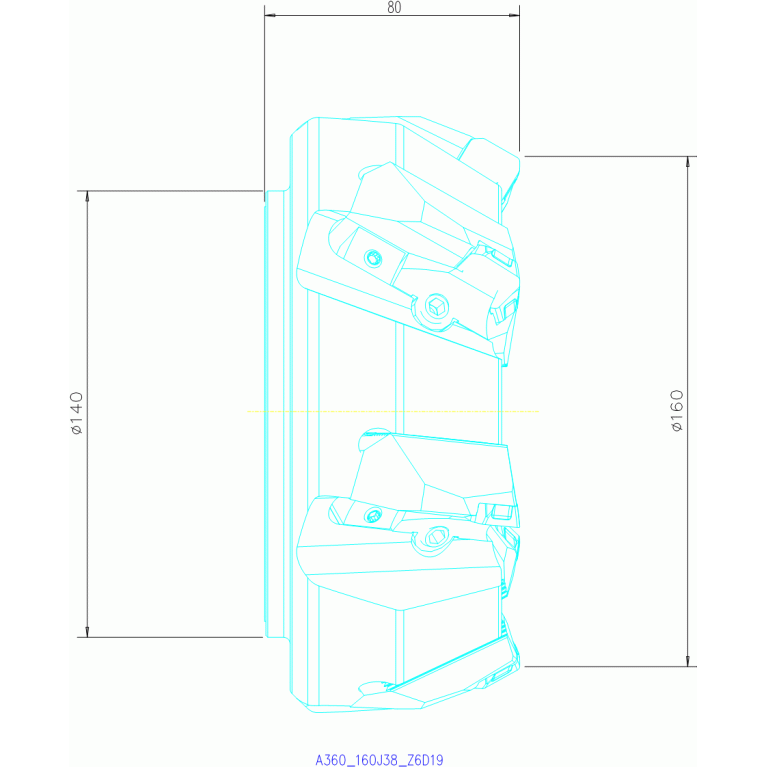

OAL (Overall length)
80 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
795 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
16.6 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
