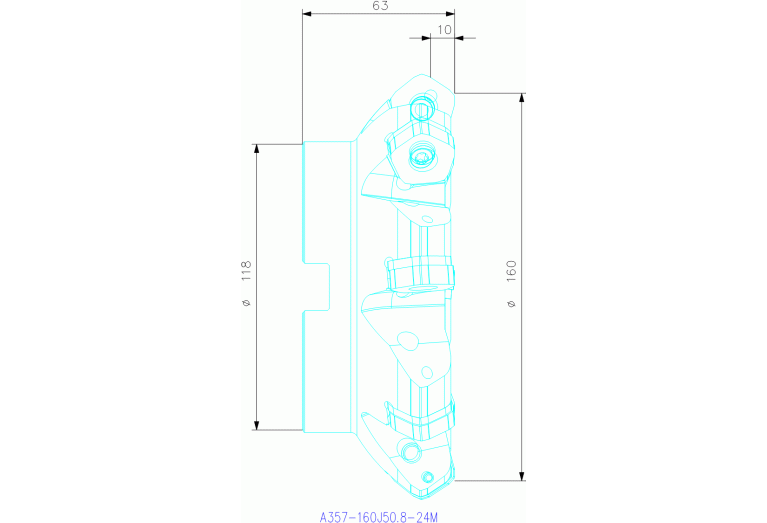

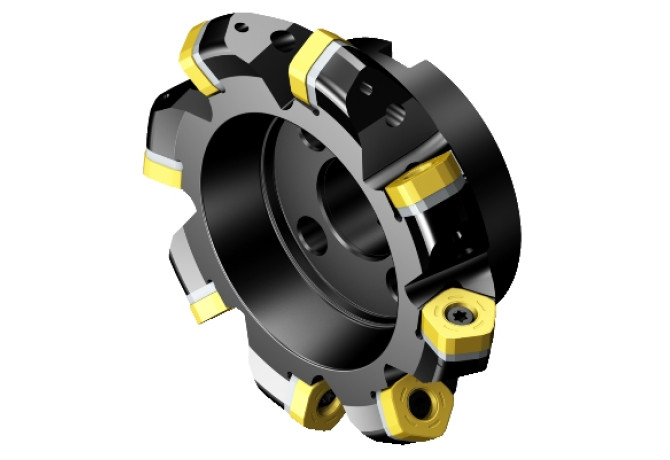

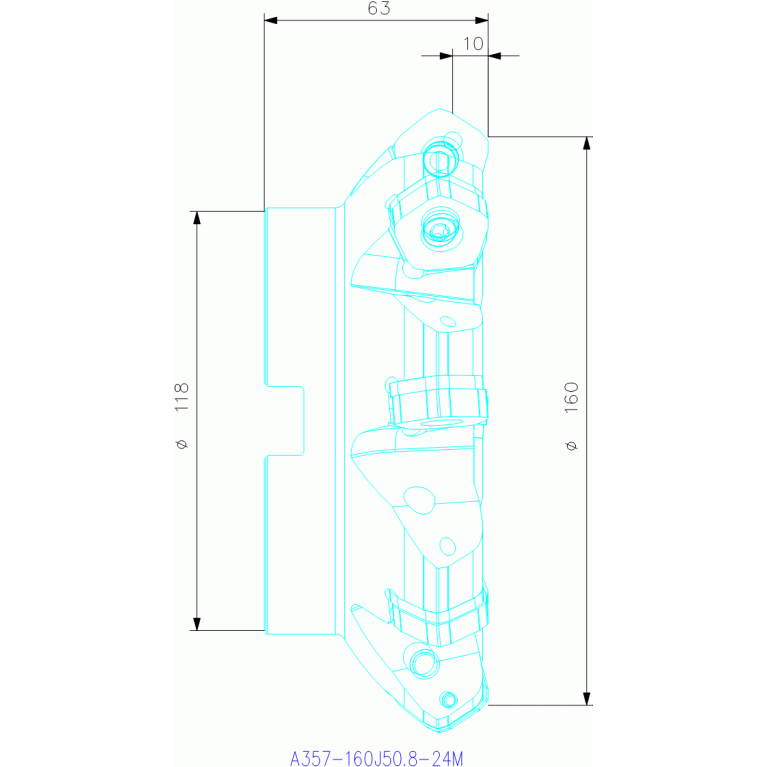

Главная Инструменты 308-01 - Face milling cutter A357-160J50.8-24M

A357-160J50.8-24M

A357-160J50.8-24M A357-160J50.8-24M A357-160J50.8-24M A357-160J50.8-24M

A357-160J50.8-24M

SV - Sandvik-Coromant
Артикул: 6289843
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
108 Degree
A2A (Clearance angle major Pos. A)
0 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
24.4 mm
BI (Block index)
1
BLDA (Tool style code Position A)
6
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
7.94 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
10 mm
CICT (Cutting item count)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit

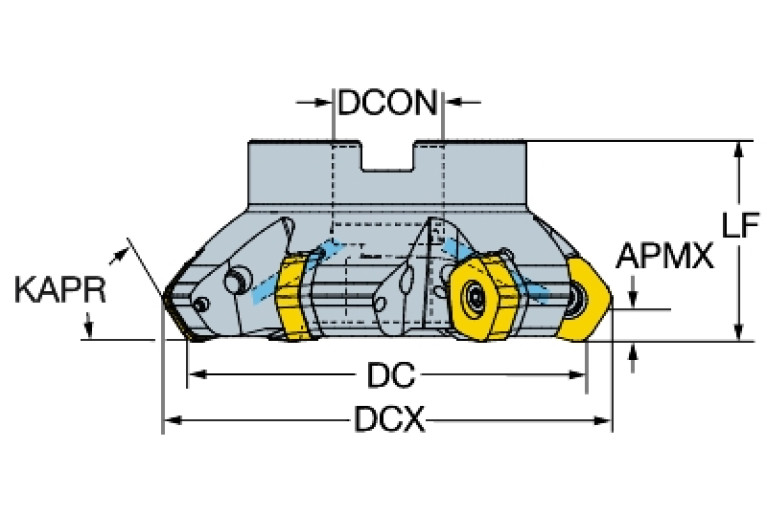

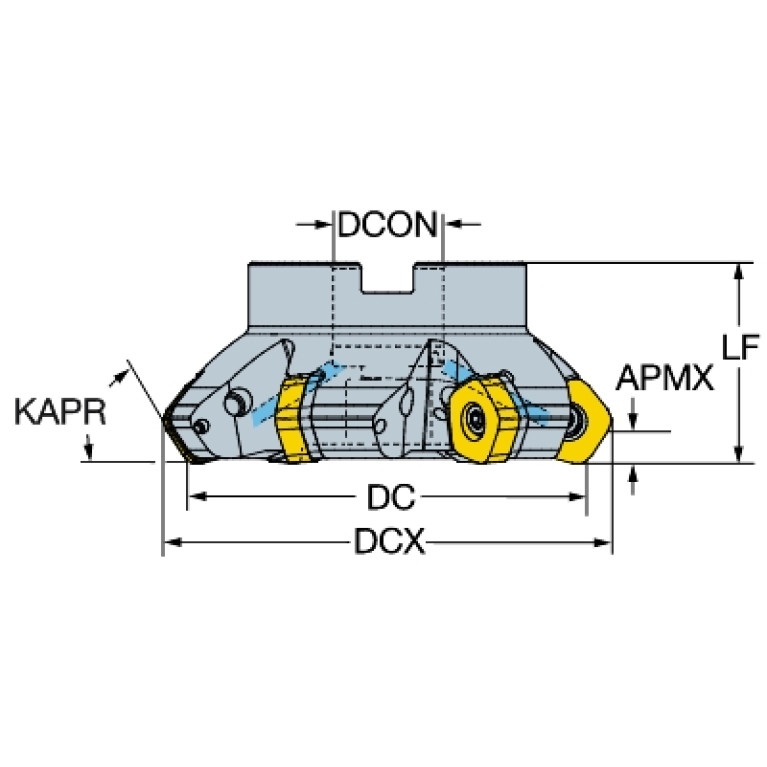

DC (Cutting diameter)
160 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
175.8 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA20002220
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
8
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISISO A (Indicator for ISO cutting plate Pos.A)
ISO
FDA22S2000$$$$
KAPR (Tool cutting edge angle)
57 Degree
LOC-03 ISO
FDA22S2000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
2000
LOC-03 (DCONMS Diameter)
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA20002220
MIID (Master insert identification)
357R-2408
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
4000 1/min
Working process
FPL - Face milling
WT (Weight of item)
5.5 kg
ZEFF (Face effective cutting edge count)
8
ZEFP (Peripheral effective cutting edge count)
8
