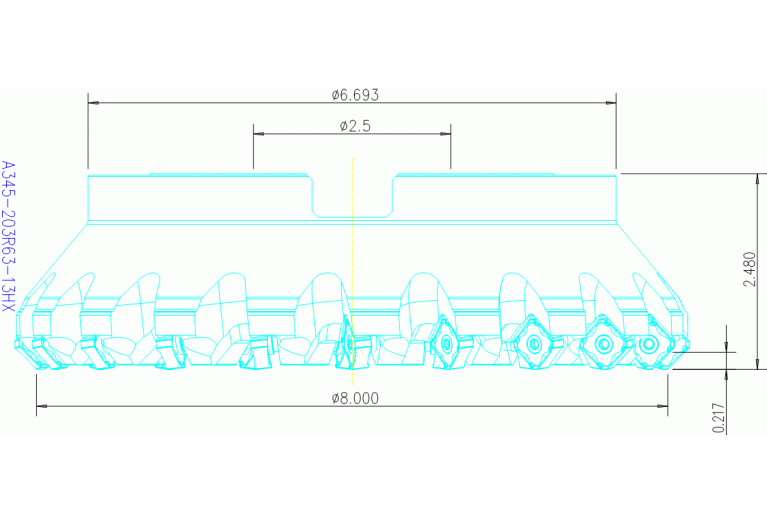

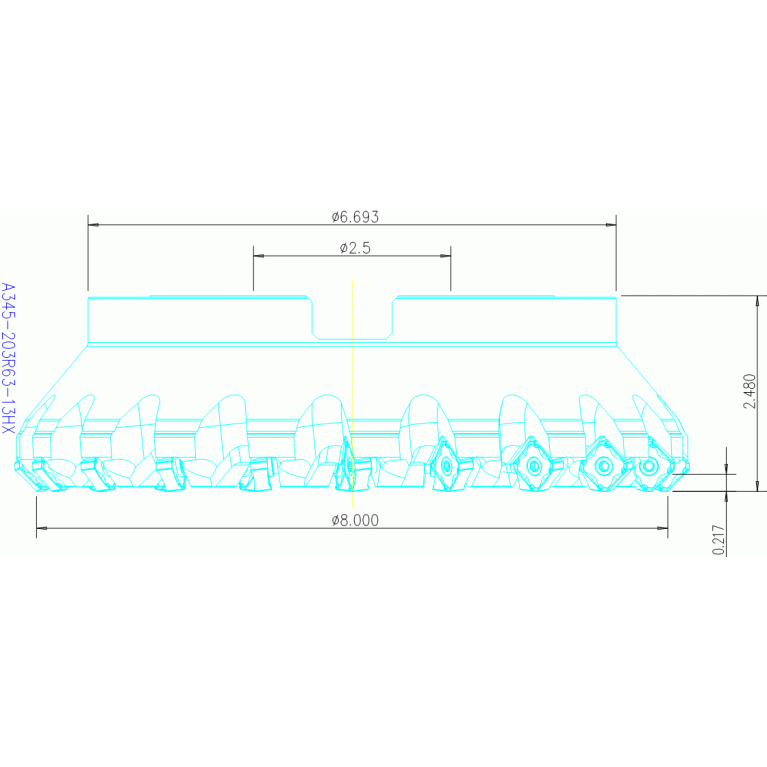

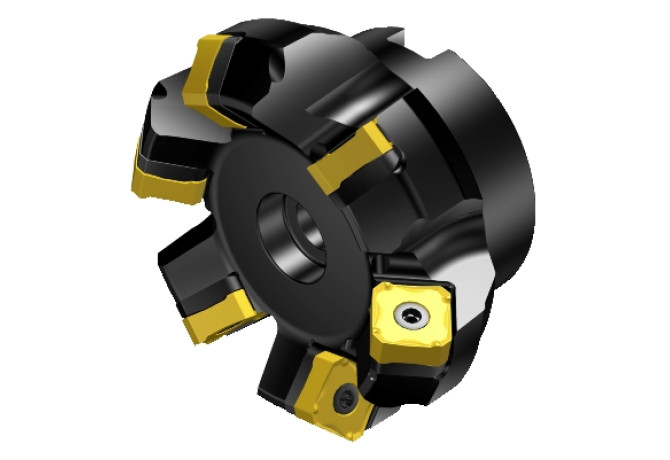

Главная Инструменты 308-01 - Face milling cutter A345-203R63-13HX

A345-203R63-13HX

A345-203R63-13HX A345-203R63-13HX A345-203R63-13HX A345-203R63-13HX

A345-203R63-13HX

SV - Sandvik-Coromant
Артикул: 5722654
В наличии
0 ₽
В корзину
Описание
Характеристики

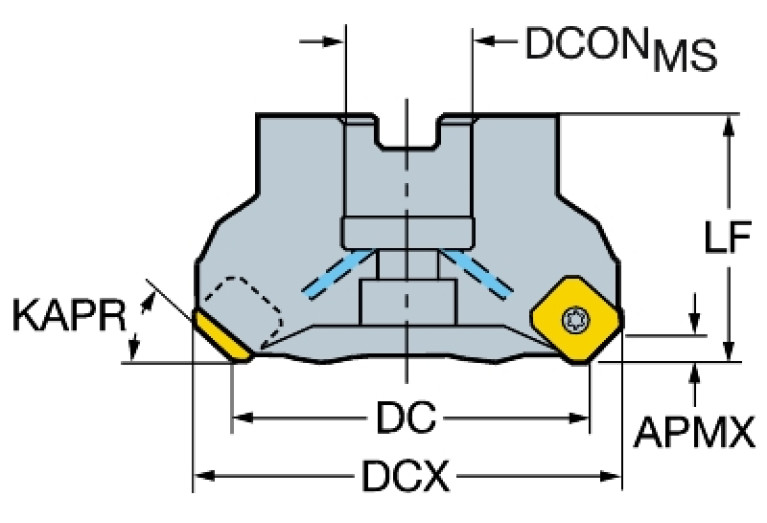

A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
13 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5.05 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
6 mm
CICT (Cutting item count)
20
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
203.2 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
217.08 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SPK25000223
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
20
GAMF (Rake angle radial)
11.168 Degree
GAMP (Rake angle axial)
6.33 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK02S2500$$$$
KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
SPK02S2500$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
2500
LOC-03 (DCONMS Diameter)
63.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK25000223
MIID (Master insert identification)
345R-1305
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
8500 1/min
Working process
FPL - Face milling
WT (Weight of item)
8.22 kg
ZEFF (Face effective cutting edge count)
20
ZEFP (Peripheral effective cutting edge count)
20
