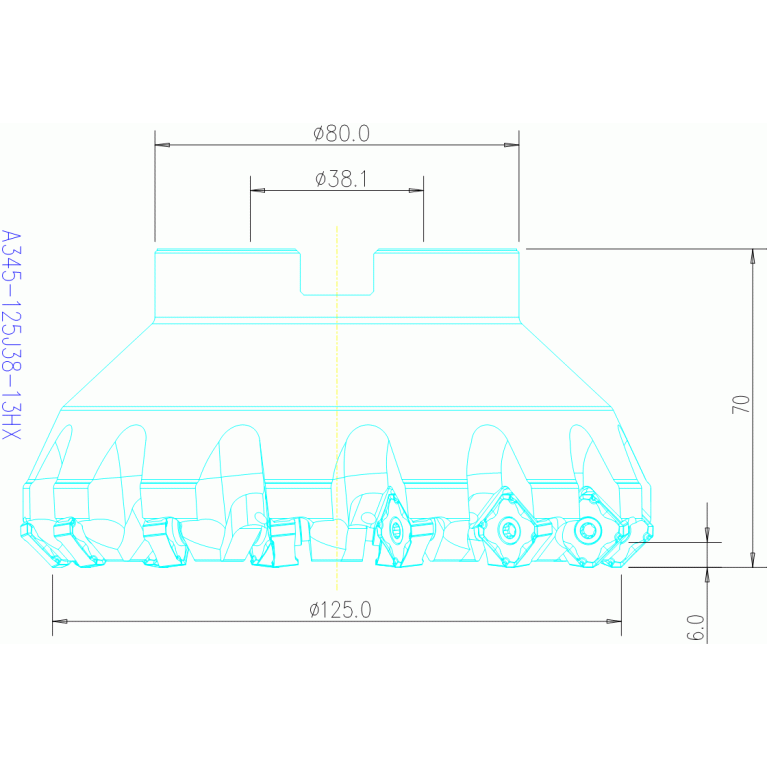

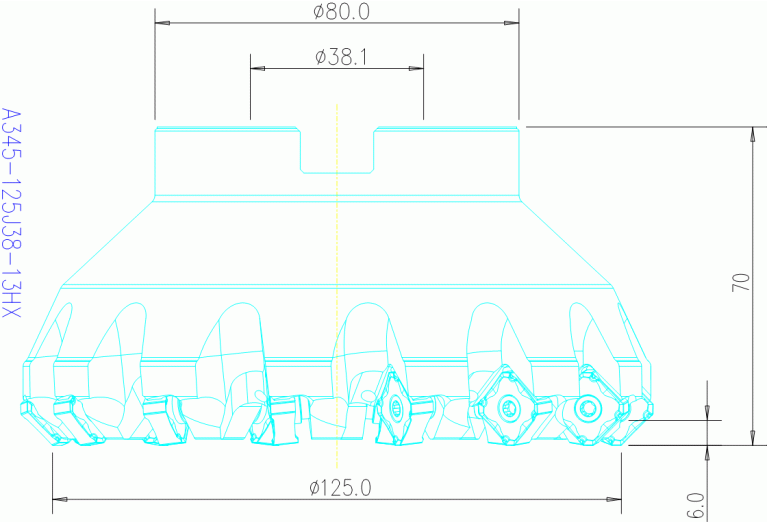

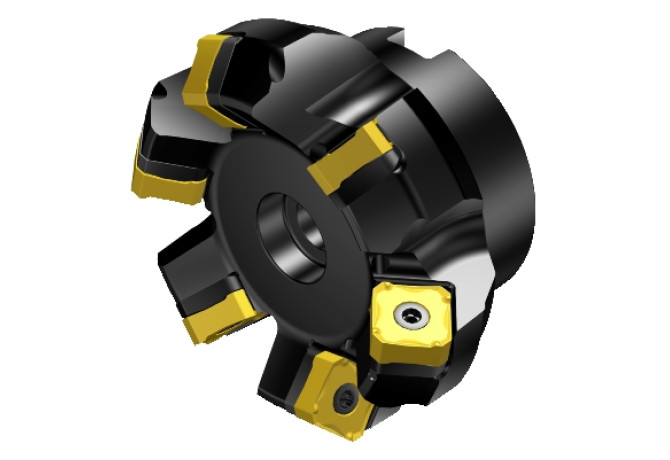

A345-125J38-13HX
A345-125J38-13HX
Артикул:
5722560
В наличии
0 ₽
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
13 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5.05 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
6 mm
CICT (Cutting item count)
14
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
125 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
139.08 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA15002230
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
14
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISISO A (Indicator for ISO cutting plate Pos.A)
ISO
FDA22S1500$$$$

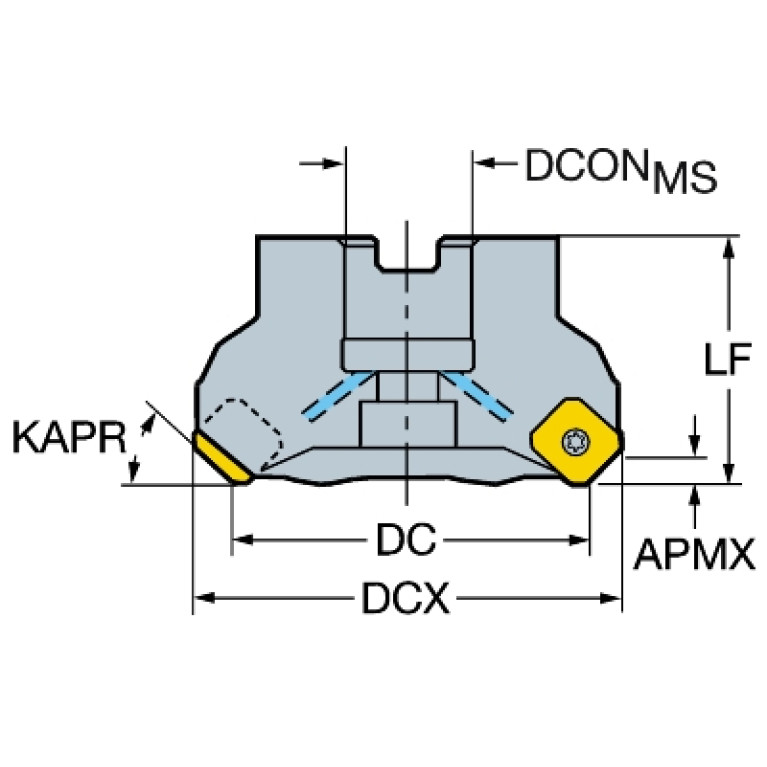

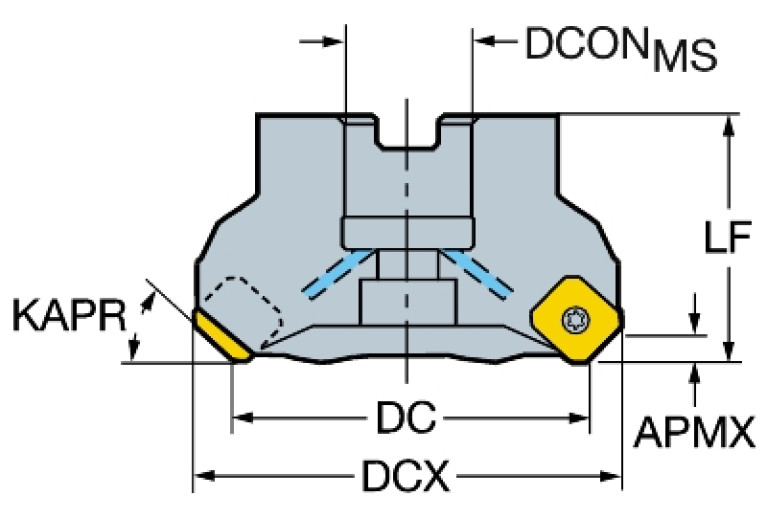

KAPR (Tool cutting edge angle)
45 Degree
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
MIID (Master insert identification)
345R-1305
OAL (Overall length)
70 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
10900 1/min
Working process
FPL - Face milling
WT (Weight of item)
3.78 kg
ZEFF (Face effective cutting edge count)
14
ZEFP (Peripheral effective cutting edge count)
14
