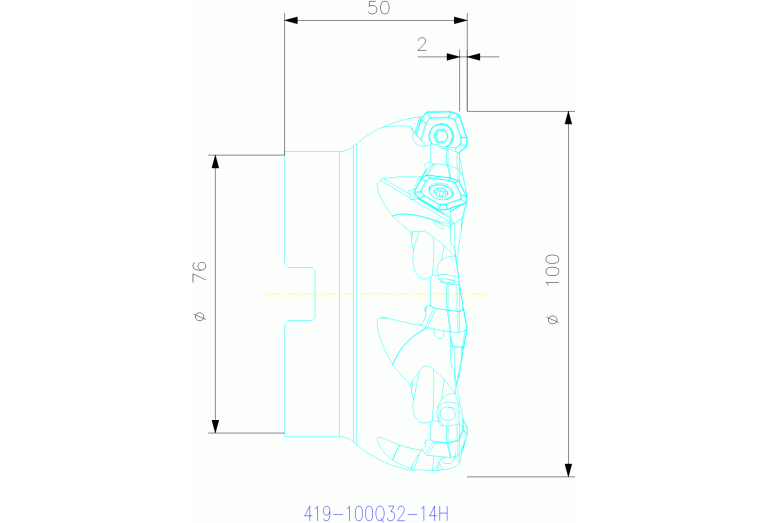

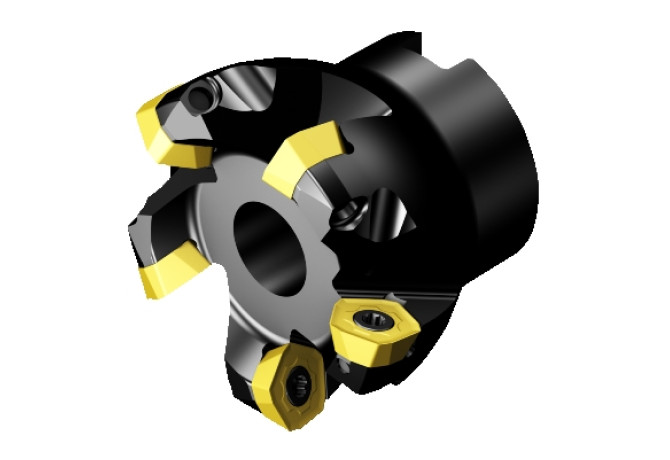

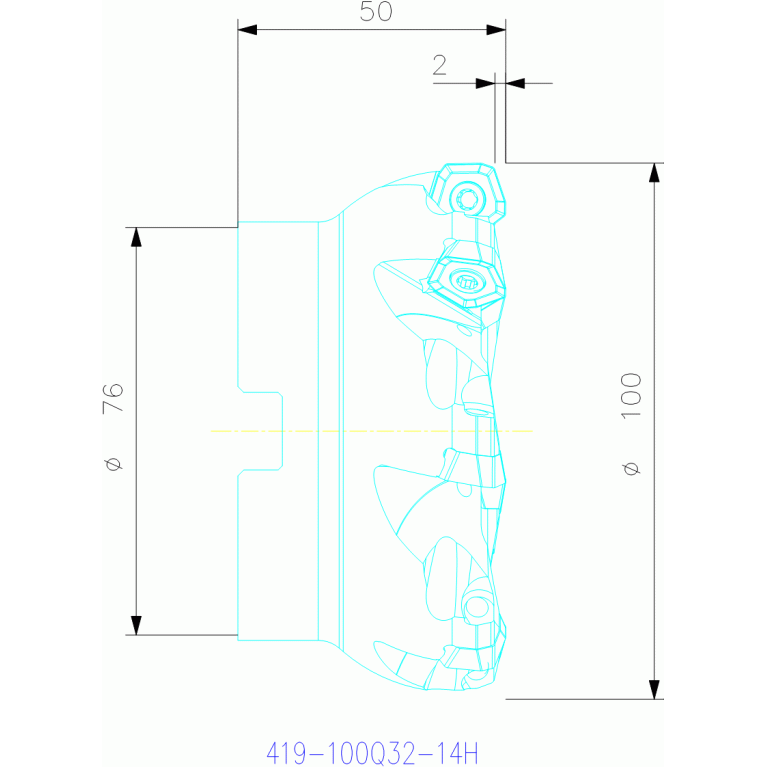

Главная Инструменты 308-01 - Face milling cutter 419-100Q32-14H

419-100Q32-14H

Артикул: 6289899

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

108 Degree

A2A (Clearance angle major Pos. A)

15 Degree

AZ (Plunge depth maximum)

2 mm

B3A (Inscribed circle diameter Pos. A)

13.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.47 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

2 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

85.3 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

100 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA03202210

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

9.148 Degree

GAMP (Rake angle axial)

4.227 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22G3200$$$$

KAPR (Tool cutting edge angle)

19 Degree

LOC-03 ISO

FDA22G3200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202210

MIID (Master insert identification)

419R-1405

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

11400 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

1.484 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
