Главная Инструменты 308-01 - Face milling cutter 360-315Q60-Z12D19

360-315Q60-Z12D19

Артикул: 5758922

В наличии

0 ₽

В корзину

Описание

Характеристики

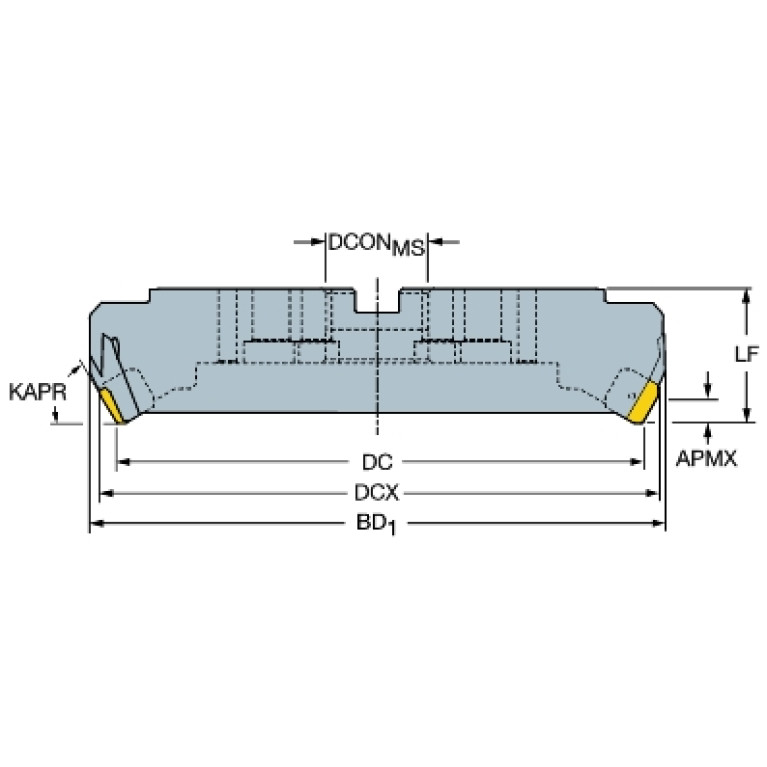

A1A (Cutting edge angle major Pos. A)

90 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

18.94 mm

BD (Body diameter)

341.6 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

13 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

315 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

330 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SPK06000503

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

13.649 Degree

GAMP (Rake angle axial)

-13.122 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SPK05G6000$$$$

KAPR (Tool cutting edge angle)

60 Degree

LOC-03 ISO

SPK05G6000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0600

LOC-03 (DCONMS Diameter)

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK06000503

MIID (Master insert identification)

360R-1906

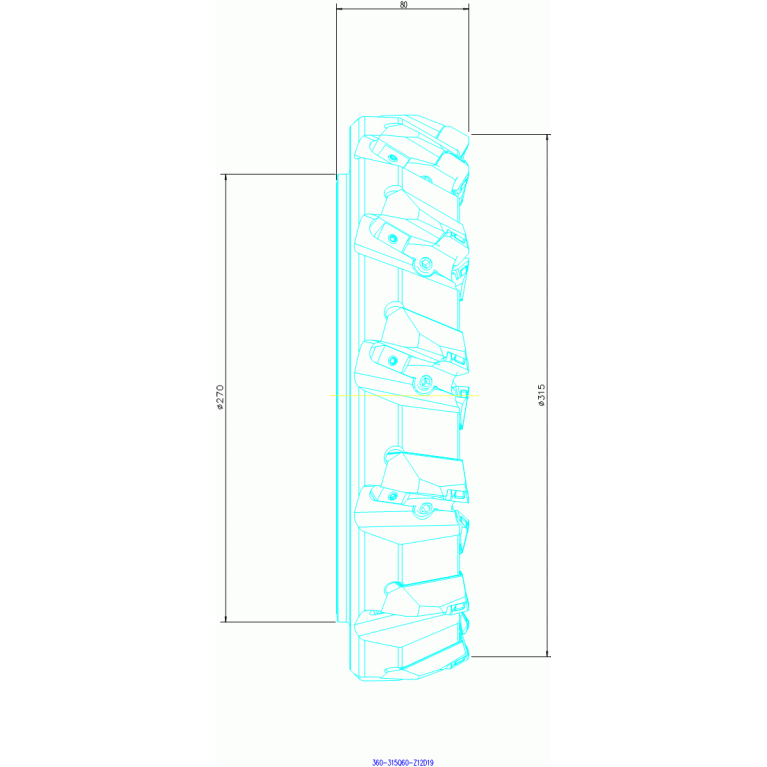

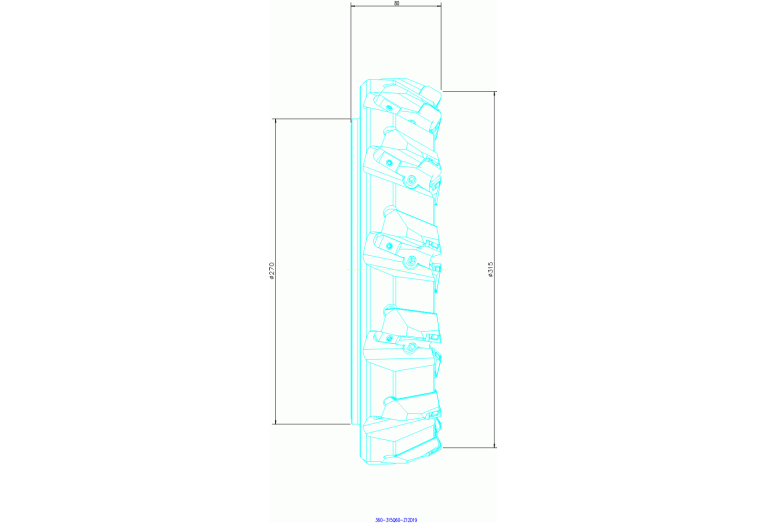

OAL (Overall length)

80 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

405 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

32.627 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
