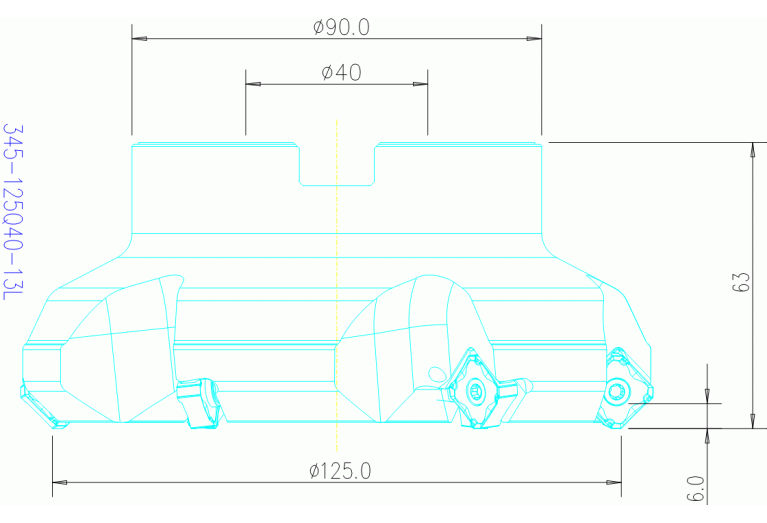

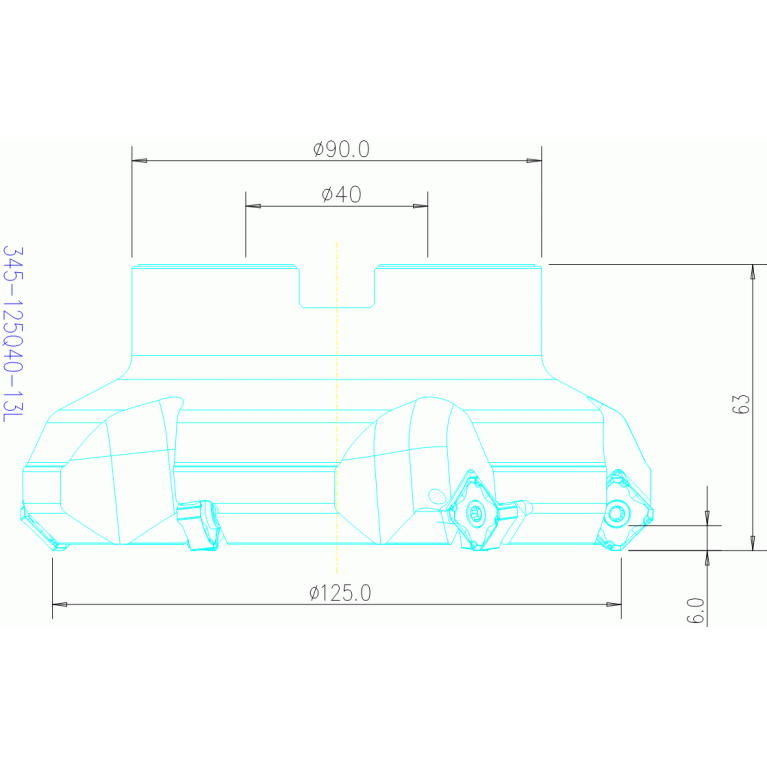

Главная Инструменты 308-01 - Face milling cutter 345-125Q40-13L

345-125Q40-13L

345-125Q40-13L

SV - Sandvik-Coromant

Артикул: 5759470

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A2A (Clearance angle major Pos. A)

0 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

13 mm

BI (Block index)

1

BLDA (Tool style code Position A)

2

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.05 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

6 mm

CICT (Cutting item count)

6

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

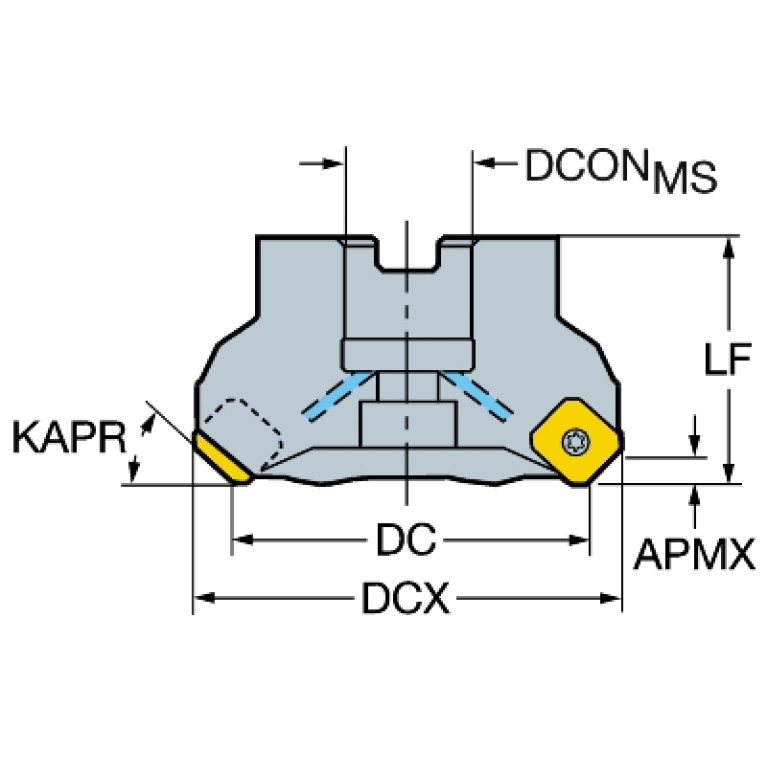

DC (Cutting diameter)

125 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

139.08 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA04002210

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

6

GAMF (Rake angle radial)

11.168 Degree

GAMP (Rake angle axial)

6.33 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22G4000$$$$

KAPR (Tool cutting edge angle)

45 Degree

LOC-03 ISO

FDA22G4000$$$$

LOC-03 (CCFMS Connection code form)

22

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002210

MIID (Master insert identification)

345R-1305

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

10900 1/min

Working process

FPL - Face milling

WT (Weight of item)

3.101 kg

ZEFF (Face effective cutting edge count)

6

ZEFP (Peripheral effective cutting edge count)

6
